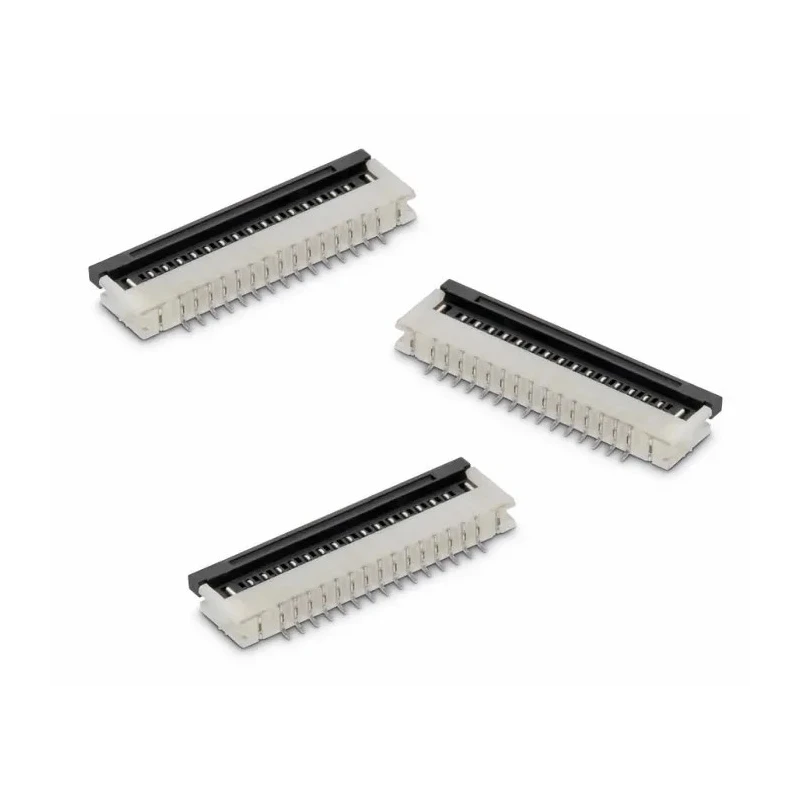

Wurth Elektronik WR-FPC 1 mm Pitch 30 Way Horizontal Male FPC Connector ZIF Bottom Contact 686130148922

Wurth Elektronik 686130148922 WR-FPC 1 mm Pitch 30 Way Horizontal Male FPC Connector ZIF Bottom Contact is a high-quality FPC connector engineered for demanding electronic component interconnections in industrial, manufacturing, and consumer electronics applications.

This connector features 30 contacts arranged in a single row with a 1 mm pitch, designed to provide secure data and power transmission in miniature electronic assemblies. The contacts are crafted from phosphor bronze for excellent electrical conductivity and durability, plated with tin over nickel to prevent corrosion.

The zero insertion force (ZIF) bottom contact termination type enables effortless cable insertion without damage to the flexible printed circuit, reducing wear and improving connection longevity. The hinged flip-lock actuator mechanism firmly locks the flexible cable in place, enhancing system reliability.

Surface mount technology (SMT) allows this connector to be mounted on PCB surfaces with horizontal orientation, supporting compact and space-efficient designs commonly required in portable devices, displays, and keyboards. The durable polyamide housing offers mechanical stability and electrical insulation, suitable for rigorous operating conditions.

Rated for a current capacity of 1 ampere and voltage of 100 volts AC, this connector supports standard electronic power and signal requirements. It is engineered to perform across a broad temperature range from -40°C to 105°C, ensuring stable operation even in harsh environments.

This FPC connector features 30 contacts with a 1 mm pitch for fine-pitch applications. Constructed with phosphor bronze contacts and tin over nickel plating for reliable conductivity. Equipped with a zero insertion force (ZIF) bottom contact termination ensuring easy cable insertion and secure connection.

Designed with a hinged flip-lock actuator for locking the connection firmly in place. Supports up to 1A current and voltage rating of 100 volts AC. Surface mount type with horizontal orientation suitable for compact PCB layouts.

Housing made of durable polyamide material providing mechanical strength and insulating properties. Operates reliably in temperatures ranging from -40°C to 105°C for various industrial environments. Compact design with a single row of contacts optimized for space-saving assembly.

This product is ideal for use in electronic manufacturing, assembly of consumer electronics, instrumentation, and other applications requiring reliable flexible printed circuit connections.
