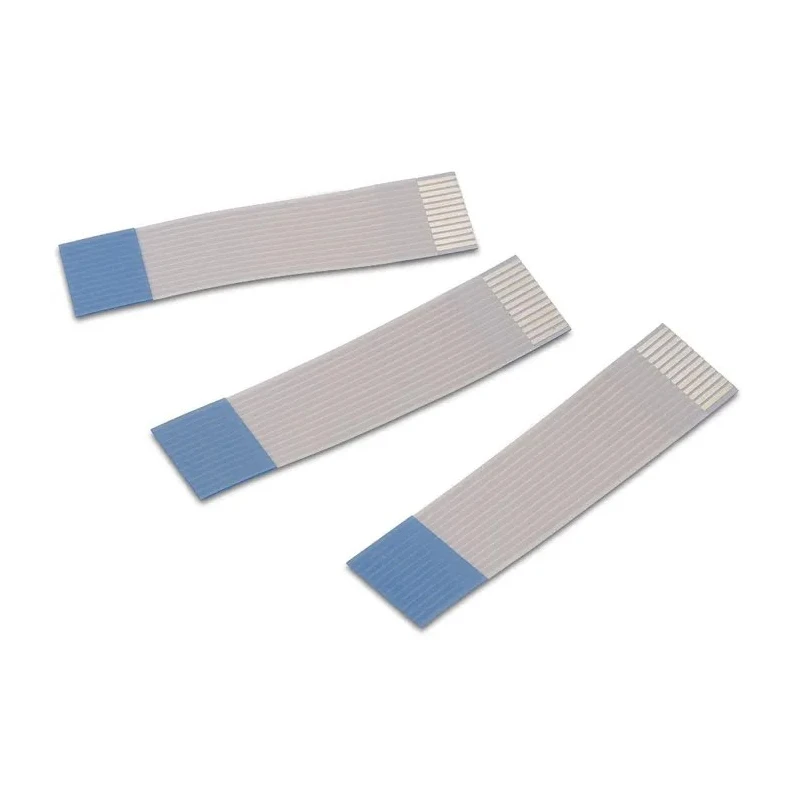

Wurth Elektronik WR-FFC Series Ribbon Cable 24 Conductors 1 mm Pitch 152 mm Length 686724152001

Name: Wurth Elektronik WR-FFC Series Ribbon Cable 24 Conductors 1 mm Pitch 152 mm Length 686724152001
Brand: Wurth Elektronik
SKU: 140175
Price: 3.41 USD
Availability: InStock



Category Ribbon Cable Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik
Cable Length	152mm
Series	WR-FFC
Conductor Material	Copper
Jacket Material	Polyphenylene Ether
Pitch	1mm
Standards/Approvals	RoHS Compliant
Jacket Colour	White
Number of Conductors	24

Key Features

This ribbon cable features a white Polyphenylene Ether jacket for durability and insulation.
The copper conductors provide efficient electrical conductivity.
It complies with RoHS standards, ensuring environmental safety.
The cable is designed for Type 2 FFC configurations with contacts on opposite sides.
Blue PET support tape at both ends allows easy installation with ZIF or LIF connectors.
Highly flexible, it withstands over 20 flex cycles of 180 degrees, ideal for compact and complex applications.
Its 152 mm length and 24 conductors allow use in diverse electronic assemblies and display connections.
Suitable for use in LCD appliances, plasma displays, printers, scanners, DVD players, and notebook PCs.

Product Description

Wurth Elektronik 686724152001 WR-FFC Series Ribbon Cable is a high-quality 24-conductor flat flexible cable (FFC) with a 1 mm pitch and 152 mm length. It is designed to provide secure, lightweight, and low-profile board-to-board electrical connections ideal for high-density electronics and space-saving requirements.

Constructed with copper conductors and protected by a white Polyphenylene Ether jacket, this cable ensures enhanced durability and efficient signal transmission. The cable meets RoHS compliance standards confirming its environmental compliance.

This Type 2 FFC cable configuration features contacts on opposite sides at each cable end, with blue PET support tape to facilitate easy installation with Zero Insertion Force (ZIF) or Low Insertion Force (LIF) connectors. Its high flexibility rating allows for over 20 cycles of 180° bending, making it suitable for use in compact or hard-to-reach areas of complex electronic assemblies.

Standard cable lengths range from 50 mm to 200 mm with variations in circuit numbers; this product offers 24 conductors and a 152 mm cable length, providing versatility across different electronic applications.

The WR-FFC ribbon cables serve various industrial and consumer electronics applications, including electrical connections between printed circuit boards and display panels. Typical uses include LCD appliances, plasma displays, printers, scanners, DVD players, and notebook PCs.

This cable provides lightweight and space-saving connections with excellent flexibility. Its blue PET tape support helps facilitate ZIF and LIF connections for secure mating. Construction with Polyphenylene Ether jacket material offers chemical and thermal resistance.

Fully RoHS compliant, ensuring safety in manufacturing and disposal. Ideal for industrial, laboratory, electronics manufacturing, and commercial assembly uses. Explore the high-quality Wurth Elektronik WR-FFC Series Ribbon Cables with model number 686724152001 at EnvMart for your wiring and connectivity needs.
