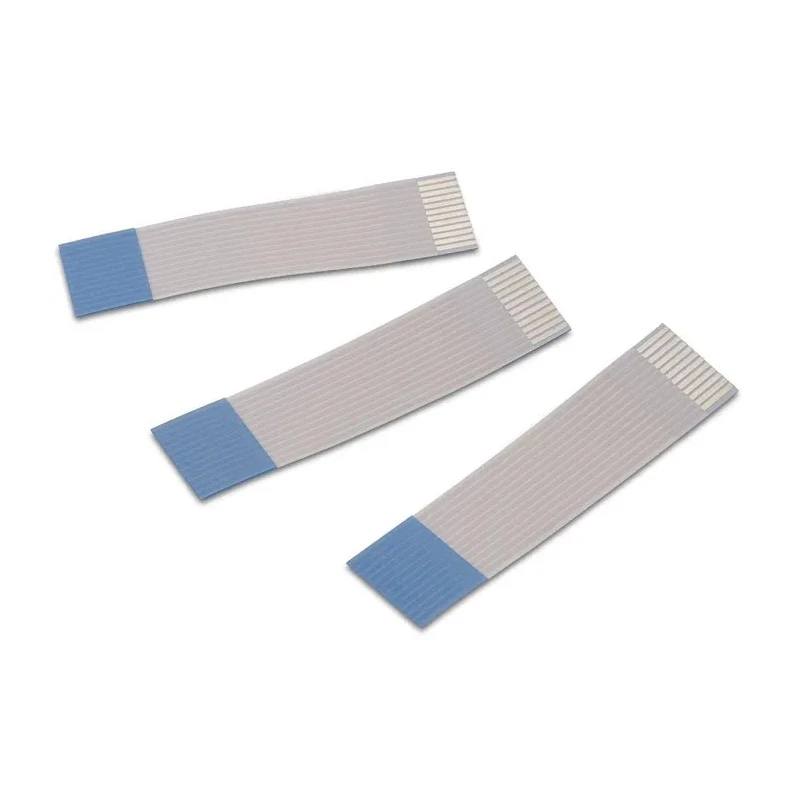

Wurth Elektronik WR-FFC Series Ribbon Cable 1.00 mm Pitch, 11 Conductors, 152 mm Length 686711152001
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Cable Length | 152mm |
| Series | WR-FFC |
| Conductor Material | Copper |
| Jacket Material | Polyphenylene Ether |
| Pitch | 1mm |
| Standards/Approvals | RoHS Compliant |
| Jacket Colour | White |
| Number of Conductors | 11 |
Key Features
- Features a 1.00 mm pitch with 11 conductors made of copper.
- Constructed with a white polyphenylene ether jacket for durability.
- RoHS compliant, ensuring environmental safety and compliance.
- Includes blue PET support tapes at both ends to facilitate secure ZIF and LIF connections.
- Highly flexible, capable of flexing over 20 cycles at 180 degrees.
- Ideal for high-density and low-profile electrical connections between PCBs and display boards.
- Suitable for applications in LCD appliances, plasma displays, printers, scanners, DVD players, and notebook PCs.
Product Description
Wurth Elektronik 686711152001 WR-FFC Series Ribbon Cable is a Type 2 Flat Flexible Cable (FFC) with a pitch of 1.00 mm, featuring 11 copper conductors protected by a white polyphenylene ether jacket. This 152 mm long ribbon cable is engineered to offer a reliable, lightweight, and low-profile connection solution for complex, high-density board-to-board configurations.
The WR-FFC series cables are highly flexible, passing a flex test of over 20 cycles at 180 degrees, making them suitable for dynamic and compact environments. The cable ends are reinforced with blue PET support tapes designed to facilitate easy ZIF or LIF connections when mated with board mount FPC connectors. The unique placement of contacts on opposite sides in Type 2 configuration enhances versatility in electrical connections.
This ribbon cable is RoHS compliant, ensuring it meets strict environmental standards. Its robust construction and flexibility allow it to be effectively used in applications such as LCD appliances, plasma display panels, printers, scanners, DVD players, and notebook PCs, providing space-saving and cost-efficient solutions.
The simple assembly process and variety of available lengths and circuits from 50 mm up to 200 mm, with up to 50 circuits, make these cables adaptable to diverse industrial and commercial needs.
1.00 mm pitch with 11 copper conductors offers reliable electrical performance. Durable white polyphenylene ether jacket provides environmental protection. Flexible design supports over 20 flex cycles at 180 degrees without failure.
Blue PET support tape ensures secure and easy connector mating. Complies with RoHS standards for environmental safety. Ideal for compact and difficult to reach applications requiring board-to-board interconnections. Widely used in electronics and electrical industries including display technologies and consumer electronics.
Discover more Wurth Elektronik products and find the right Ribbon Cable solutions for your electronic and electrical design challenges at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this ribbon cable is 1.00 mm.
This model features 11 conductors made of copper.
The cable length is 152 mm.
The jacket is constructed from white polyphenylene ether.
Yes, this ribbon cable is RoHS compliant, ensuring it meets environmental safety standards.
It includes blue PET support tapes at both ends to facilitate secure ZIF and LIF connections.
This model is highly flexible and can flex over 20 cycles at 180 degrees without failure.
It is suitable for applications in LCD appliances, plasma displays, printers, scanners, DVD players, and notebook PCs.
The country of origin for this ribbon cable is China.
The Type 2 configuration features contacts placed on opposite sides, enhancing versatility in electrical connections.
The cable has a length of 152 mm and a pitch of 1.00 mm, with 11 conductors.
The WR-FFC series offers lengths from 50 mm up to 200 mm.
