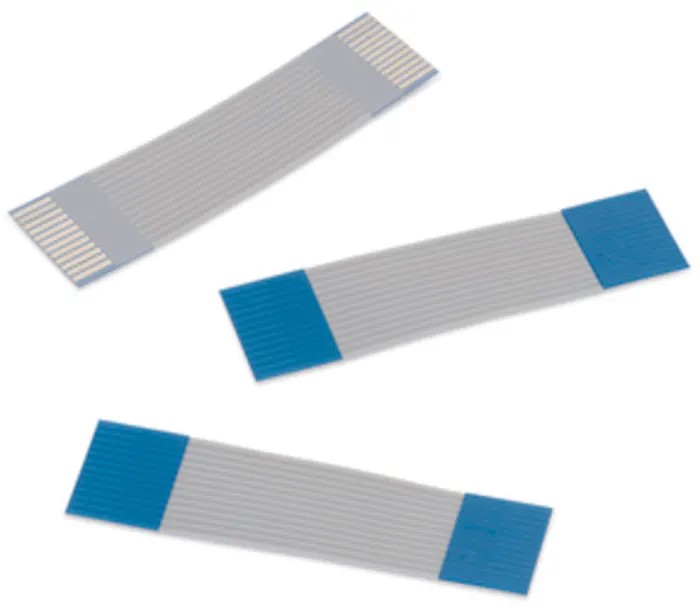

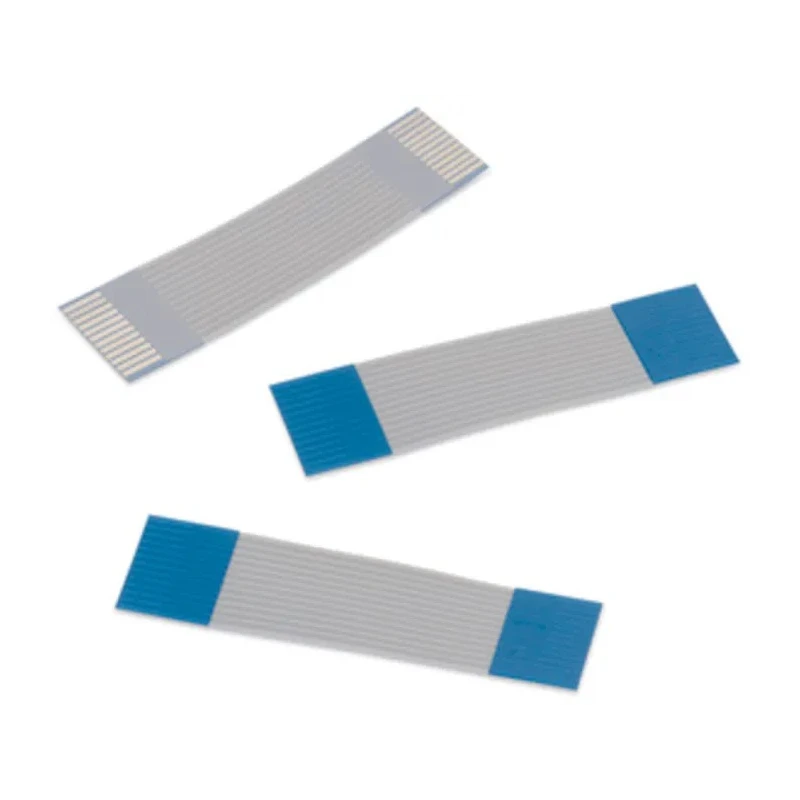

Wurth Elektronik WR-FFC Series Ribbon Cable 26 Conductors 1 mm Pitch 152 mm Length 686626152001
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Cable Length | 152mm |
| Series | WR-FFC |
| Conductor Material | Copper |
| Jacket Material | Polyphenylene Ether |
| Pitch | 1mm |
| Standards/Approvals | RoHS Compliant |
| Jacket Colour | White |
| Number of Conductors | 26 |
Key Features
- Constructed with copper conductors for excellent electrical conductivity.
- Jacket made of white polyphenylene ether for durability and insulation.
- Complies with RoHS standards ensuring environmental safety.
- Features a flexible flat cable (FFC) design ideal for space-saving applications.
- Equipped with blue PET support tape to facilitate ZIF and LIF connections.
- Highly flexible, tested for over 20 flex cycles at 180° to endure demanding usage.
- Suitable for complex and difficult to access electronic assemblies.
- Commonly used in LCD appliances, printers, scanners, DVD players, and notebook PCs.
Product Description
Wurth Elektronik 686626152001 WR-FFC Series Ribbon Cable is a Type 1 flat flexible cable designed with a 1 mm pitch to support 26 conductors over a length of 152 mm. This cable ensures reliable, low-profile, and space-saving board-to-board connectivity in diverse industrial and commercial electronics applications.
The cable features copper conductors coated with a durable white polyphenylene ether jacket, enhancing insulation and mechanical protection. It complies with RoHS regulations, reinforcing it as an environmentally responsible choice.
Its FFC design supports high-density connections while maintaining excellent flexibility, demonstrated by successful flexing tests exceeding 20 cycles at 180 degrees. The blue PET support tape at both cable ends aids in making zero insertion force (ZIF) or low insertion force (LIF) connections, simplifying assembly with compatible connectors.
These attributes render the WR-FFC cable ideal for complex board-to-board connections in compact and hard-to-reach electronic assemblies. It finds extensive usage across various industries, including electronics manufacturing for LCD displays, printers, scanners, DVD players, and notebook computers.
Copper conductor material guarantees optimal electrical performance. Polyphenylene ether jacket material provides robust insulation and protection. Compliant with RoHS standards. 1 mm pitch ribbon cable with 26 conductors for high density.
Flexible design with a flexing endurance of over 20 cycles at 180°. Blue PET tape supports ZIF and LIF connection types. 152 mm cable length suitable for compact installations. Low profile and lightweight for space-saving applications.
Facilitates easy and secure installation in electronic devices.
Choose Wurth Elektronik WR-FFC Series Ribbon Cable 686626152001 for reliable, flexible, and environmentally compliant board-to-board cable connections in your electronic assembly projects. Explore more precision cables and connectors in our extensive EnvMart electronics catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The WR-FFC ribbon cable has a length of 152 mm.
This model features 26 conductors, allowing for high-density connections.
The pitch of this ribbon cable is 1 mm, which supports compact and efficient connectivity.
The cable is constructed with copper conductors and a jacket made of white polyphenylene ether for insulation and protection.
Yes, it complies with RoHS standards, ensuring it meets environmental safety requirements.
It supports zero insertion force (ZIF) and low insertion force (LIF) connections, facilitated by the blue PET support tape at both ends.
This model is highly flexible and has been tested for over 20 flex cycles at 180 degrees, making it suitable for demanding applications.
It is commonly used in electronic assemblies such as LCD appliances, printers, scanners, DVD players, and notebook PCs.
The jacket of the WR-FFC ribbon cable is white, providing a clean aesthetic for electronic assemblies.
This cable is manufactured in China.
The flexible flat cable (FFC) design provides space-saving benefits and supports reliable board-to-board connectivity in compact installations.
The copper conductor material guarantees optimal electrical performance for the cable, ensuring efficient signal transmission.
