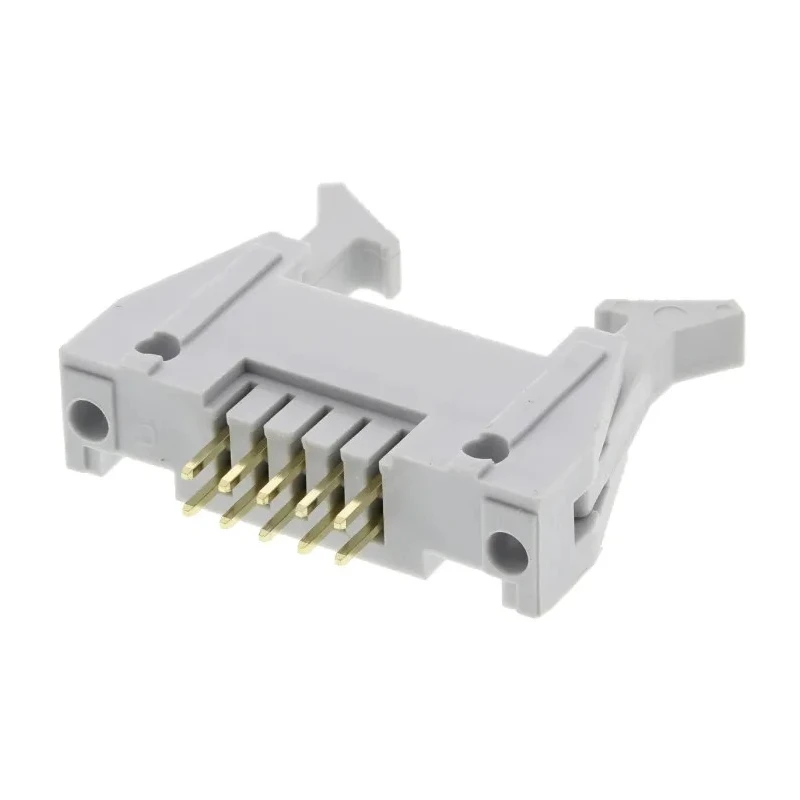

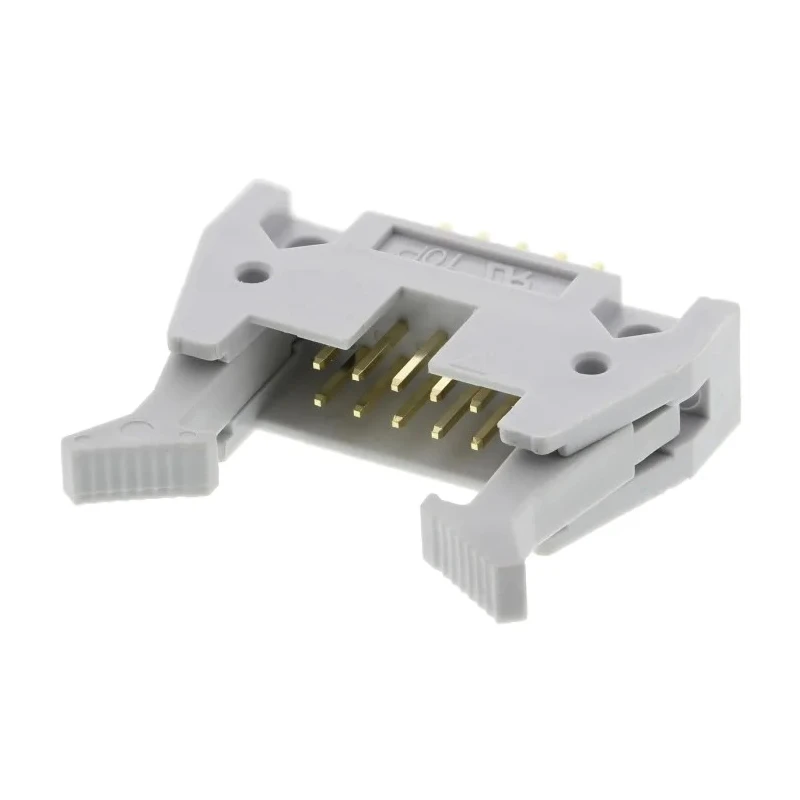

RS PRO Straight Through Hole PCB Header 10 Contacts 2.54 mm Pitch Shrouded 471-020
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Orientation | Straight |
| Current | 1A |
| Model | 471-020 |
| Mount Type | Through Hole |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Brass |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -45°C |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| RS PRO 10-Way IDC Connector Female for Cable, 2 RowBrand | RS PRO |
| Hirose 10-Way IDC Connector Plug Through Hole Mount, 2-RowBrand | Hirose |
Key Features
- This PCB header has a shrouded design with long ejection latches on either side for secure connections.
- It features brass contacts plated with gold to ensure optimal conductivity and corrosion resistance.
- The housing is made from polyethylene terephthalate, offering durability and UL94V rated flame resistance.
- The connector supports a current rating of 1 amp and operates in a temperature range from -45°C to 105°C.
- Its straight orientation and solder termination type enable easy integration into PCB assemblies.
- Ideal for uses in prototype development, medical instruments, consumer electronics, data storage, and industrial automation.
- Manufactured in Taiwan, Province Of China, ensuring consistent quality.
Product Description
RS PRO 471-020 Straight Through Hole PCB Header is a precision electronic component featuring 10 gold-plated male contacts with a 2.54 mm pitch for consistent signal transmission. Designed for through-hole mounting, its shrouded polyethylene terephthalate housing provides excellent mechanical strength and electrical insulation. Ideal for assembly in various industrial applications including prototype development, medical equipment, consumer electronics, data storage devices, and industrial automation systems.
This header ensures secure and reliable PCB connections thanks to its straight orientation, gold flash plated brass contacts, and solder termination type. It can withstand operating temperatures ranging from -45°C to 105°C, suitable for harsh environments. The shrouded design with ejection latches offers protection and easy connector mating and disengagement.
RS PRO is a trusted brand known for delivering high-quality components tested to meet stringent standards, although this specific product does not carry formal approvals. Its robust design supports current loads up to 1 amp, making it suitable for various signal and low power applications.
Shrouded 10-contact PCB header with 2.54 mm pitch. Brass contacts with gold plating for enhanced conductivity. Durable polyethylene terephthalate housing with flame retardant rating UL94V. Wide operating temperature range from -45°C to 105°C for versatility.
Solder termination ensures stable mounting and electrical connection. Supports applications in medical, consumer electronics, and industrial automation. Manufactured in Taiwan, Province Of China.
Ensure your electronics manufacturing and prototyping benefit from the consistent quality and durability of RS PRO PCB Headers. Explore related RS PRO components and accessories at EnvMart for comprehensive electronic assembly solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this PCB header is 2.54 mm, which is standard for many electronic applications.
This model features 10 contacts, which are male and gold-plated for enhanced conductivity.
The maximum operating temperature for this PCB header is 105°C, allowing it to function in a wide range of environments.
It uses a solder termination type, ensuring stable mounting and electrical connection in PCB assemblies.
The housing is made from polyethylene terephthalate, which provides good mechanical strength and electrical insulation.
The current rating of this PCB header is 1 amp, making it suitable for various signal and low power applications.
This model has a straight orientation, which facilitates easy integration into PCB assemblies.
Yes, this header is shrouded, which provides protection and aids in secure connections with ejection latches.
The minimum operating temperature is -45°C, allowing it to operate in colder environments.
This product is manufactured in Taiwan, Province Of China, ensuring consistent quality.
It is suitable for applications in prototype development, medical instruments, consumer electronics, data storage, and industrial automation.
The contacts are made of brass and are gold-plated to ensure optimal conductivity and corrosion resistance.
