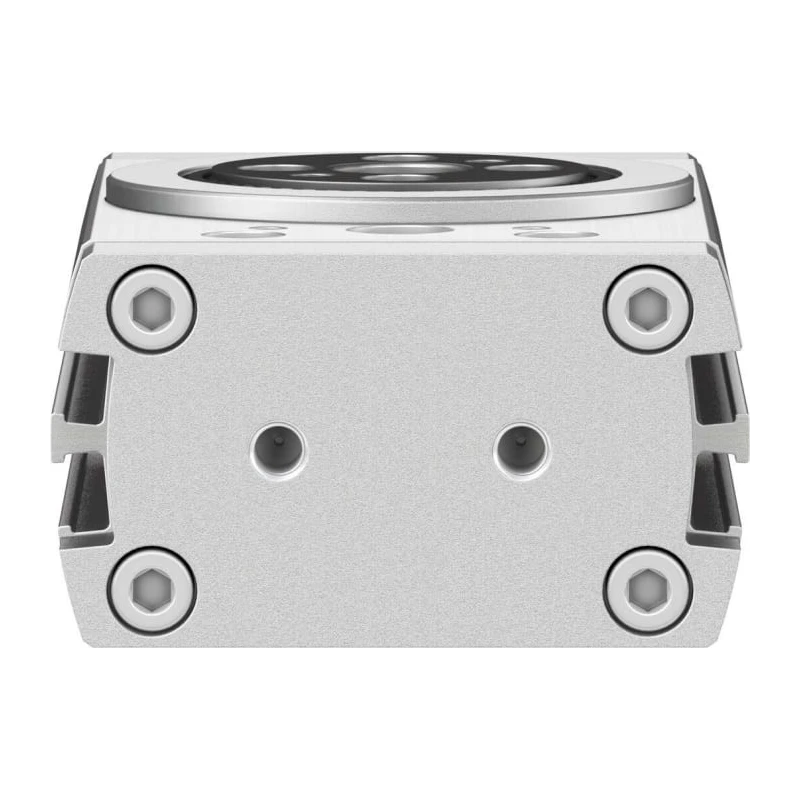

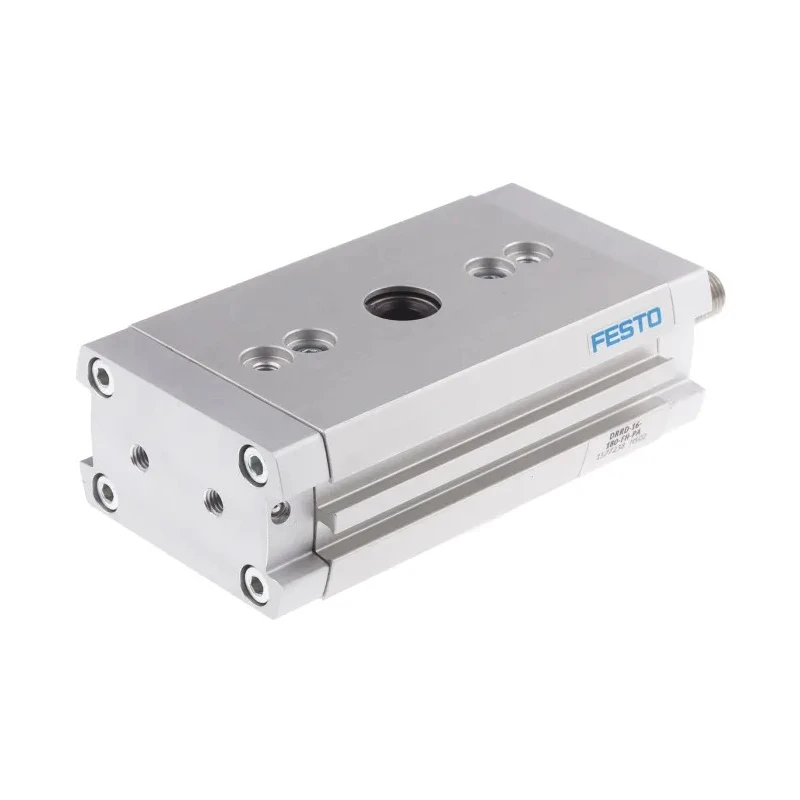

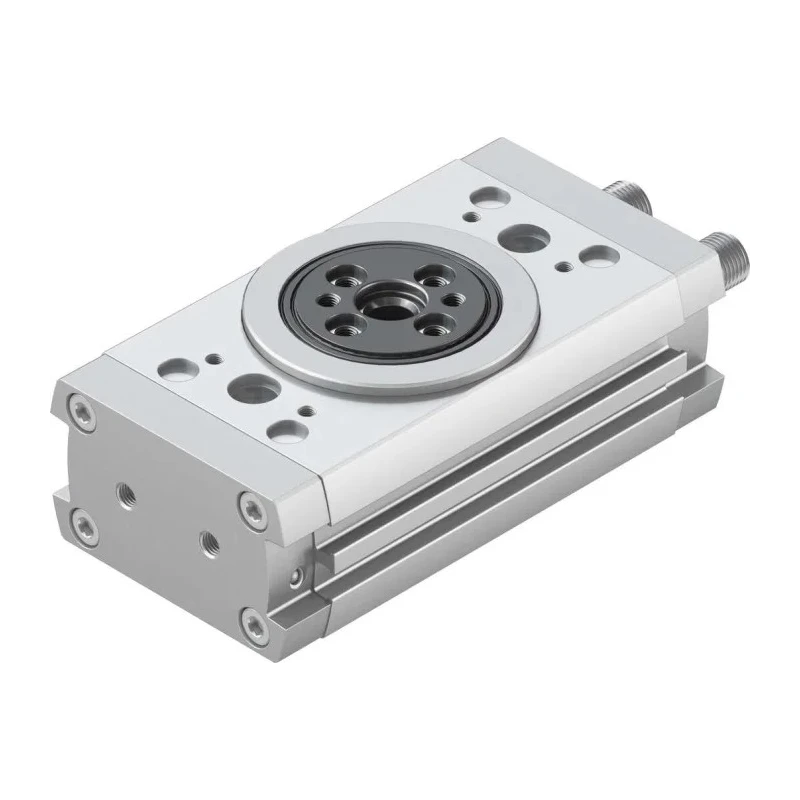

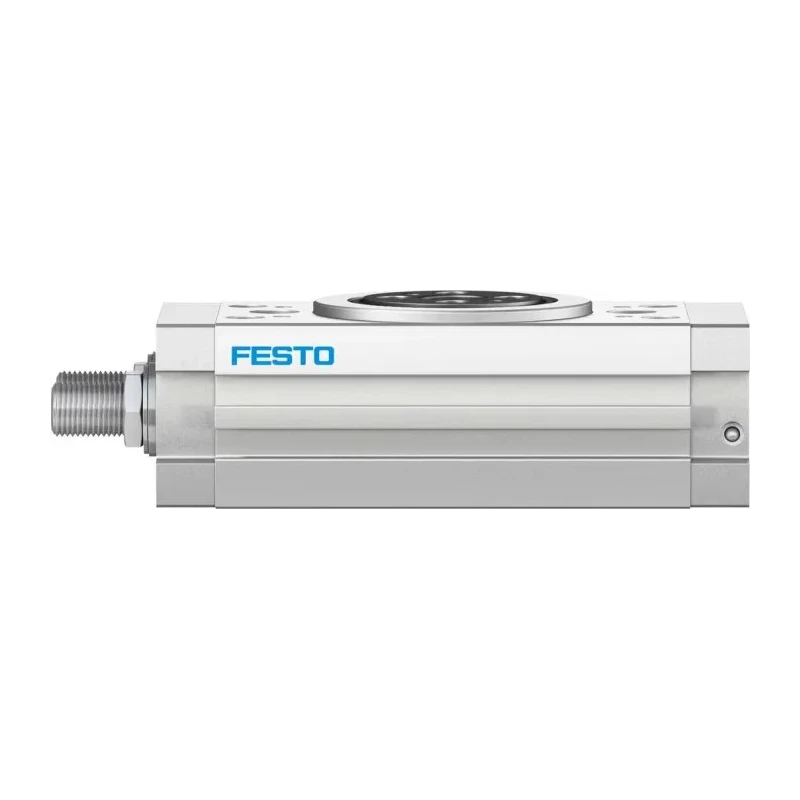

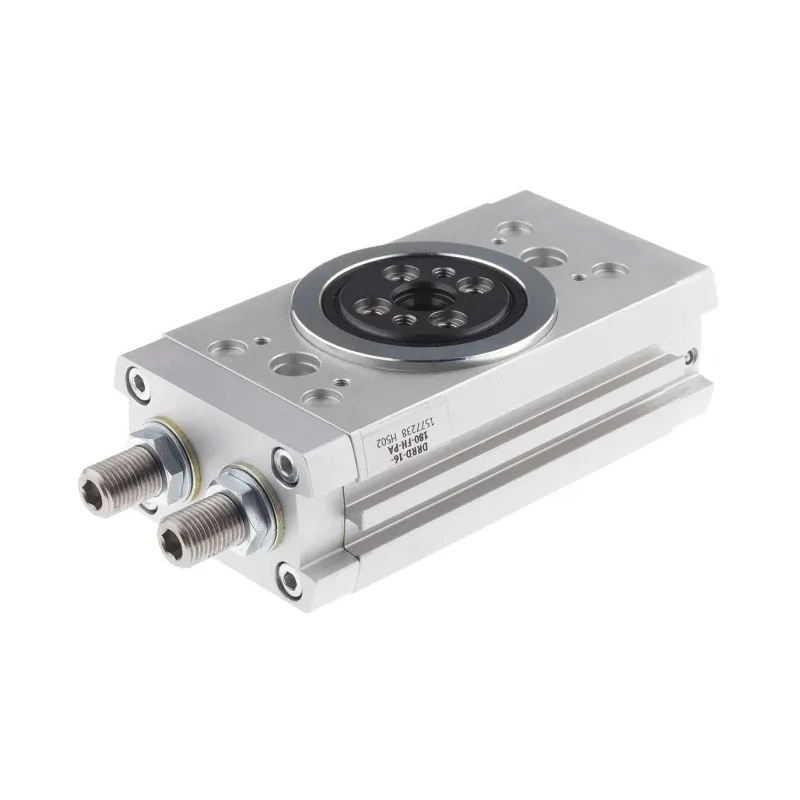

Festo Pneumatic Rotary Actuator Double Acting 8 bar Pressure 63mm Bore 180° Rotation DRRD-16-180-FH-PA

Festo DRRD-16-180-FH-PA pneumatic rotary actuator is a high-precision, double acting rotary actuator designed for industrial applications requiring reliable and repeatable motion control. With a bore diameter of 63mm and a maximum operating pressure of 8 bar, this actuator provides robust torque performance of approximately 1.59 Nm and a swivel angle of 180°, suitable for various automation tasks including controlling butterfly valves, ball valves, and air dampers.

The DRRD series actuator utilizes a rack and pinion mechanism which delivers low backlash and high bearing load capacity up to 1500N, enabling its use in heavy-duty manufacturing equipment and factory automation settings. Its elastic cushioning reduces impact damage, thereby extending service life and minimizing maintenance requirements.

Operating reliably within a temperature range of -10°C to +60°C, the unit conforms to RoHS standards and features an IP65 rating providing protection against dust ingress and water jets, making it suitable for harsh or contaminated industrial environments.

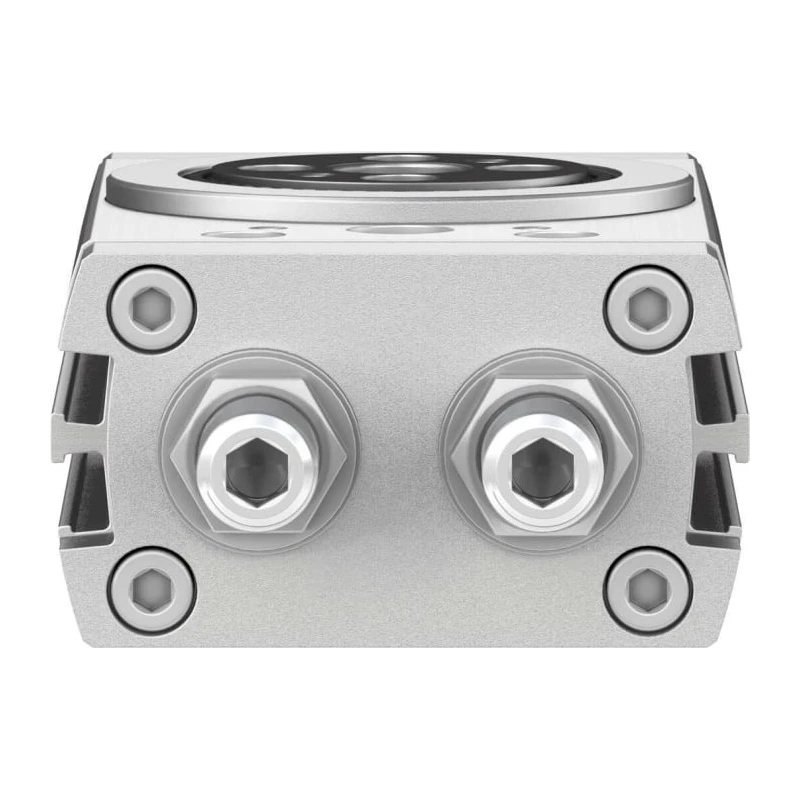

The actuator’s design includes standard M5 female port connections for seamless integration into existing pneumatic systems, and the through-hole mounting style facilitates easy installation. Its high positional accuracy, with a repeatability of ±0.05°, ensures consistent and precise actuator positioning in systems requiring exact control.

Typical applications include manufacturing machinery, packaging equipment, and factory automation systems where controlled rotary motion is critical. Users may also combine this actuator with Festo’s SME or SMT series proximity sensors to enhance system protection and automation capabilities.

Equipped with an elastic cushioning system for impact resistance and extended durability. Double acting piston with 180° rotation for versatile application scenarios. Compact design facilitates easy system integration and mounting.

High bearing load capacity supports heavy-duty operational demands. Standard female M5 ports enable compatibility with a range of pneumatic hardware. IP65 rated for protection against dust and water jets in contaminated environments.

Operates over a broad temperature range to suit various industrial conditions. RoHS compliant ensuring environmentally responsible manufacturing.
