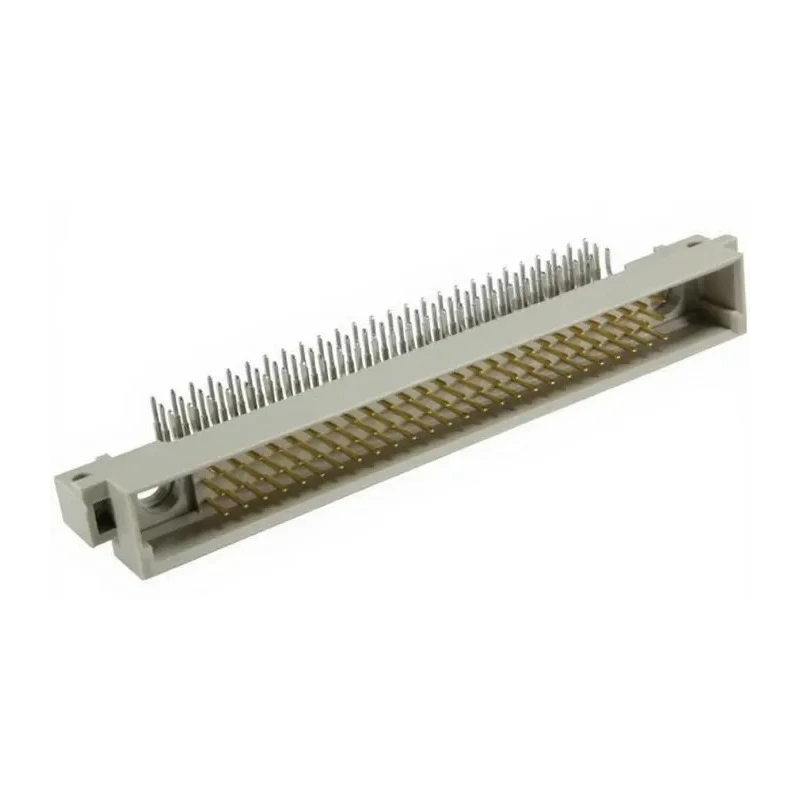

HARTING DIN 41612 80 Way 2.54 mm Pitch Through Hole Connector Type C/2 Solder Termination Class C2 3 Row Male 09031786901

Free Delivery in India | Lowest Global Shipping Charges

HARTING DIN 41612 80 Way 2.54 mm Pitch Through Hole Connector Type C/2 Solder Termination Class C2 3 Row Male 09031786901

Name: HARTING DIN 41612 80 Way 2.54 mm Pitch Through Hole Connector Type C/2 Solder Termination Class C2 3 Row Male 09031786901
Brand: HARTING
SKU: 139637
Price: 20.22 USD
Availability: InStock



Category DIN 41612 Connectors Brand HARTING Condition New

Specifications

Country of Origin	Germany
Brand	HARTING
Orientation	Right Angle
Current	2A
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	DIN 41612
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	C/2
Minimum Operating Temperature	-55°C
Number of Rows	3
Pitch	2.54mm
Contact Plating	Gold over Nickel
Number of Contacts	80
Contact Gender	Male
Connector Gender	Male
Maximum Contact Resistance	20mΩ
Row Loading	A/B/C

Key Features

80 contacts support a current rating of 2 ampere for robust performance.
2.54 mm pitch spacing with three-row A/B/C row loading configuration.
Gold over nickel plated copper alloy contacts ensure low resistance and corrosion protection.
The connector features through-hole mount type with solder termination.
Constructed with polybutylene terephthalate housing material for durability.
Operational temperature range from -55°C to 125°C suits harsh industrial environments.
Right angle male connector design enables compact PCB layouts and backplane connections.
Meets DIN 41612 standard, ideal for telecommunications, data communications, measurement, and control systems.

Product Description

HARTING 09031786901 DIN 41612 80 Way 2.54 mm Pitch Through Hole Connector Type C/2, Class C2, 3 Row Male Right Angle is designed for reliable and efficient industrial and electronic interconnections.

This connector features 80 gold-over-nickel plated copper alloy contacts arranged in a 3-row A/B/C loading with 2.54 mm pitch spacing to provide consistent electrical performance. The through-hole mount type with solder termination facilitates stable PCB soldering and mechanical strength.

Constructed with durable polybutylene terephthalate housing, it withstands operating temperatures from -55°C up to 125°C, suitable for demanding environments.

The right angle male orientation supports compact assembly and is compatible with RS 19in sub-rack systems and other 19in Eurocard racking frameworks. Typical applications include telecommunications, data communication, measurement, and control systems requiring IEC 60603-2 performance level 2 compliance.

This DIN 41612 M connector series provides a tested, modular solution ensuring ease of integration in industrial designs and maintenance efficiency. 80 contacts supporting 2A current. Gold over nickel plated copper alloy contacts.

Class C2 contact quality and reliability. Polybutylene terephthalate housing for durability. Wide operating temperature range from -55°C to 125°C. Through hole solder termination mount style. Right angle male connector orientation.

Suitable for telecommunications and control system applications. Manufactured in Germany ensuring quality standards. Compatible with RS 19in sub-rack systems and Eurocard racks. Explore more electronic components and connectors in the DIN 41612 category at EnvMart for comprehensive industrial and manufacturing solutions.
