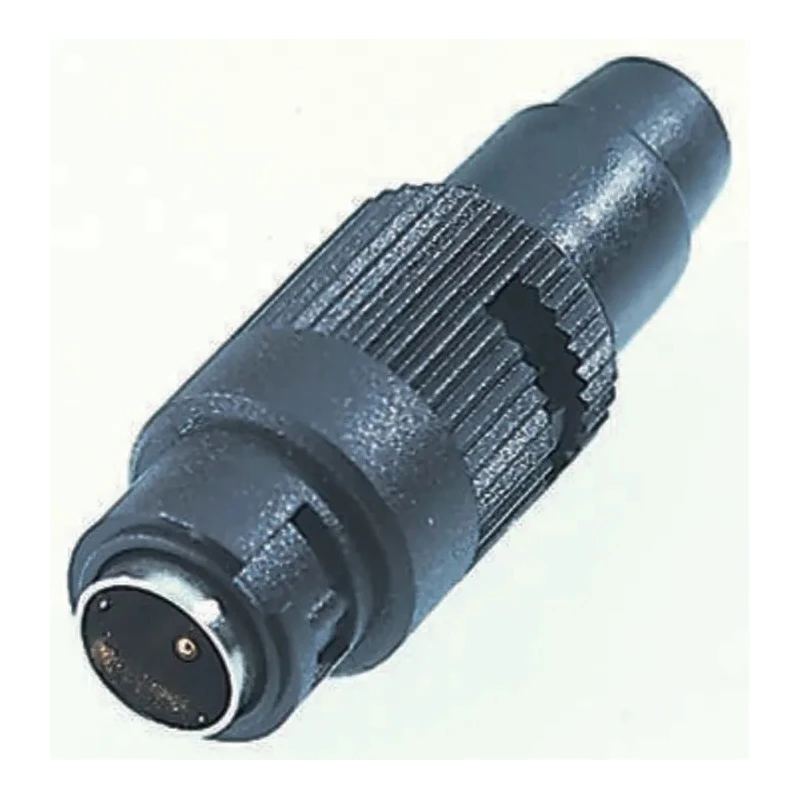

binder Circular Connector 3 Contacts Cable Subminiature Plug Male IP40 710 Series 99-0975-100-03

Free Delivery in India | Lowest Global Shipping Charges

binder Circular Connector 3 Contacts Cable Subminiature Plug Male IP40 710 Series 99-0975-100-03

Name: binder Circular Connector 3 Contacts Cable Subminiature Plug Male IP40 710 Series 99-0975-100-03
Brand: binder
SKU: 139484
Price: 14.5 USD
Availability: InStock



Category Industrial Circular Connectors Brand binder Condition New

Specifications

Country of Origin	Germany
Voltage	125V
Brand	binder
Orientation	Straight
Current	4A
IP Rating	IP40
Mount Type	Cable
Housing Material	Polymer
Contact Material	Brass
Series	710
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Contact Plating	Gold
Number of Contacts	3
Contact Gender	Male

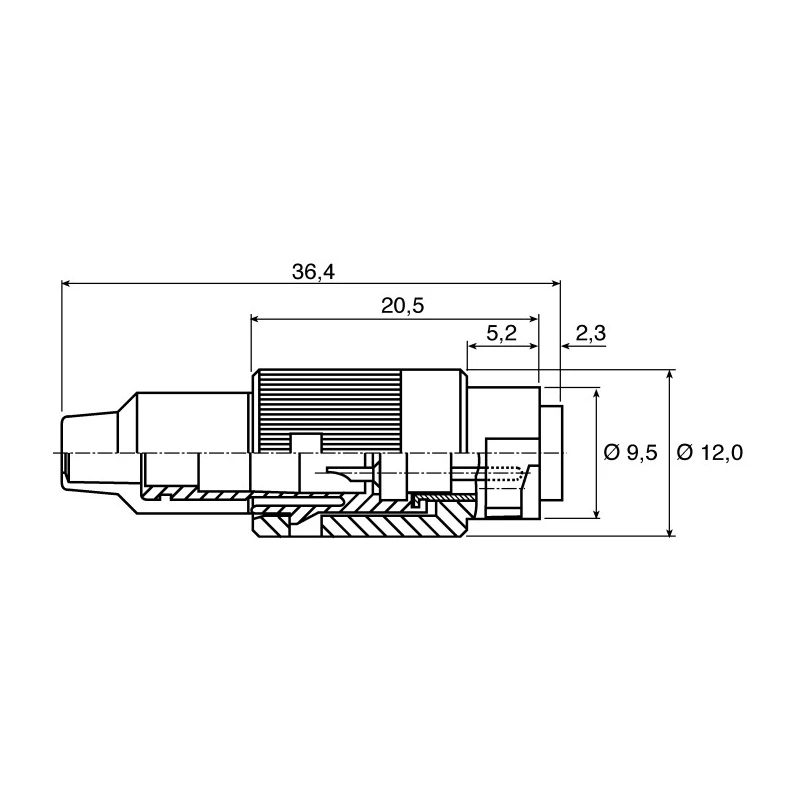

Shell Size	12 mm
Mating Type	Bayonet
Connector Size	Subminiature
Plug/Socket	Plug

Key Features

Rated for 125V voltage and 4A current capacity.
Constructed with a polymer housing and brass contact material plated with gold for durability.
Termination type is solder with bayonet mating for secure connection.
Shell size is 12 mm and orientation is straight.
Operational temperature range from -40°C to 85°C for diverse environments.
Complies with 710 series specifications ensuring reliable industrial performance.
Designed and manufactured in Germany with precision for industrial circular connection needs.

Product Description

The binder 99-0975-100-03 circular connector is a high-quality subminiature cable plug designed for industrial electronic and electrical applications. Featuring 3 contacts with a male contact gender, this cable mount plug ensures secure and reliable connections with a bayonet mating type.

Engineered with a polymer housing and brass contacts plated with gold, the connector offers excellent corrosion resistance and mechanical strength. It supports a current rating of 4A at 125V, making it suitable for a variety of power and signal transmission tasks.

With an IP40 protection rating when mated, the connector guards against solid objects larger than 1 mm, suitable for industrial environments where protection against dust and accidental contact is necessary. The shell size measures 12 mm, and the connector is oriented straight for straightforward cable routing.

Its termination type is solder, providing a stable and durable electrical connection. The operational temperature range from -40°C to 85°C allows usage in harsh climatic conditions.

Manufactured in Germany, this component adheres to stringent quality standards to support industrial, electronic, laboratory, manufacturing, and commercial applications where compact and robust circular connectors are needed.

Rated for 125V voltage and 4A current capacity. Constructed with polymer housing and gold-plated brass contacts for durability. Bayonet mating ensures secure and efficient connection engagement. IP40 rated protection offers solid object ingress resistance.

Operational between -40°C to 85°C for versatile environmental adaptation. Subminiature size with 12 mm shell for compact installations. Suitable for industrial and electronic equipment requiring reliable connections. Discover more products in the electronics and electricals category on EnvMart, including a wide range of connectors designed for various industrial and commercial applications.
