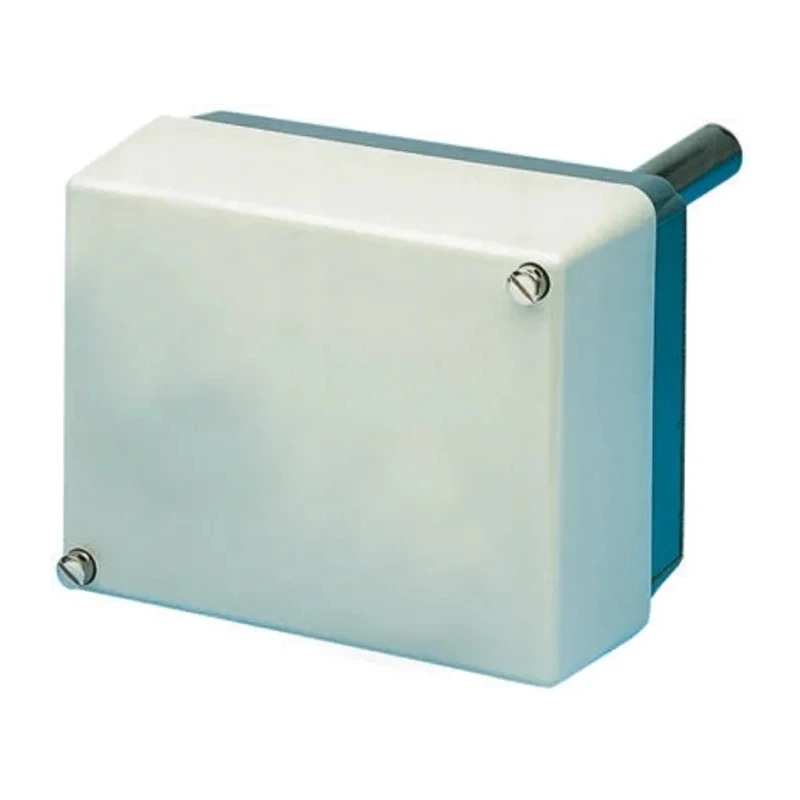

Jumo Capillary Thermostat Temperature Controller with +150 °C Max 603026/0202-1-043-30-0-00-20-13-46-100-15-6/000

Free Delivery in India | Lowest Global Shipping Charges

Jumo Capillary Thermostat Temperature Controller with +150 °C Max 603026/0202-1-043-30-0-00-20-13-46-100-15-6/000

Name: Jumo Capillary Thermostat Temperature Controller with +150 °C Max 603026/0202-1-043-30-0-00-20-13-46-100-15-6/000
Brand: JUMO
SKU: 139023
Price: 513.95 USD
Availability: InStock



Category Thermostats Brand JUMO Condition New

Specifications

Country of Origin	Germany
Brand	Jumo
Model	603026/0202-1-043-30-0-00-20-13-46-100-15-6/000
Mount Type	Surface Mount
Series	ATH
Maximum Operating Temperature	+150°C
Minimum Operating Temperature	20°C
Terminal type	Screw
Thermostat Type	Capillary
Contact AC Voltage	230V ac
Contact Current	10A
Reset Type	Automatic
Switch Function	Temperature Monitor, Temperature Controller, Safety Temperature Limiter, Safety Temperature Monitor

Key Features

Equipped with a capillary thermostat type for precise temperature regulation.
Supports a contact AC voltage rating of 230V AC and contact current of 10A.
Features a surface-mount design suitable for diverse industrial applications.
Includes automatic reset for reliable and continuous operation.
Functions include temperature monitoring, controlling, safety temperature limiting, and safety temperature monitoring.
Compliance with standards including 97/23/EC, EN 60 529-IP 54, VDE 0116, and DIN EN 14597.
Robust screw terminal connections for secure installation.
Originates from Germany, ensuring high manufacturing quality.

Product Description

Jumo 603026/0202-1-043-30-0-00-20-13-46-100-15-6/000 Capillary Thermostat is a surface-mount twin thermostat designed to control and monitor thermal processes with high accuracy and safety. With a maximum operating temperature of +150 °C and minimum of 20 °C, this thermostat operates on the principle of liquid expansion coupled with microswitch electrical switching.

The thermostat is suitable for industrial automation, HVAC systems, electrical heating devices, and safety monitoring applications. Designed for robust performance, it features a screw terminal type for firm electrical connections and supports a contact current of 10A at 230V AC, enabling it to accommodate a range of industrial loads.

Its automatic reset function ensures reliable switching without manual intervention, enhancing operational efficiency. The device has a protection rating of IP54, offering resistance against dust and water ingress, ideal for demanding industrial environments.

Certified to recognized standards such as 97/23/EC, EN 60 529-IP 54, VDE 0116, and DIN EN 14597, this thermostat complies with European safety and quality requirements. Capillary thermostat type for precise temperature control.

Surface-mount design for easy installation. Automatic reset for continuous operation. Functions include temperature monitoring, control, and safety limiting. Rated for 230V AC and 10A contact current. Robust screw terminals provide secure connections.

IP54 protection for industrial reliability. Manufactured in Germany with stringent quality standards.

This Jumo thermostat is ideal for use in industrial machines, electrical heating control panels, process automation, and safety systems requiring dependable temperature regulation and safety temperature limitation.
