Omron G3RV-SR Solid State Interface Relay 18V DC 30V DC DIN Rail Push-In Terminal

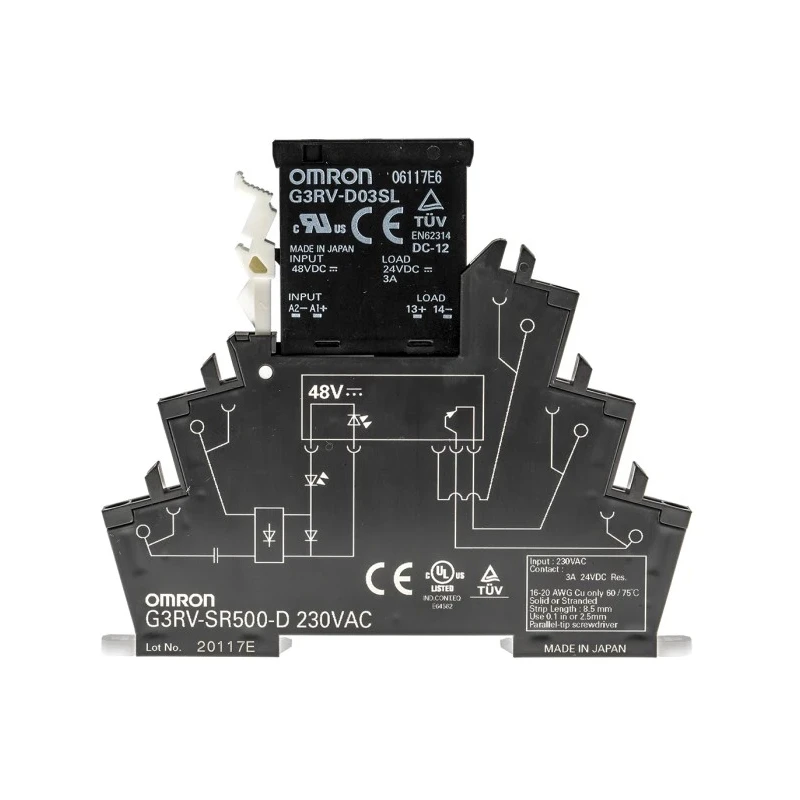

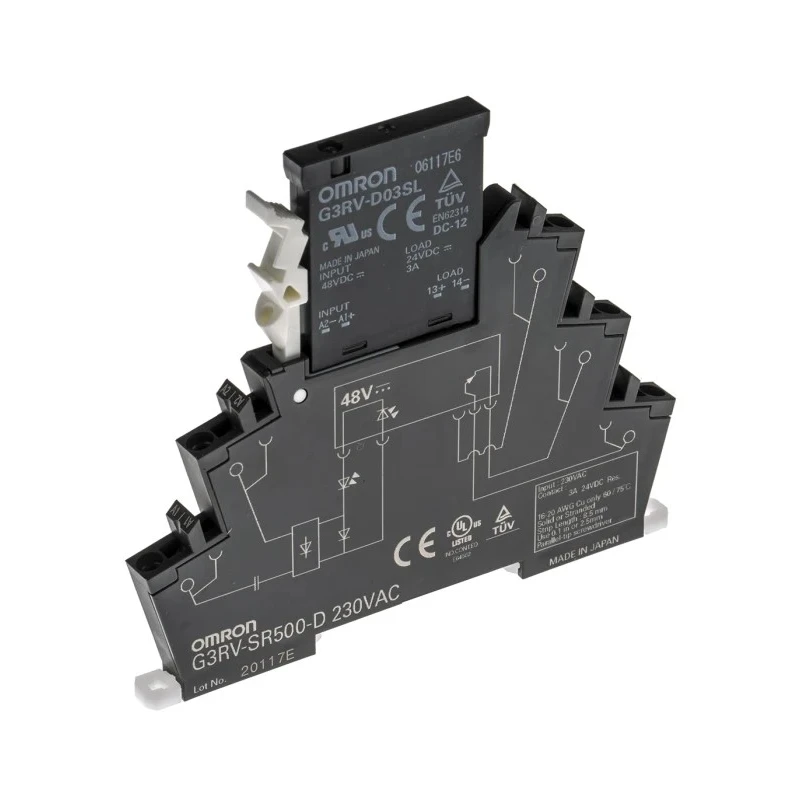

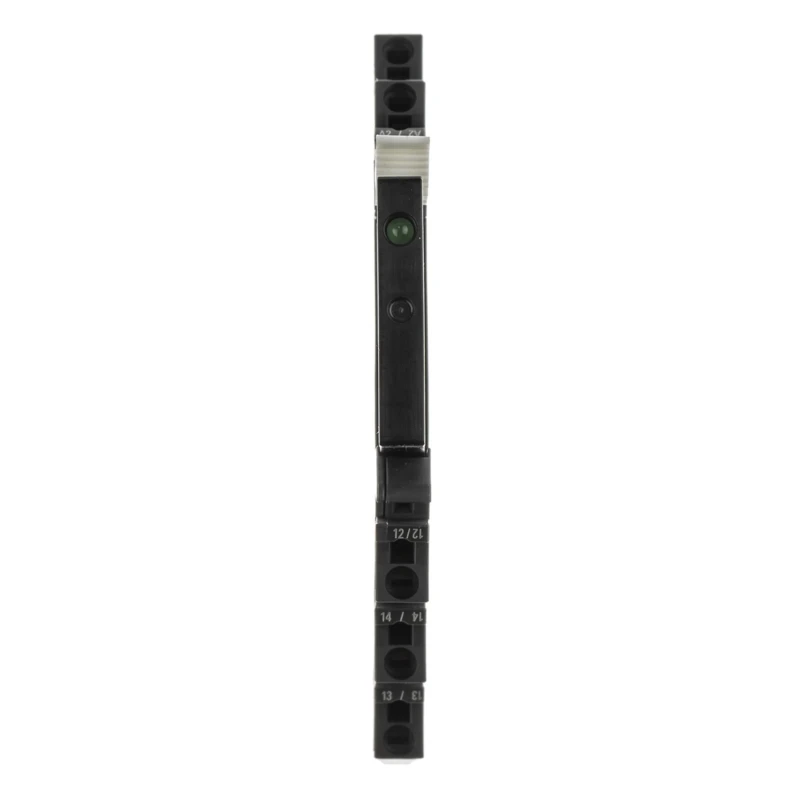

Omron G3RV-SR model G3RV-SR500-D AC230 Solid State Interface Relay is engineered for efficient and flexible integration within control panels and automation systems. This slim relay with a 6.2 mm width allows up to 25% reduction in control panel space compared to standard SSR models.

It features a Push-In Plus terminal system to expedite wiring and reduce installation time by approximately 60%. The relay supports DC output loads through a MOSFET and operates with rated input control voltage of 230 V AC. The load specifications include voltage range from 3 to 26.4 V DC with current capacity up to 3 A, making it suitable for a variety of electronic switching applications.

The relay’s high-frequency and high-speed switching capabilities ensure precise operation in industrial automation, signal conditioning, and control processes. It incorporates a release lever for easy installation and removal, as well as IP20 protection.

The relay’s operating temperature range is -30°C to +55°C, facilitating reliable performance in diverse industrial environments. Output ON resistance is maintained at a maximum of 0.3 ohms at 24 V DC, minimizing power loss.

Leakage current is limited to 10 microamperes at 24 V DC, enhancing energy efficiency. Mechanical and electrical durability is assured with vibration and shock resistance specifications of 10 to 55 Hz (double amplitude) and 300 m/s² respectively.

Compatible DIN rail accessories include PFP-100N (1 m), PFP-50N (0.5 m), PFP-M end plate, and PFP-S spacer plate for optimal mounting and panel design.

This Omron G3RV-SR relay series represents the Value Design for Panel category, facilitating top or bottom installation on DIN rails to allow flexible panel layouts and efficient wiring. It is ideally applied in industrial automation settings, electrical panels, manufacturing control systems, and other signal conditioning uses requiring reliable solid state relay performance.

Choose this product to enhance control panel compactness and operation speed, backed by the quality and innovation of Omron manufacturing. Explore the Omron brand and Solid State Interface Relay category for more industrial-grade automation components on EnvMart.
