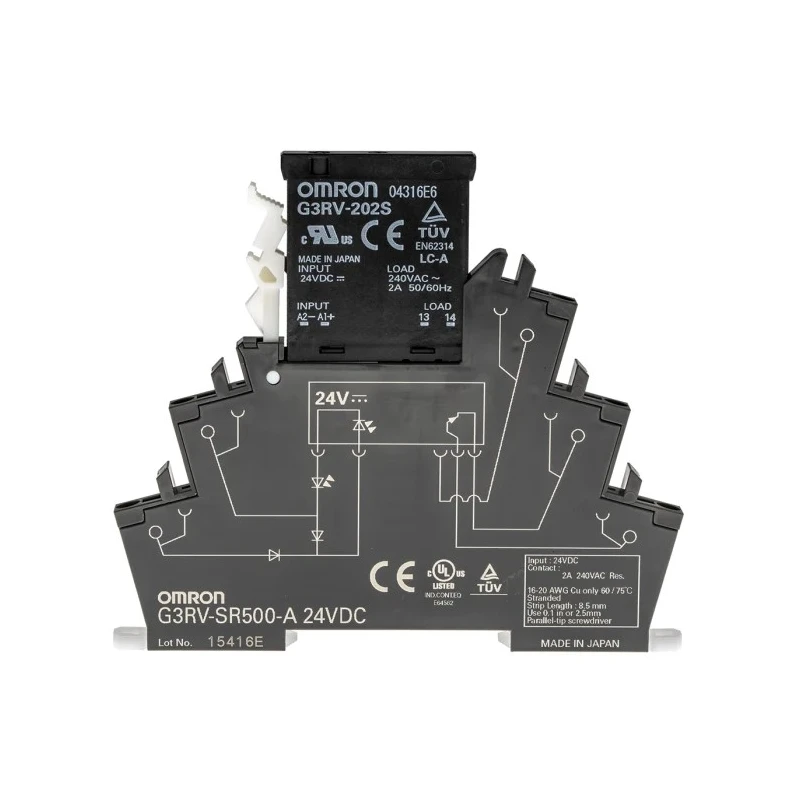

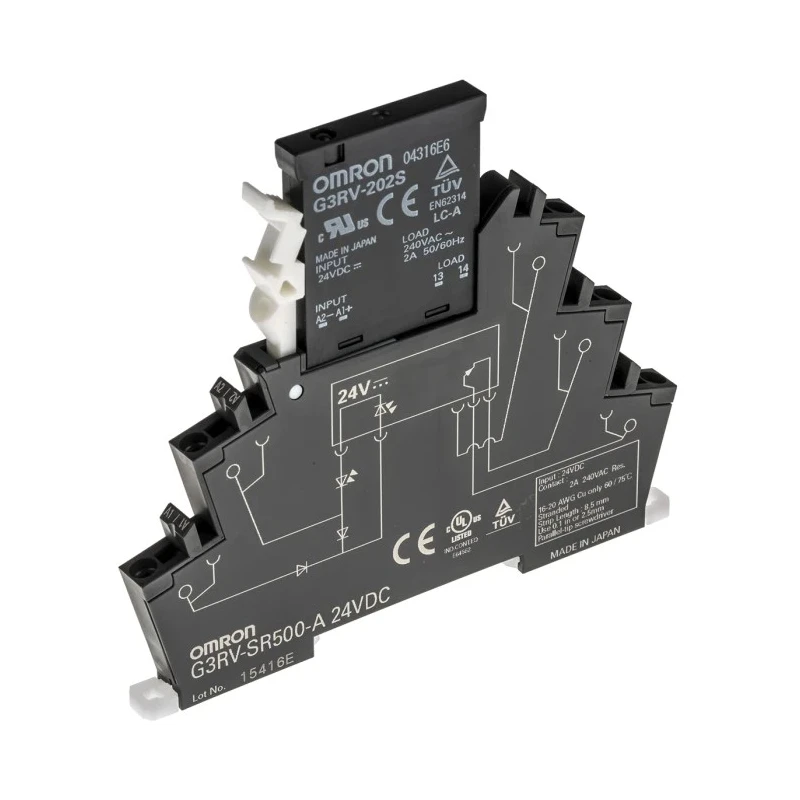

Omron Solid State Interface Relay 440V AC DIN Rail Push-in Terminal Compact Low Profile G3RV-SR500-A AC/DC24

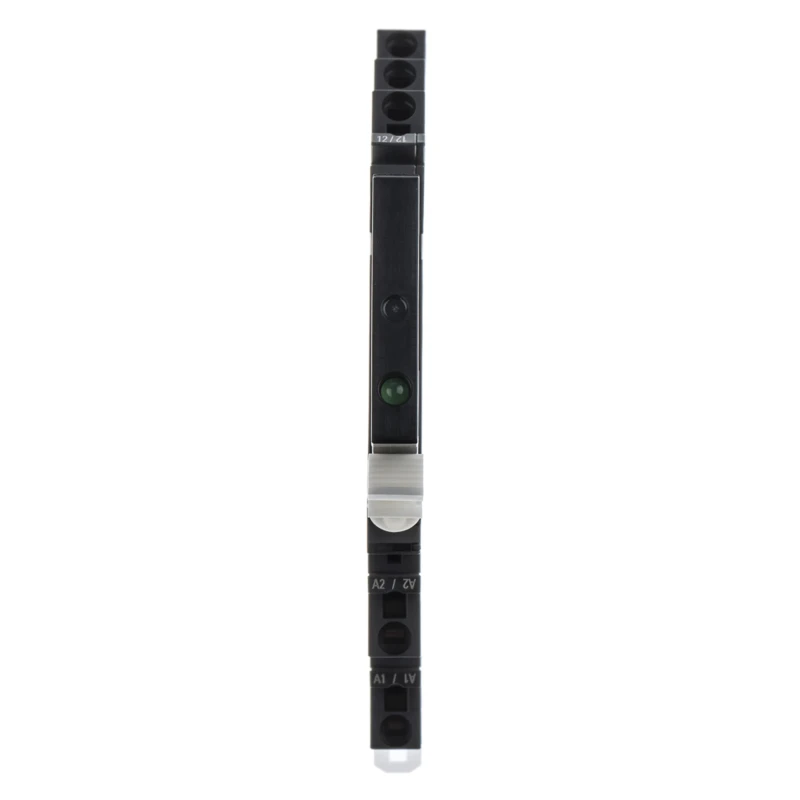

Omron G3RV-SR500-A AC/DC24 Solid State Interface Relay is a compact I/O low profile SSR designed for efficient control in electrical and automation applications. With a slim design only 6.2 mm wide, it allows significant downsizing of control panels. The relay supports DIN rail mounting and features Push-In Plus terminals and a release lever for ease of installation and maintenance.

This solid state relay operates with a rated input voltage of 24 V AC/DC and provides a rated AC output load voltage from 100 to 240 V AC with a load current range of 0.1 to 2 A at an ambient temperature of 25°C. Its zero cross function enables switching at the zero point of the AC waveform, minimizing electrical noise and prolonging relay life.

Additional key performance characteristics include high-frequency operation, fast switching times with an operate time of a half cycle plus 1 ms maximum, and release time of up to 60 ms. The relay sustains inrush current resistance up to 30 A (60 Hz, 1 cycle) and offers output ON voltage drop of 1.6 V RMS max. Leakage current is maintained below 5 mA at 200 V AC. The durable design features vibration resistance from 10 to 55 Hz and shock resistance up to 300 m/s².

The relay is rated for insulation voltage of 240 V and is suitable for a wide range of industrial uses including manufacturing automation, electrical control systems, and industrial machinery. It supports flexible panel design with top or bottom facing installation and is ideally used within control panels requiring reliable and space-saving interface relays.

Omron G3RV-SR500-A AC/DC24 Solid State Interface Relay is manufactured in Japan ensuring quality and reliability meeting industrial standards. It is compatible with DIN rail accessories such as PFP-100N and PFP-50N relay rails and related end and spacer plates for precise panel fitting.

The relay operates with a rated input voltage of 24 V AC/DC providing efficient control. Offers rated AC load voltage of 100 to 240 V AC and load current of 0.1 to 2 A at 25°C ambient temperature. Features zero cross function to reduce noise during switching at AC power zero crossing.

Equipped with Push-In Plus terminals and release lever for easy wiring and relay locking. Compact slim design at 6.2 mm wide enables downsizing of control panels. Supports high-frequency and high-speed switching with operate time of half cycle plus 1 ms max.

Rated insulation voltage of 240 V ensures safety and reliability in industrial applications. Relay designed and manufactured in Japan with robust shock and vibration resistance. Explore other quality interface relays and electrical components at EnvMart for your industrial automation needs.
