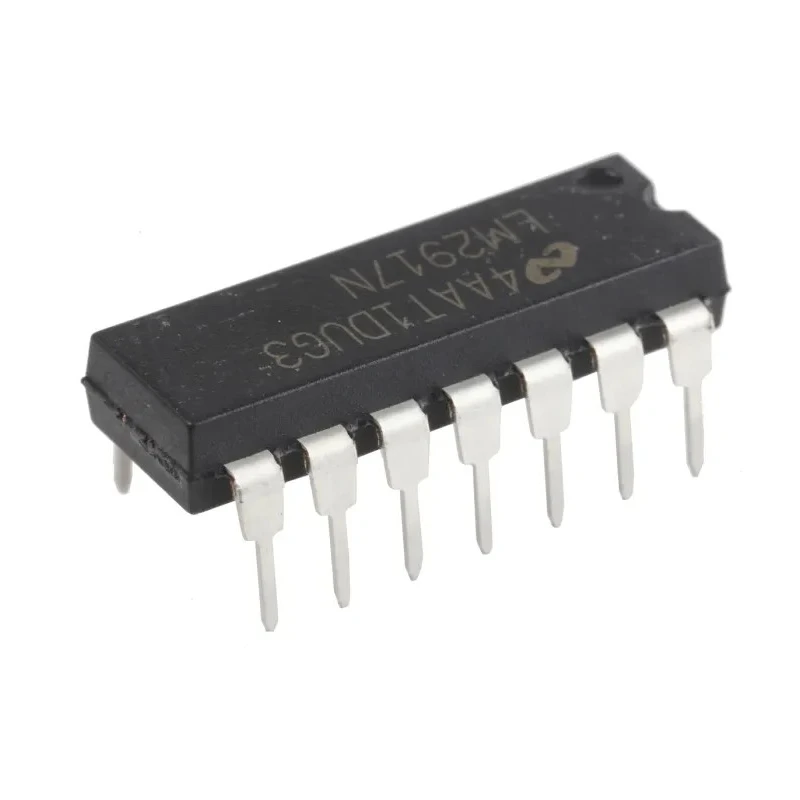

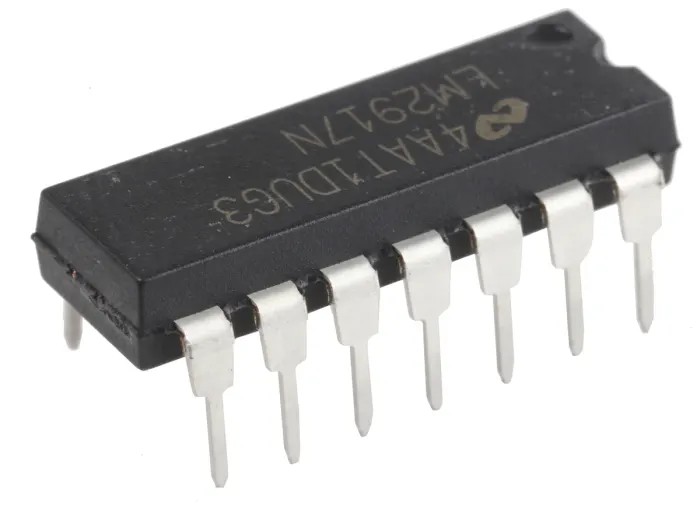

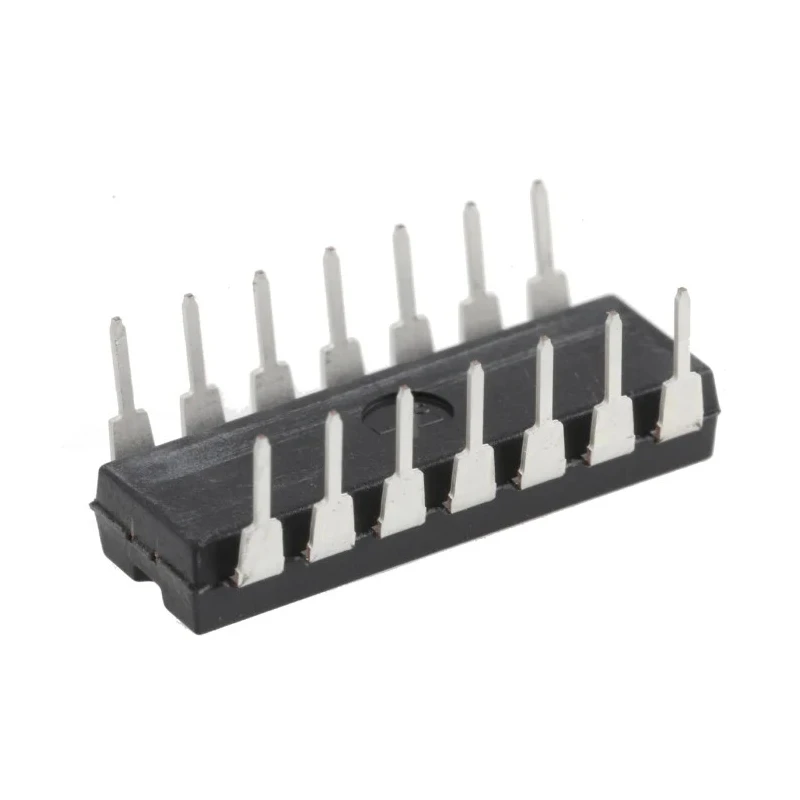

Texas Instruments Frequency to Voltage Converter, 10 kHz ±1 %FSR, 14-Pin MDIP LM2917N/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 3.3mm |
| Length | 19.05mm |
| Model | LM2917N/NOPB |
| Mount Type | Through Hole |
| Linearity error | ±1 %FSR |
| Maximum Operating Temperature | 85°C |
| Package Type | MDIP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 14 |
| Maximum Supply Voltage | 28V |
| Minimum Supply Voltage | 12V |
| Converter Type | Voltage |
| Converter Function | FVC |
| Full Scale Frequency | 10kHz |
Key Features
- The converter features a full scale frequency of 10 kHz with ±1 %FSR linearity error.
- It is designed for through-hole mounting with a 14-pin MDIP package.
- This device operates with a single power supply ranging from 12 V to 28 V.
- It supports operating temperatures from -40°C to 85°C, suitable for industrial environments.
- This frequency to voltage converter is ideal for applications such as tachometers and speed governors.
- The compact dimensions include a length of 19.05 mm and height of 3.3 mm.
- National Semiconductor technology ensures low power consumption and reliable analogue-to-digital conversion.
Product Description
Texas Instruments LM2917N/NOPB frequency to voltage converter is designed for precise analogue-to-digital conversion applications. It converts frequency signals to their corresponding voltage output with high accuracy, featuring a full scale frequency of 10 kHz and a linearity error of ±1 %FSR. The compact 14-pin MDIP package facilitates through-hole PCB mounting, ensuring compatibility with diverse industrial circuit designs.
This device operates efficiently over a single power supply voltage ranging from 12 V up to 28 V, with operational capability across a broad temperature spectrum from -40°C to 85°C, making it suitable for harsh industrial and automotive environments.
Typical applications include tachometers for measuring rotational speed, speed governors, and other frequency-to-voltage conversion scenarios where precise measurement and control are critical. Its low power consumption and reliable performance derive from established National Semiconductor technology, ensuring stability and longevity in various electronic systems.
The converter offers a full scale frequency of 10 kHz with ±1 %FSR linearity error. Through-hole mount type with a 14-pin MDIP package provides robust physical installation. Wide power supply range from 12 V to 28 V supports diverse industrial requirements.
Operating temperature range from -40°C to 85°C supports demanding conditions. Compact dimensions of 19.05 mm length and 3.3 mm height allow space-efficient integration. Low power consumption makes it suitable for efficient circuit designs.
Ideal for tachometer and speed governor applications in industrial automation.
Used widely in industrial electronics, laboratory instrumentation, and automation controls, the LM2917N/NOPB converter enhances system reliability and measurement accuracy. This product is a key component in frequency-to-voltage conversion circuits widely used in manufacturing, automotive systems, and control instrumentation industries.
Explore our extensive range of power and converter components for efficient electronic design solutions at EnvMart.
Explore more products in our Voltage-to-Frequency & Frequency-to-Voltage Converters category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The full scale frequency of this model is 10 kHz.
It has a linearity error of ±1 %FSR.
The operating temperature range is from -40°C to 85°C.
It operates with a single power supply ranging from 12 V to 28 V.
The dimensions include a length of 19.05 mm and a height of 3.3 mm.
This model is designed for through-hole mounting with a 14-pin MDIP package.
The LM2917N/NOPB has a pin count of 14.
It utilizes National Semiconductor technology for low power consumption and reliable performance.
The country of origin is India.
The maximum supply voltage is 28 V.
