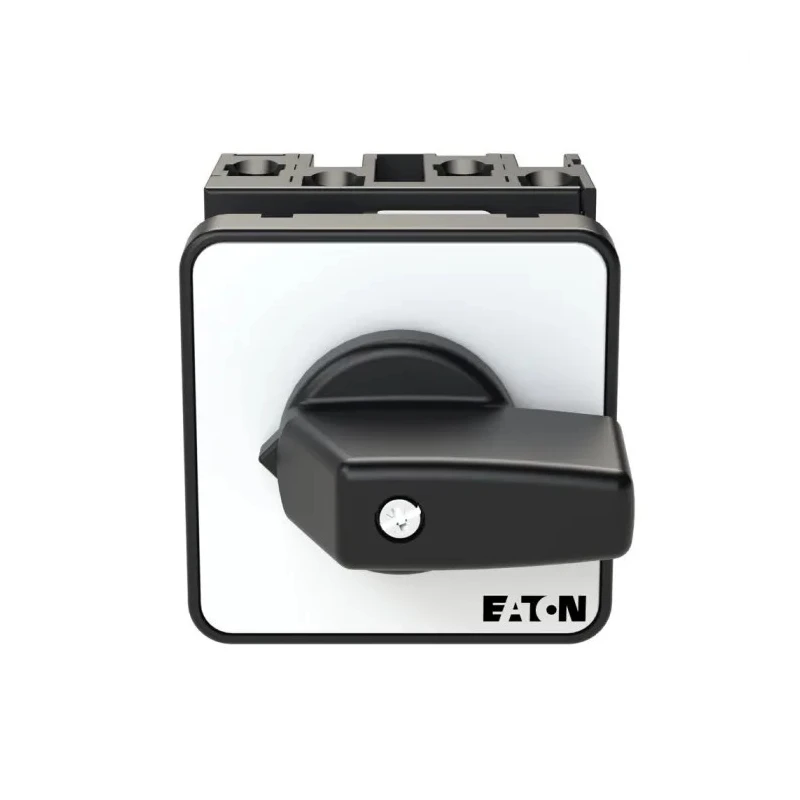

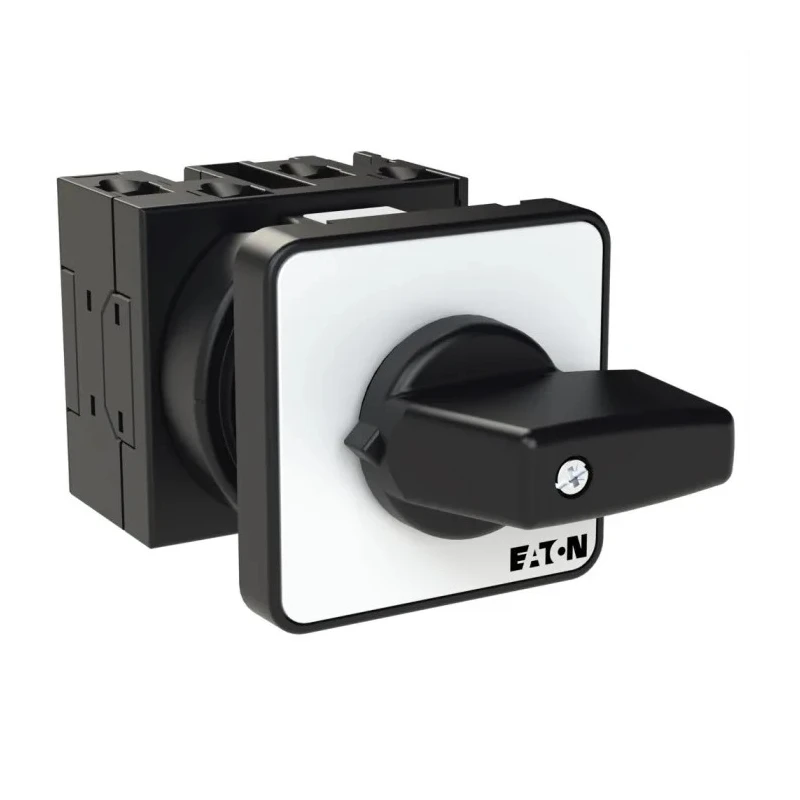

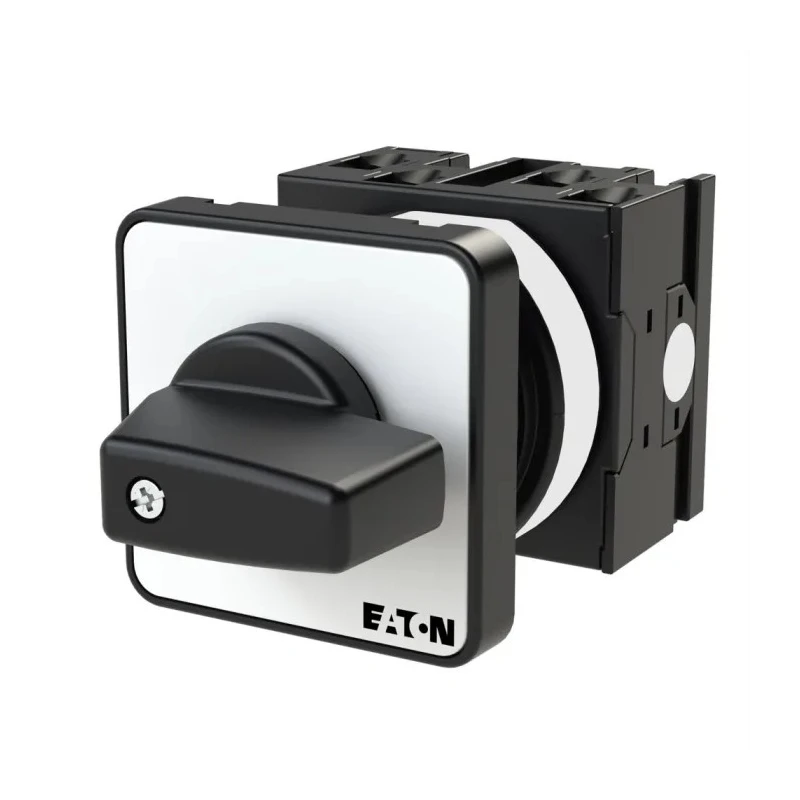

Eaton Cam Switch 3 Position 45° Toggle Actuator, 20A, 690V AC Flush Mount, IP65 034110 T0-2-15432/E

The Eaton 034110 T0-2-15432/E Cam Switch features a 3-position toggle actuator with a 45-degree throw, engineered to provide reliable control in industrial, automation, and electrical panel applications. It is rated for a maximum current of 20A and supports voltages up to 690V AC, making it suitable for a wide range of electrical phase requirements including both single-phase and three-phase systems.

This cam switch is designed for flush mounting with compact dimensions of 48 mm length, width, and depth, ensuring it fits neatly within control panels and enclosures. The IP65 ingress protection rating guarantees dust-tight operation and resistance to water jets, enabling dependable performance even in harsh industrial environments.

The toggle actuator design allows for easy manual operation with a maintained switching mechanism that holds the selected position until manually changed, enhancing operational reliability and safety. The switch covers an ambient temperature range of -25°C to 50°C, suitable for diverse environmental conditions.

Constructed to comply with recognized standards such as UL 508, CSA-C22.2 No. 14-05, VDE 0660, IEC/EN 60947-3, and CE marking, this cam switch ensures conformity with strict safety and performance criteria. Its robust mechanical life expectancy of 10 million operations assures long-term durability for demanding industrial uses.

Manual toggle actuator provides reliable switching. Flush mount and compact 48x48x48 mm dimensions fit panels easily. IP65 rating protects against dust and water ingress. Maintained switching function secures switch position.

Operates at -25°C to 50°C ambient temperature range. Supports 20A contact current at up to 690V AC voltage. Certified to UL, CSA, VDE, IEC, and CE standards. Mechanical life rated at 10 million operations for durability.

This Eaton Cam Switch is ideal for industrial machinery, automation systems, HVAC safety isolations, and electrical panel circuit management. Its reliable operation and compliance with global standards make it an essential component for robust and safe electrical control applications.

Explore the Eaton range for high-quality switches and actuators designed for industrial and electrical control applications on EnvMart.
