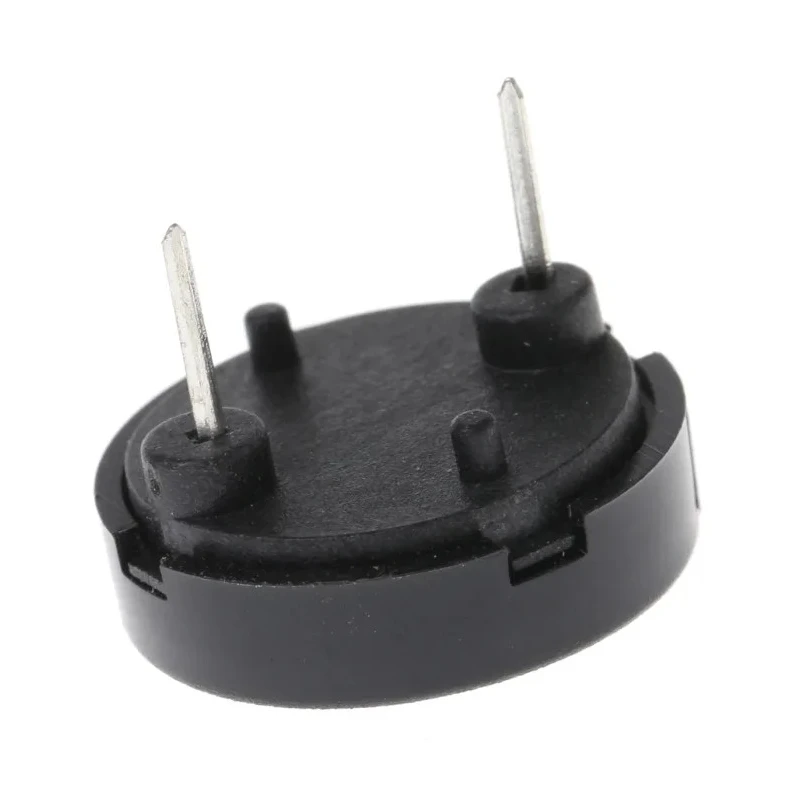

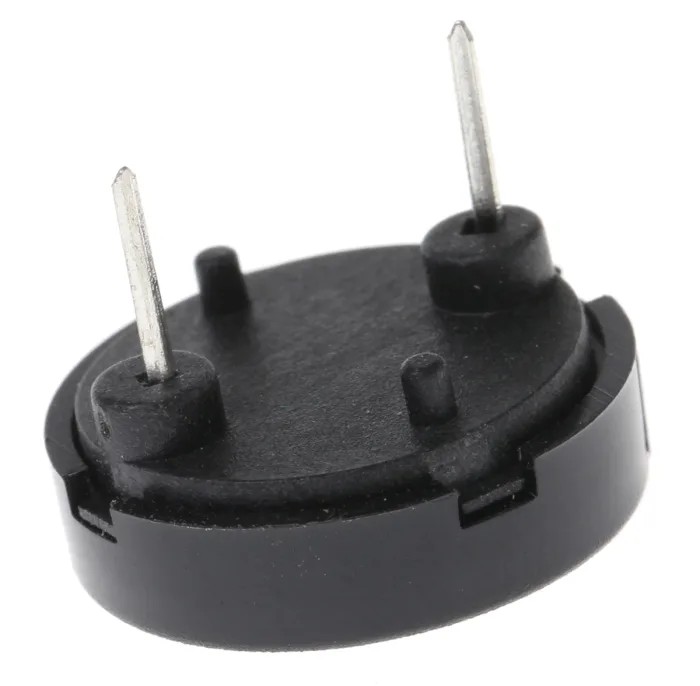

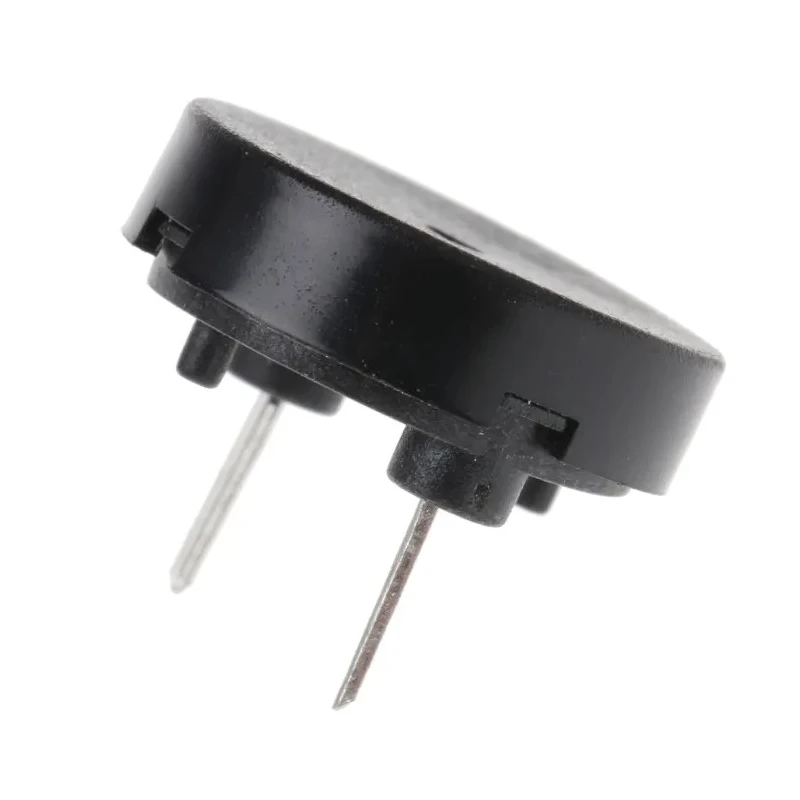

RS PRO 75 dB Through Hole Continuous External 6.7 mm Piezo Buzzer Component 1 V ac Min 30V ac Max 457-065

Name: RS PRO 75 dB Through Hole Continuous External 6.7 mm Piezo Buzzer Component 1 V ac Min 30V ac Max 457-065
Brand: RS PRO
SKU: 138160
Price: 3.21 USD
Availability: InStock



Category Piezo Buzzer Component Brand RS PRO Condition New

Specifications

Country of Origin	China
Diameter	16.5mm
Brand	RS PRO
Sound Level	75dB
Height	6.7mm
Model	457-065
Drive Type	External
Mount Type	Through Hole
Maximum Operating Temperature	70°C
Capacitance	10nF
Minimum Operating Temperature	-20°C
Standards/Approvals	RoHS
Maximum Frequency	4.5kHz
Maximum Supply Voltage	30V ac
Minimum Supply Voltage	1V ac
Supply Current	1mA
Tone Type	Continuous
Minimum Frequency	3500Hz

Key Features

This piezo buzzer operates with a minimum supply voltage of 1 V AC and a maximum of 30 V AC.
The diameter of the device is 16.5 mm, with a height of 6.7 mm.
It has a capacitance of 10 nF and requires an external drive type.
The buzzer produces a continuous tone with a frequency range of 3500 Hz minimum to 4.5 kHz maximum.
It operates within a temperature range of -20°C to 70°C.
The supply current is approximately 1 mA.
This product complies with RoHS standards and is manufactured in China.

Product Description

RS PRO 457-065 Piezo Buzzer Component is engineered for industrial and electronic applications requiring audible signals. This through hole mount piezo buzzer features a circular casing designed for PCB mounting and offers a high sound output of 75 dB.

The device operates within a voltage range of 1 V AC minimum to 30 V AC maximum, driven externally to produce a continuous tone at frequencies between 3500 Hz and 4.5 kHz. Its compact dimensions include a diameter of 16.5 mm and an overall height of 6.7 mm, making it suitable for tight installation spaces.

The buzzer’s capacitance is 10 nF, and it consumes a supply current of 1 mA, ensuring low power usage. It maintains reliable performance within an operating temperature range of -20°C to 70°C, which suits various industrial environments.

This RoHS-compliant piezo buzzer is ideal for applications in electronic equipment signaling, alarm systems, and other sounder functions within industrial, manufacturing, and laboratory settings.

This piezo buzzer operates with a minimum supply voltage of 1 V AC and a maximum of 30 V AC. The component features a 16.5 mm diameter and 6.7 mm height for compact mounting. It generates a continuous tone between 3500 Hz and 4.5 kHz with a 75 dB sound level.

The device requires an external drive and consumes low supply current of 1 mA. Operating temperature ranges from -20°C to 70°C, ensuring versatility. It is RoHS compliant, promoting environmental safety standards. Manufactured in China, reflecting standard quality production.
