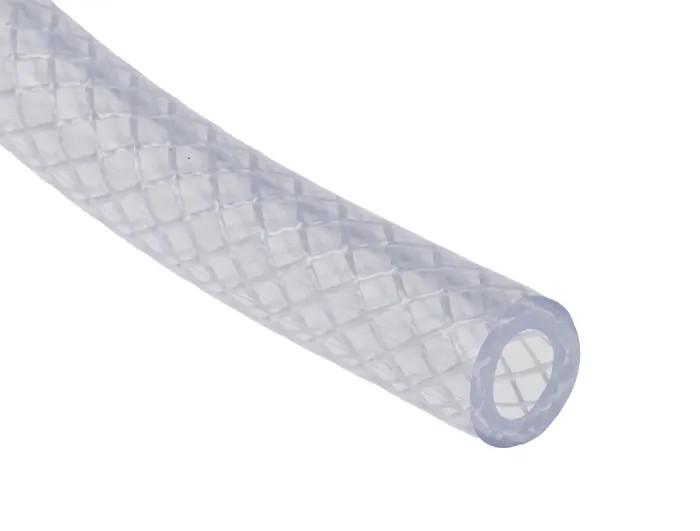

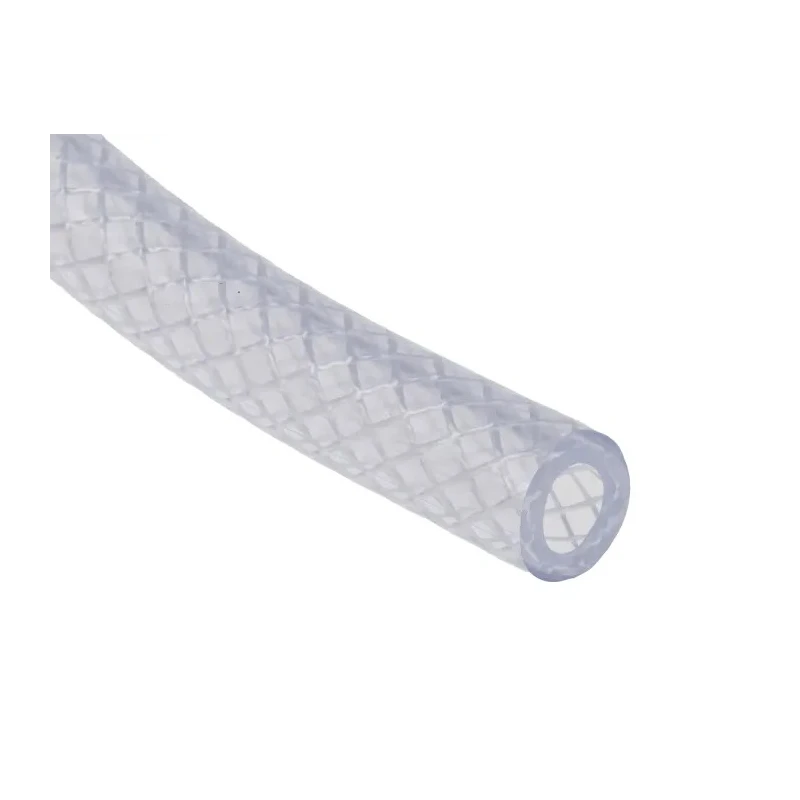

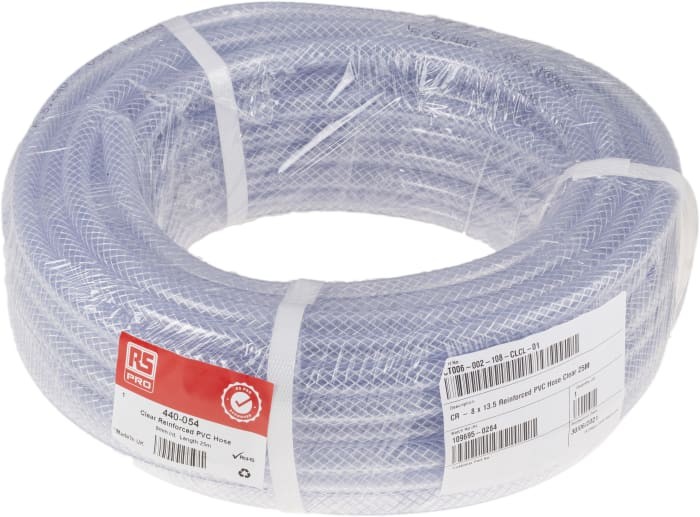

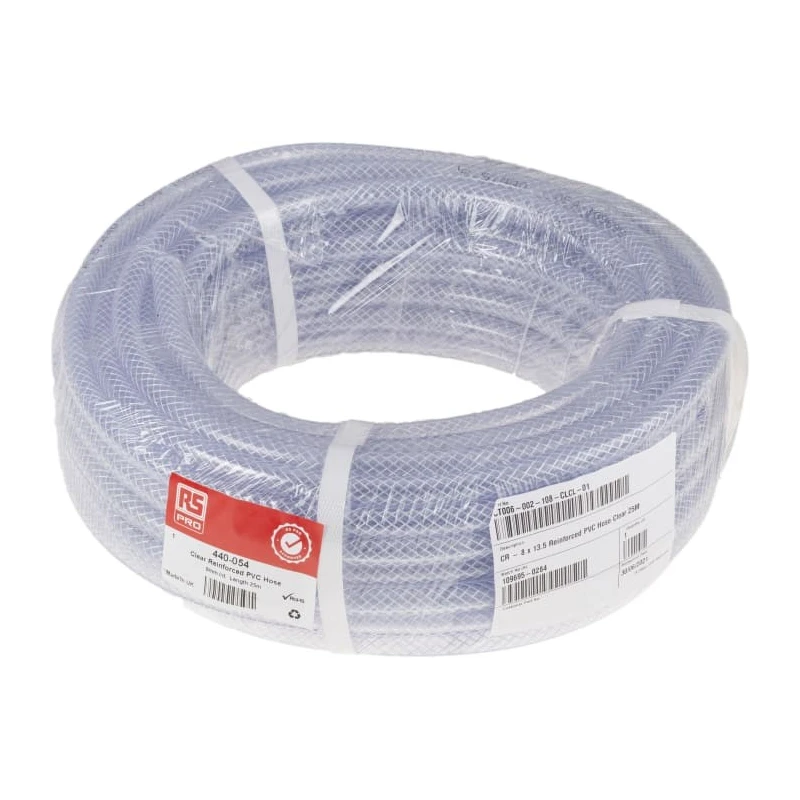

RS PRO Reinforced Polyvinyl Chloride Hose Pipe 25m Length 16 bar Maximum Operating Pressure 440-054

RS PRO 440-054 reinforced polyvinyl chloride (PVC) hose pipe is a multi-purpose industrial grade tubing designed primarily for applications requiring reliable fluid conveyance under pressure. This hose pipe, measuring 25 meters in length, is constructed from a specialist PVC material resistant to a broad range of chemicals and abrasion, making it suitable for liquid transfer including water, fuels, oils, and various chemicals in laboratory, manufacturing, pharmaceutical, food processing, construction, agricultural, and pneumatic tool applications.

The hose features a reinforced construction using specially selected high tensile polyester fibers braided at an optimized angle of approximately 54.7°, providing an effective balance of flexibility, durability, and a 4:1 safety factor for a maximum operating pressure of 16 bar. Its clear PVC body facilitates visual inspection of conveyed media, while also being EC compliant for food contact applications and certified RoHS compliant.

Additional advantages include good flexibility with a bend radius of 29 mm, abrasion resistance due to a thicker wall construction, and usage temperature capabilities ranging from -10°C to 60°C. The hose’s outside and inside diameters measure 13.5 mm and 8 mm respectively, enabling adequate flow capacity and pressure management for compressed air, gas, and liquid transmission.

Certified to ISO 5774, NSF 51, and NSF 61 standards, this hose pipe provides confidence in safety and performance, especially in pharmaceutical, scientific, and food industry settings. The product is manufactured in the United Kingdom ensuring authenticity and quality manufacturing standards.

Common industrial and commercial applications include caravan water piping, chemical transfer in pharmaceutical environments, pneumatic tool air connections, and food-grade liquid transfer.

Constructed from durable polyvinyl chloride material for chemical resistance and flexibility. Clear hose with a bend radius of 29mm enables easy installation in tight spaces. Reinforced with high tensile polyester fibers arranged at an optimum braid angle for balanced pressure durability.

Suitable for compressed air, water, fuels, oils, chemicals, and food applications with EC and RoHS compliance. Operates reliably within temperatures ranging from -10°C to 60°C. Meets ISO 5774, NSF 51, NSF 61 standards and has a 4:1 safety factor for pressure handling.

Outside diameter measures 13.5 mm and inside diameter is 8 mm for controlled flow rates. Manufactured in the United Kingdom ensuring consistent quality and origin. Explore more hoses and flexible tubes from RS PRO and discover comprehensive piping solutions for your industrial and commercial requirements at EnvMart.
