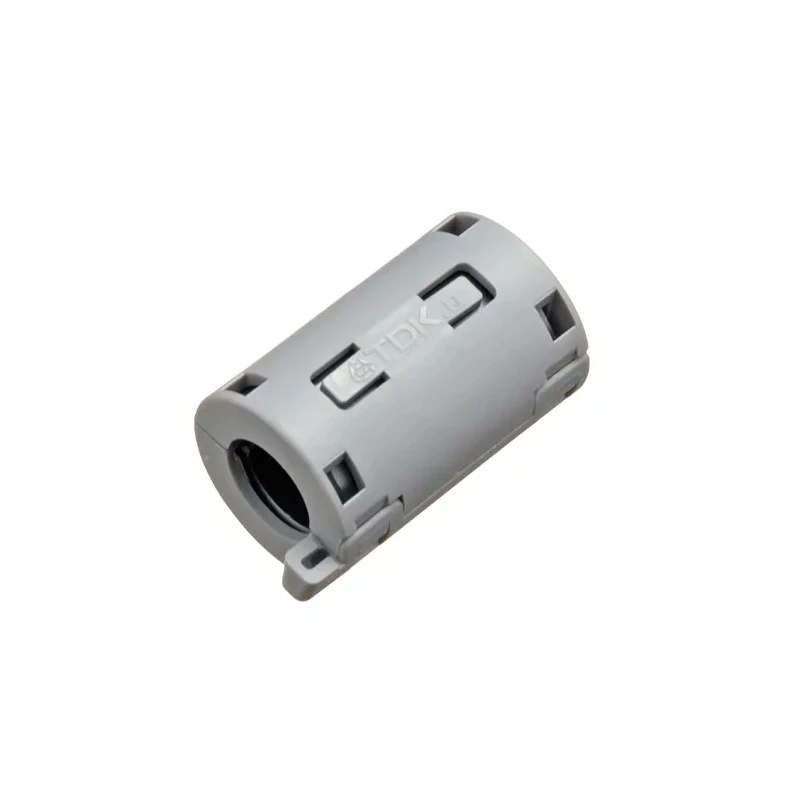

TDK Openable Diameter 11 mm Ferrite Clamp with 1 Aperture 36 mm Height 20.5 mm Width ZCAT2132-1130-BK

TDK's ZCAT2132-1130-BK openable ferrite clamp is engineered to provide superior electromagnetic interference (EMI) suppression for cable assemblies in demanding electronic applications. Featuring an aperture diameter of 11 mm, this clamp is designed with a 30 material ferrite core which delivers excellent absorption of high-frequency noise.

The clamp possesses a unique plastic housing that enables snap fixing and convenient installation without risk of accidental opening. It incorporates a self-holding mechanism to ensure the clamp remains securely attached to cables, minimizing cable slippage.

Its impedance characteristics are carefully balanced across key frequencies, offering 40Ω at 25 MHz and 50 MHz, and 80Ω impedance at higher frequencies such as 100 MHz, 300 MHz, and 500 MHz. These features make it highly effective against common mode EMC noise while maintaining signal integrity.

The dimensions are optimized with a single aperture measuring 11 mm in diameter, 36 mm in external height, and 20.5 mm in external width to suit a variety of cable diameters. The clamp is not gapped and is not equipped with a key.

This ferrite clamp complies with RoHS and REACH environmental directives, assuring environmentally friendly materials and manufacturing processes.

Typical applications for this ferrite clamp include personal computers, word processors, monitors, hard disk drives, digital telephones, audio devices, electronic musical instruments, video game consoles, copiers, and facsimile machines. It is ideal for mitigating EMI and enhancing electromagnetic compatibility in electronic equipment.

The clamp features a single aperture with dimensions of 36 mm height and 20.5 mm external width. Constructed with 30 material for optimal impedance characteristics and durability. Provides impedance of 40Ω at 25 MHz and 50 MHz, rising to 80Ω at 100 MHz, 300 MHz, and 500 MHz frequencies.

Openable design allows simple installation on cables already fitted with connectors. Incorporates a self-holding mechanism to prevent slippage on cables during operation. Complies with RoHS and REACH environmental standards, ensuring safety and compliance.

Widely used in electronic devices including personal computers, monitors, audio equipment, and telecommunication instruments. Explore more high-quality ferrite clamps and EMI suppression components in the Electronics Components category at EnvMart.
