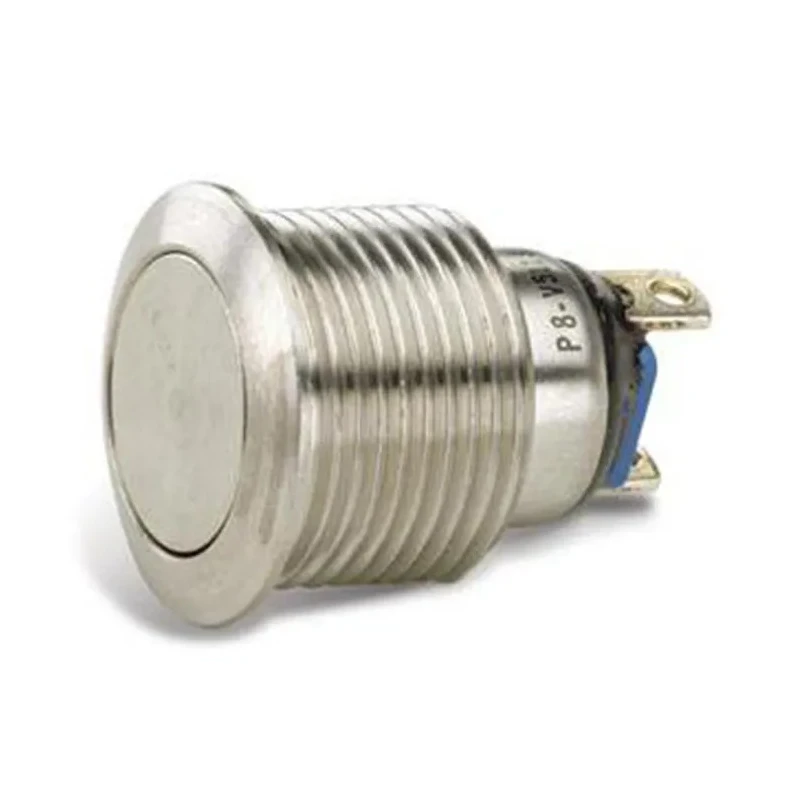

Otto P8 Series Push Button Switch Momentary Panel Mount SPDT Grey LED IP64 IP68S IP69K 115 V P8-V316315

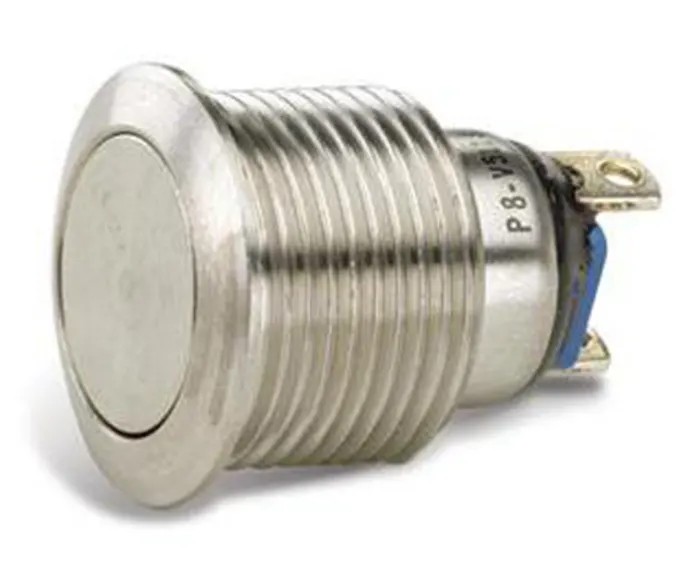

Otto P8-V316315 is a high-quality push button switch designed for panel mount applications, featuring a momentary SPDT switch operation with a grey LED indicator. This switch is housed in a stainless steel vandal resistant case providing robust mechanical protection and durability. Rated IP64, IP68S, and IP69K, it offers watertight sealing and protection against harsh environmental conditions, making it suitable for demanding industrial and commercial environments.

The P8 Series delivers precise tactile feedback with a low contact resistance of less than 25 milliohms, ensuring reliable electrical performance. With a mechanical life expectancy of one million cycles, this switch is engineered for long-lasting operation under frequent use.

Its design includes solder terminal connections for secure and stable panel mounting. The switch operates at 115 volts AC with a contact current rating of 10 amps, supporting a wide range of electrical control applications.

Certified by CSA and UL, it meets UL1500 ignition protection standards, and complies with Reach and WEEE environmental directives. It operates over a temperature range of -55°C to 85°C, ensuring stable performance in varied climatic conditions.

This switch’s robust construction and sealing make it ideal for use in applications requiring vandal resistance and environmental protection such as door access security systems, public transportation equipment, emergency communication devices, and traffic signaling systems.

Constructed with a stainless steel vandal resistant case for durability. Sealed to IP64, IP68S, and IP69K standards for water and dust resistance. Positive tactile feedback and less than 25mΩ contact resistance. Mechanical life expectancy of one million cycles for extended reliability.

Panel mount design with solder terminal type. Rated for 115V AC contact voltage and 10A contact current. Operates between -55°C and 85°C operating temperature. Certified to CSA, UL Recognized, UL1500 ignition protection, Reach, and WEEE compliance.

Provides rear of panel solder flux and harsh environment protection. Widely used in industrial, transportation, security, and emergency systems. Explore the comprehensive Push Button Switch range in the Electronics & Electricals category on EnvMart for reliable industrial-grade components.
