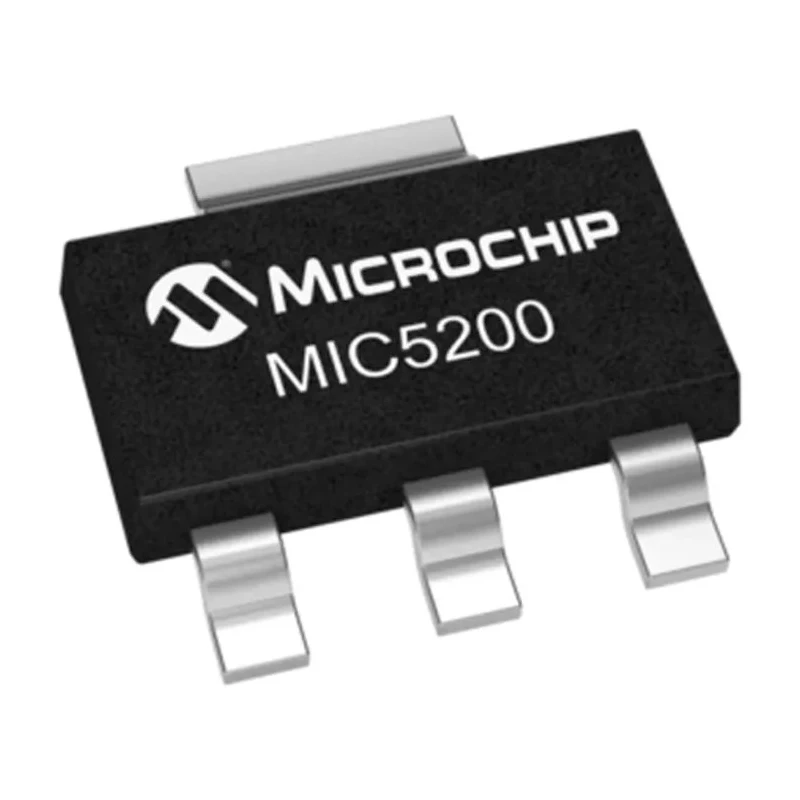

Microchip Low Dropout (LDO) Voltage Regulator 625 mW 26V SOT-223 4-Pin MIC5200-5.0YS
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators Microchip, Voltage Regulator 625 mW 26V SOT-223 4-Pin RS Stock No |
| Brand | Microchip |
| Height | 1.6mm |
| Length | 6.5mm |
| Model | MIC5200-5.0YS |
| Width | 3.5mm |
| Mount Type | Surface |
| Series | MIC5200 |
| Power Rating | 625mW |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-223 |
| Polarity | Positive |
| Maximum Input Voltage | 26V |
| Quiescent Current | 1.5mA |
| Minimum Input Voltage | 2.5V |
| Pin Count | 4 |
Key Features
- The device features a quiescent current of 1.5 mA ensuring efficient performance.
- It operates with positive polarity and supports surface mount application.
- The regulator dimensions are 6.5 mm length, 3.5 mm width, and 1.6 mm height.
- The maximum operating temperature is rated up to 125°C for industrial reliability.
- It suits applications requiring a minimum input voltage of 2.5 V and a maximum output current of 100 mA.
- This SOT-223 package allows compact PCB integration.
- The device lacks automotive certification but is ideal for power management in electronic circuits.
- The MIC5200 series is designed for stable, low noise voltage regulation.
Product Description
Microchip MIC5200-5.0YS is a low dropout voltage regulator capable of delivering up to 625 mW power with a maximum input voltage of 26 V and housed in a compact SOT-223 4-pin surface mount package. This linear regulator operates with a quiescent current of 1.5 mA and supports a positive polarity output, making it suitable for precision voltage regulation in demanding electronic applications.
The device dimensions are 6.5 mm in length, 3.5 mm in width, and 1.6 mm in height. It is capable of operating reliably in temperatures up to 125°C, ensuring durability for industrial and commercial use cases. It delivers regulated output voltage with a maximum input voltage rating of 26 V and a minimum input voltage requirement of 2.5 V, supporting a maximum output current of 100 mA.
This voltage regulator is ideal for embedded systems, power management circuits, and electronic components requiring low dropout voltage regulation. The SOT-223 package allows integration into compact PCBs, optimizing space and thermal characteristics.
Quiescent current of 1.5 mA ensures energy efficiency. Surface mount SOT-223 4-pin package enhances PCB mounting. Positive polarity voltage regulation supports standard applications. Maximum operating temperature of 125°C for industrial robustness.
Power rating of 625 mW with regulated output voltage. Designed for applications with input voltages between 2.5 V and 26 V. Suitable for a wide range of electronics including power management IC implementations. No automotive standards compliance specified.
This Microchip MIC5200-5.0YS voltage regulator is essential for maintaining stable voltage supply in various electronics, including industrial, commercial, and laboratory equipment. Its compact form factor and reliable performance make it suitable for a broad range of power regulation applications.
Explore our extensive electronics and power management IC categories at EnvMart for compatible components and supplementary products.
Explore more products in our Voltage Regulators category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for this model is 26 V.
It supports a maximum output current of 100 mA.
The dimensions are 6.5 mm in length, 3.5 mm in width, and 1.6 mm in height.
The quiescent current is 1.5 mA, ensuring efficient performance.
It can operate reliably at temperatures up to 125°C.
This model supports positive polarity output.
The power rating of this voltage regulator is 625 mW.
It is suitable for embedded systems, power management circuits, and electronic components requiring low dropout voltage regulation.
It is designed for surface mount applications.
This model does not have automotive certification specified.
The country of origin is India.
