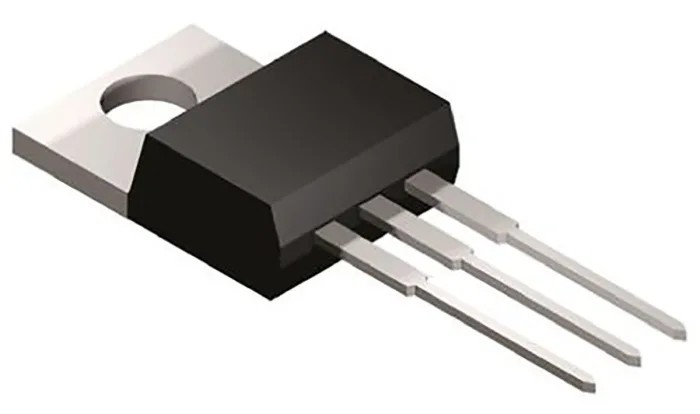

Microchip MIC2954-02WT 250mA Low Dropout Voltage Regulator, Positive Polarity, TO-220 3-Pin Package MIC2954-02WT
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators Microchip MIC2954-02WT, Voltage Regulator 30V TO-220 3-Pin RS Stock N |
| Brand | Microchip |
| Height | 9.17mm |
| Length | 10.67mm |
| Model | MIC2954-02WT |
| Width | 4.83mm |
| Mount Type | Through Hole |
| Series | MIC2954 |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Polarity | Positive |
| Maximum Input Voltage | 30V |
| Quiescent Current | 120μA |
| Minimum Input Voltage | 2V |
| Pin Count | 3 |
Key Features
- Operates with minimum input voltage of 2V and maximum input voltage of 30V.
- Features low quiescent current of 120μA for energy efficiency.
- Designed with a TO-220 through-hole 3-pin package for easy mounting.
- Can operate in temperatures up to 125°C, suitable for demanding applications.
- Ideal for use in power management applications requiring regulated voltage supply.
- The series MIC2954 ensures stable and reliable operation in electronic circuits.
- Compact dimensions with length 10.67mm, height 9.17mm, and width 4.83mm facilitate integration.
Product Description
Microchip MIC2954-02WT is a high-performance 250mA Low Dropout (LDO) Linear Voltage Regulator featuring positive polarity and packaged in a TO-220 3-pin through-hole design. The regulator supports an input voltage range from 2V up to a maximum of 30V, delivering stable output voltage regulation suitable for a wide range of electronic applications.
Its low quiescent current of 120μA optimizes power consumption, making it ideal for energy-sensitive designs. The MIC2954 series is engineered to operate reliably at temperatures as high as 125°C, allowing it to perform under demanding environmental conditions.
The compact physical dimensions (length: 10.67mm, height: 9.17mm, width: 4.83mm) and the common TO-220 package ensure easy through-hole mounting on printed circuit boards, simplifying assembly in industrial and commercial electronic products.
This voltage regulator finds extensive use in power management IC applications, ensuring a steady and regulated voltage supply in industrial equipment, laboratory instrumentation, embedded systems, and consumer electronics.
Operates with input voltages from 2V to 30V. Supports maximum operating temperature up to 125°C. Low quiescent current of 120μA for reduced power wastage. 3-pin TO-220 through-hole package for robust mounting. Positive polarity configuration for standard voltage regulation needs.
Compact dimensions facilitate integration in space-constrained designs. Widely applicable in power management and electronic component manufacturing.
Microchip products like the MIC2954-02WT are supported with detailed technical documentation and design resources, facilitating efficient design and collaboration for electronic engineers and developers. This makes it a dependable choice across the electronics industry, including industrial controls, automotive electronics, and consumer device manufacturing.
Explore more power management integrated circuits and Voltage Regulators from Microchip at EnvMart to support your next project with quality components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a minimum input voltage of 2V and a maximum input voltage of 30V.
The MIC2954-02WT can operate at temperatures up to 125°C, making it suitable for demanding applications.
It features a low quiescent current of 120μA, optimizing power consumption for energy-sensitive designs.
The MIC2954-02WT is packaged in a TO-220 3-pin through-hole design for easy mounting.
This unit has compact dimensions: length of 10.67mm, height of 9.17mm, and width of 4.83mm.
It features a positive polarity configuration, suitable for standard voltage regulation needs.
This voltage regulator uses a through-hole mounting type, facilitating robust installation on printed circuit boards.
It is widely applicable in power management IC applications, ensuring regulated voltage supply in industrial equipment and consumer electronics.
This model has a pin count of 3, corresponding to its TO-220 package design.
It is part of the MIC2954 series, designed for stable and reliable operation in electronic circuits.
The low dropout feature allows the regulator to maintain output voltage regulation even with a small difference between input and output voltage, enhancing efficiency.
The country of origin for the MIC2954-02WT is India.
