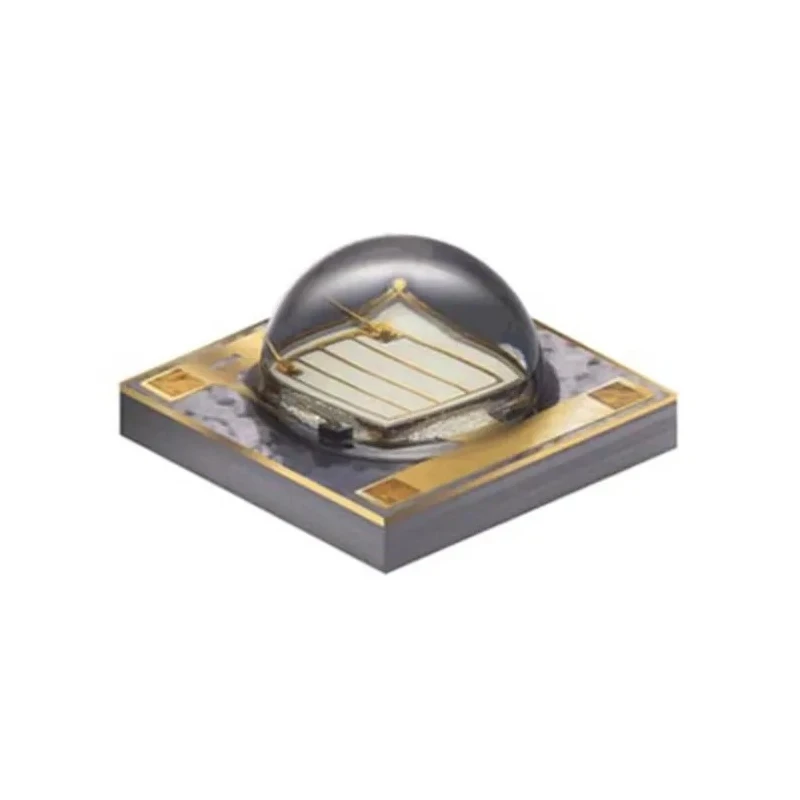

TSLC UV LED 390 nm 420 mW 125° Viewing Angle 2-Pin Surface Mount 3535 Package N3535U-UNL1-A1G11H-380
Specifications
| Country of Origin | Taiwan |
|---|---|
| Diameter | 2.6mm |
| Brand | TSLC |
| Height | 3mm |
| Length | 3.45mm |
| Model | N3535U-UNL1-A1G11H-380 |
| Packaging | Tape & Reel |
| Width | 3.45mm |
| Mount Type | Surface |
| Series | N3535U-UNx1 |
| Number Of Leds | 1 |
| Viewing angle | 125 ° |
| Package Type | 3535 |
| Number of Pins | 2 |
| Lens Shape | Dome |
| Peak Wavelength | 390nm |
| Radiant Flux | 420mW |
Key Features
- The LED has a viewing angle of 125 degrees, providing wide-area ultraviolet illumination.
- It features a dome-shaped lens for effective light dispersion.
- Compact 3535 SMD footprint with dimensions 3.45 mm length, 3.45 mm width, and 3 mm height.
- Highly reliable and suitable for UV curing and general UV applications.
- Single LED configuration with a 2-pin surface mount design.
- Manufactured in Taiwan, Province Of China, ensuring quality standards.
Product Description
TSLC N3535U-UNL1-A1G11H-380 is a high-performance ultraviolet (UV) LED designed with a peak wavelength of 390 nm and radiant flux of 420 mW. This UV LED belongs to the N3535U-UNx1 series and is housed in a compact 3535 surface mount device (SMD) package with a dome lens that offers a 125-degree wide viewing angle, making it ideal for uniform UV illumination.
The device utilizes a 2-pin configuration optimized for easy surface mount technology (SMT) assembly. Its compact size, measuring 3.45 mm length, 3.45 mm width, and 3 mm height, ensures versatile integration into a variety of electronic and optoelectronic applications.
TSLC's 3535 UV LED family is recognized for its high reliability and robust performance, suitable for industrial and commercial UV curing processes, as well as general ultraviolet light applications such as sterilization, sensing, and fluorescence excitation.
This product is packaged in tape and reel format, facilitating automated manufacturing processes and reducing handling times. The LED's dome lens enhances light output and viewing field. Its 125-degree beam angle supports wide-area coverage.
Single LED per package ensures precise and controlled lighting intensity. The compact SMD form factor simplifies PCB layout and assembly. Manufactured in Taiwan, Province Of China, under stringent quality controls.
TSLC continues to innovate UV LED technologies with this model, offering a reliable light source for industrial, laboratory, and electronics manufacturing sectors. The N3535U-UNL1-A1G11H-380 model provides a balance of power, efficiency, and size optimized for modern UV applications.
Explore additional UV LED options and complementary electronic components at EnvMart to meet diverse design and production needs.
Explore more products in our UV LEDs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak wavelength of this UV LED is 390 nm, making it suitable for various ultraviolet applications.
This model has a radiant flux of 420 mW, providing effective ultraviolet illumination for its intended applications.
The dimensions of this surface mount LED are 3.45 mm in length, 3.45 mm in width, and 3 mm in height.
The viewing angle of this UV LED is 125 degrees, allowing for wide-area ultraviolet illumination.
It is packaged in tape and reel format, which facilitates automated manufacturing processes and reduces handling times.
This model utilizes a surface mount design, optimized for easy assembly in electronic applications.
Each package contains a single LED, ensuring precise and controlled lighting intensity.
The lens shape of this UV LED is dome-shaped, which enhances light output and viewing field.
This UV LED belongs to the N3535U-UNx1 series, recognized for its high reliability and performance.
This product is manufactured in Taiwan, Province Of China, ensuring adherence to quality standards.
It is suitable for UV curing, sterilization, sensing, and fluorescence excitation applications.
This model features a 2-pin configuration, optimized for surface mount technology assembly.
