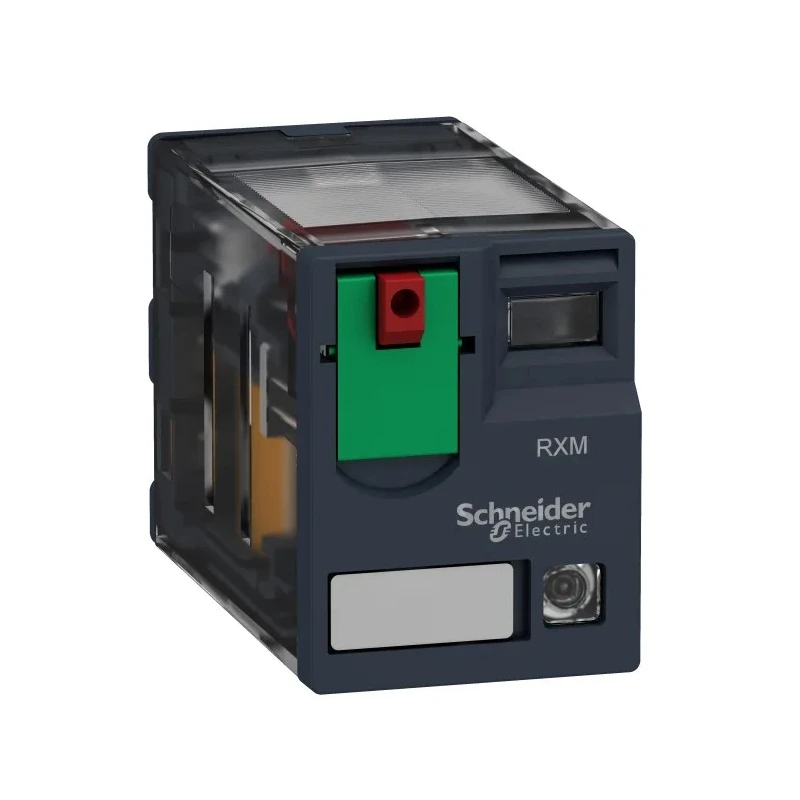

Schneider Electric Power Relay 24V AC Coil 10A Switching Current 3PDT RXM3AB2B7

Schneider Electric RXM3AB2B7 Power Relay is a compact miniature plug-in relay designed for industrial automation applications requiring reliable switching with 24V AC coil voltage and 10A current capacity. It features a 3PDT (triple pole double throw) contact configuration, allowing multiple simultaneous switching operations.

This relay supports switching AC voltages up to 250V and DC voltages up to 28V with a coil power consumption of 1.2W and coil resistance of 180Ω. It operates efficiently over a wide temperature range, from -40°C to 55°C, making it suitable for harsh industrial environments.

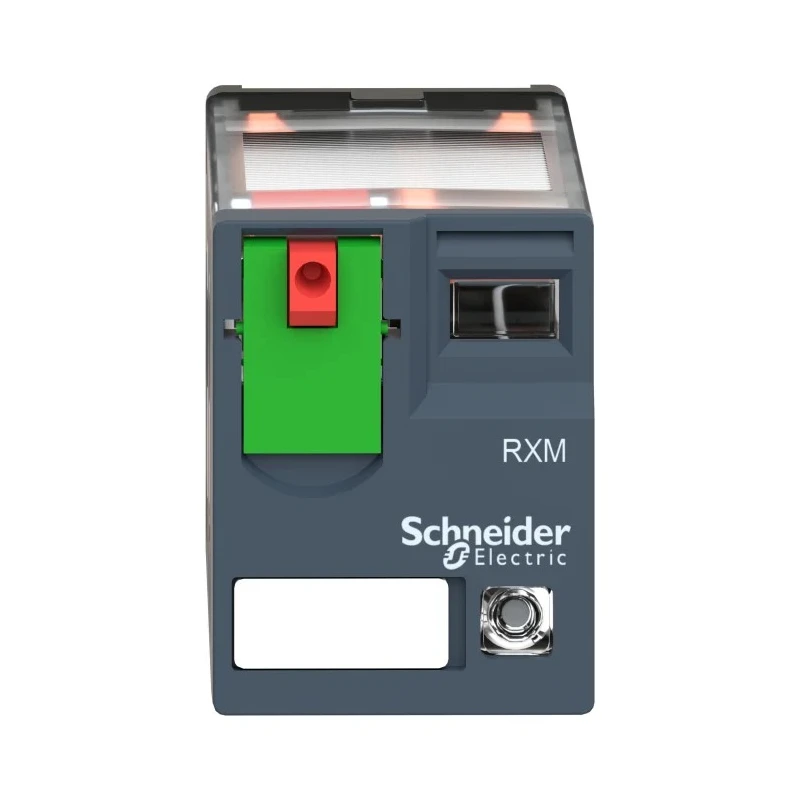

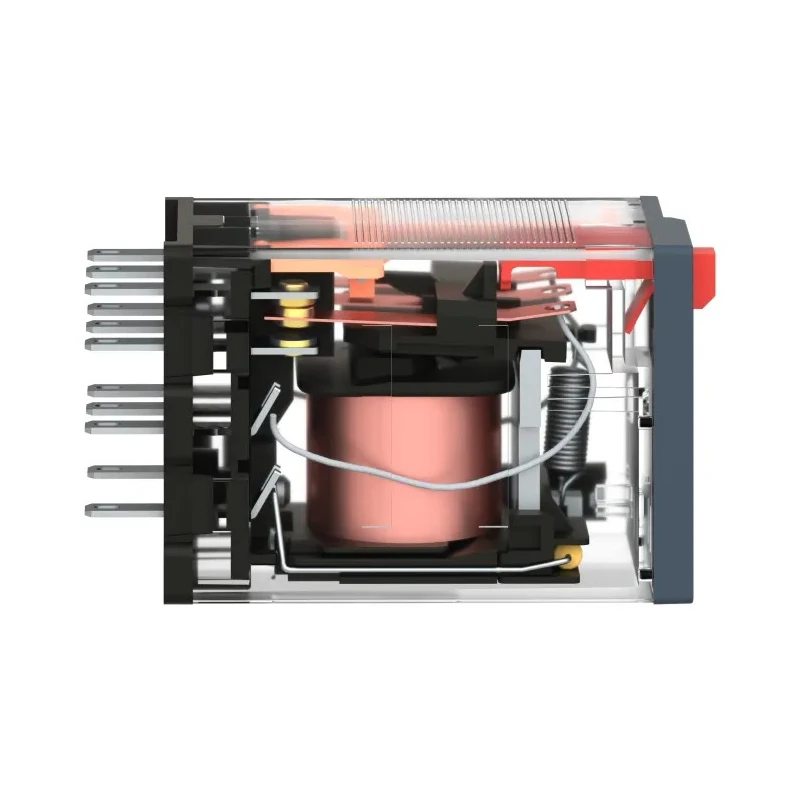

The RXM3AB2B7 includes an easy-to-use lockable test button and a "Power On" LED indicator to display operational status both day and night. Its transparent cover enables visual inspection of contacts, which helps in maintenance and diagnostics.

Its compact design with dimensions 47.7mm by 27mm by 21mm allows space-saving integration in electrical enclosures. The silver alloy contacts provide high reliability and conductivity for switching applications. The relay is rated IP40, protecting against solid foreign objects while enabling visibility of internal parts.

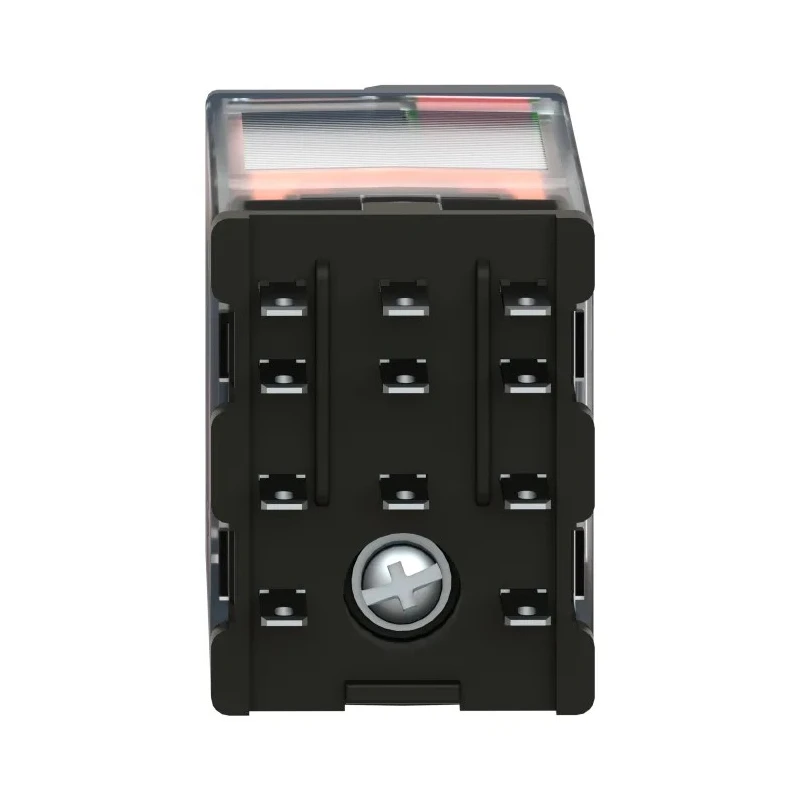

Designed to complement programmable logic controller (PLC) systems and hard-wired logic automated setups, it can be mounted using RXZE plug-in sockets with screw clamp, screw connector, or push-in terminals. Additional protection modules and marking legends are available for enhanced system integration.

The product meets international quality and safety standards including CE and CSA certifications and is manufactured in China. It is ideal for industrial, electrical automation, HVAC, manufacturing, and commercial electrical control systems requiring compact, reliable relay solutions.

Miniature relay with 24V AC coil voltage and 10A switching current. 3PDT contact configuration for versatile switching needs. Wide operating temperature range from -40°C to 55°C for harsh environments. Power on LED and lockable test button for status indication and testing.

Compact and space-saving design with transparent cover. Silver alloy contacts ensure durability and conductivity. Compatible with RXZE plug-in sockets and optional protection modules.
