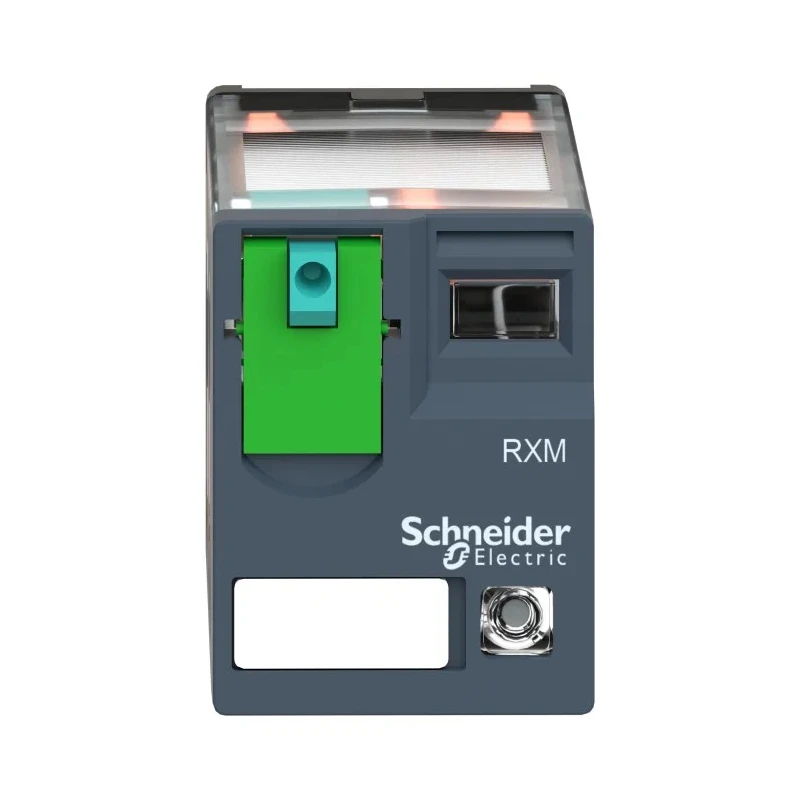

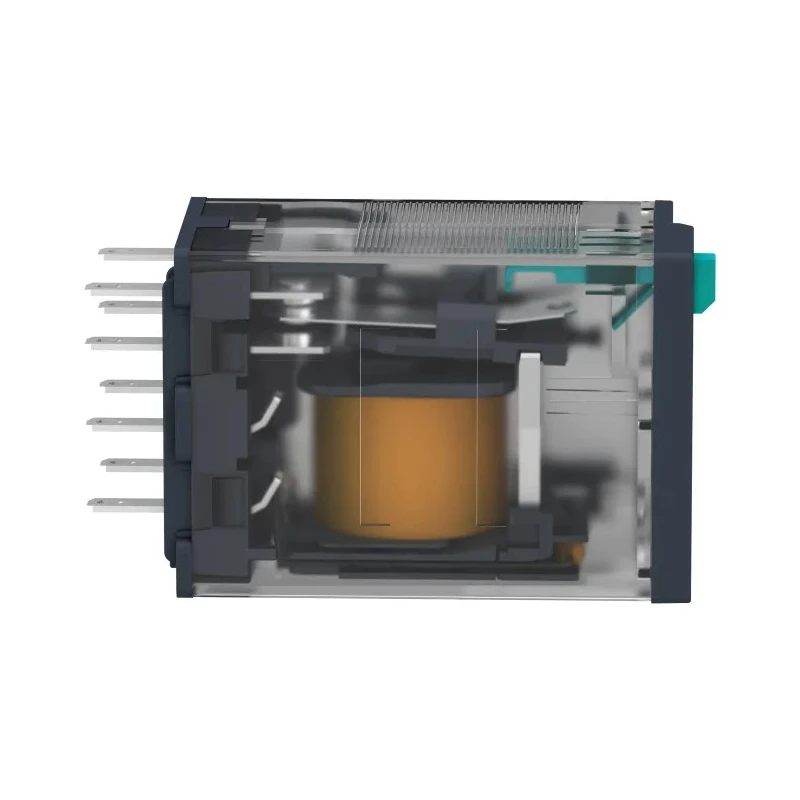

Schneider Electric Power Relay, 12V DC Coil, 12A Switching Current, DPDT RXM2AB2JD

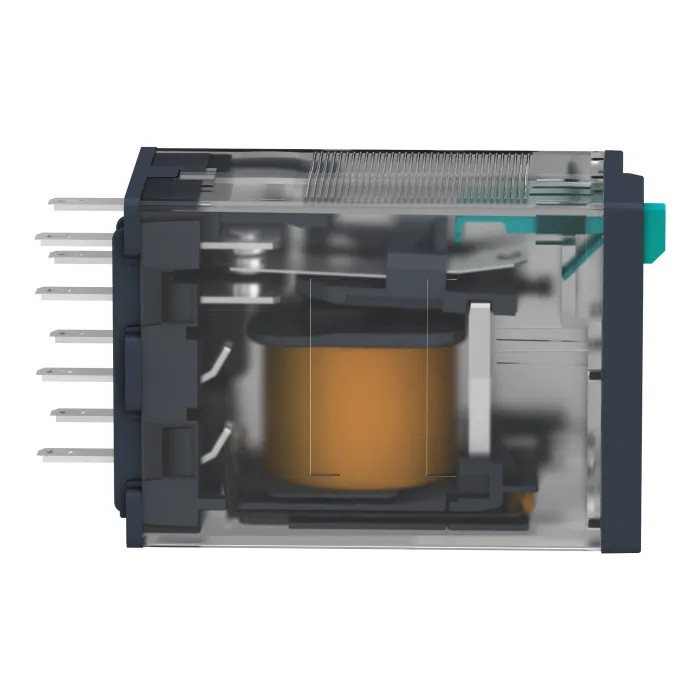

Schneider Electric RXM2AB2JD Power Relay is a robust electromechanical relay designed for industrial and commercial applications requiring reliable control and switching. This model features a 12V DC coil voltage and is capable of switching currents up to 12A with a double pole double throw (DPDT) contact configuration, making it suitable for complex automation systems.

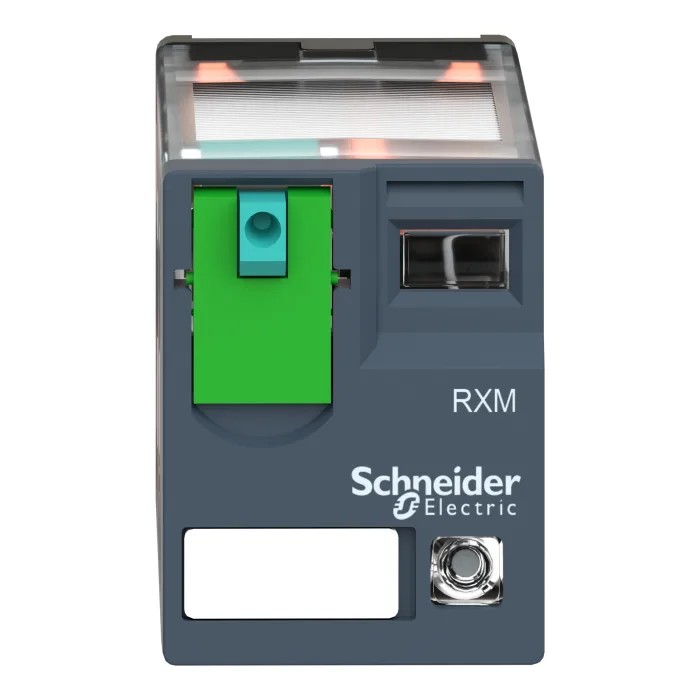

The relay is part of the renowned Harmony RXM series, known for compactness and reliable performance. It uses a plug-in terminal type designed for mounting on RXZE sockets and supports additional plastic or metal clamps for vibration protection. The relay also offers a one-step lockable test button, enabling easy testing and maintenance without circuit interruption. Mechanical indicators with an orange flag alongside a green LED provide clear visual feedback on the relay's operational status.

Measuring 47.7mm in width, 27mm in height, and 21mm in length, this miniature relay is compact yet robust. It is equipped with silver alloy contacts for excellent conductivity and long service life. The coil resistance is 160 ohms, consuming 900mW of coil power, and it operates effectively in temperatures ranging from -40°C to 55°C, making it suitable for harsh industrial environments.

This relay finds extensive application in industrial machines, packaging, textile machinery, HVAC systems, motor controls, PLC interfaces, power supplies, building equipment, and medical devices. Designed to comply with international standards such as IEC, CE, UL, CSA, EAC, Lloyd's, RoHS, and REACH, it represents a premium green product offering both performance and environmental compliance.

The RXM2AB2JD should be used with compatible RXZE sockets for assembly onto DIN rails or panel mounts. Accessories including protection modules and marking legends are also available separately to enhance installation and identification. Sold in lots of 10, the product listing includes the relay units only.

Part of Harmony Electromechanical Relay RXM series for reliable and compact switching. 12V DC coil voltage with 12A switching current capacity and DPDT contact configuration. Plug-in terminal type designed for RXZE sockets with optional vibration protection clamps.

Incorporates one-step lockable test button and mechanical contact status indicator with orange flag. Green LED indicator for clear and visible relay status in all lighting conditions. Silver alloy contact material ensures durability and consistent electrical performance.

Operational temperature range from -40°C to 55°C suits industrial conditions. Certified to meet international approvals including CSA and CE standards. Ideal for industrial machines, HVAC, automation control, and various electrical applications.

Sold in lots of 10, sold as relay units only without sockets or accessories. Explore the Schneider Electric range and related Power Relays available on EnvMart to find suitable components for your industrial and automation needs.
