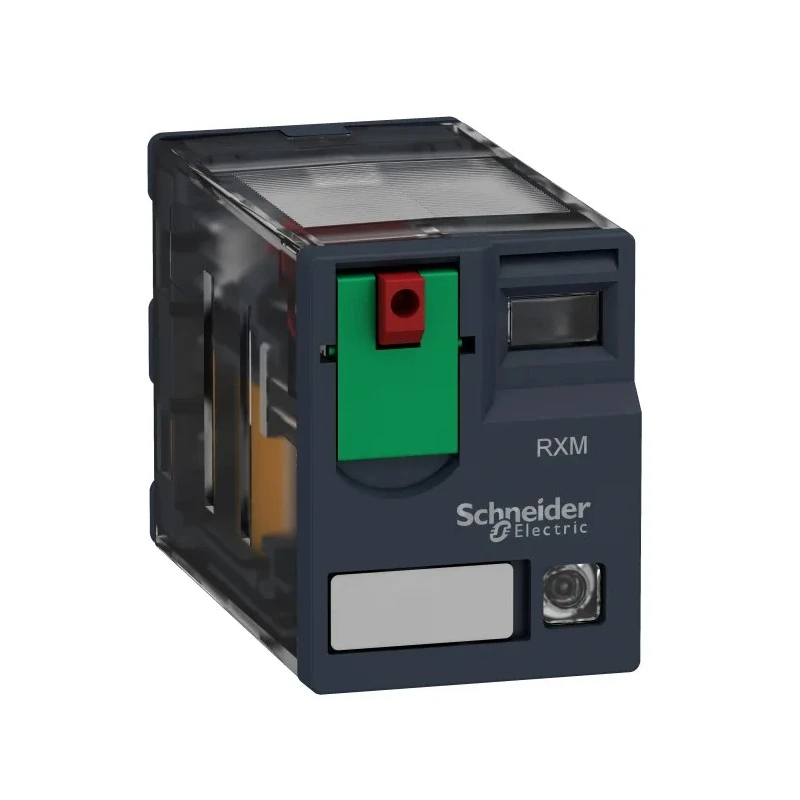

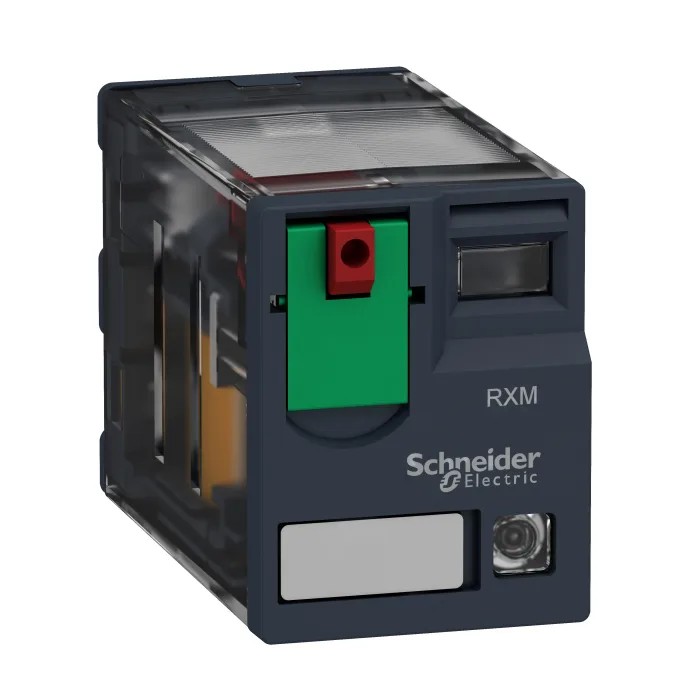

Schneider Electric Power Relay 48V AC Coil 12A Switching Current DPDT RXM2AB2E7

Schneider Electric RXM2AB2E7 is a high-performance power relay part of the Harmony Electromechanical Relay RXM series. This compact and robust plug-in relay features a 48V AC coil voltage and supports a 12A DPDT (Double Pole Double Throw) switching current, making it suitable for both simple and complex automation tasks.

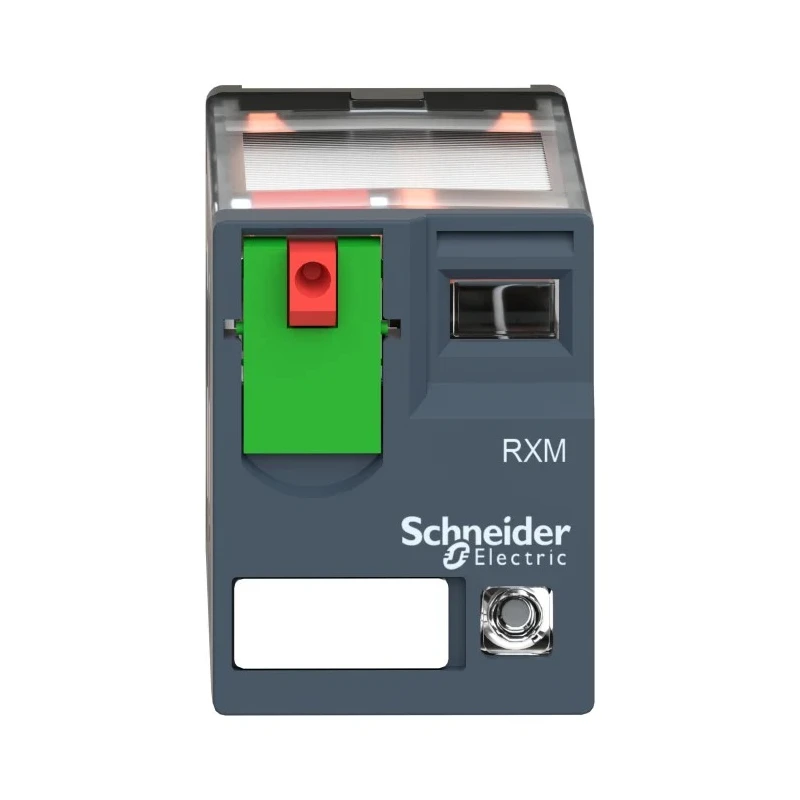

The relay integrates a one-step lockable test button and mechanical contact status indicator, allowing easy manual status checks. A green LED on the front panel illuminates when the relay coil is energized, enhancing visibility in industrial environments day and night.

This relay is designed for industrial applications including machinery, packaging lines, textile equipment, HVAC systems, automation control panels, low and medium voltage switchgear, motor control, PLC interfaces, power supplies, building management, medical equipment, and lighting controls.

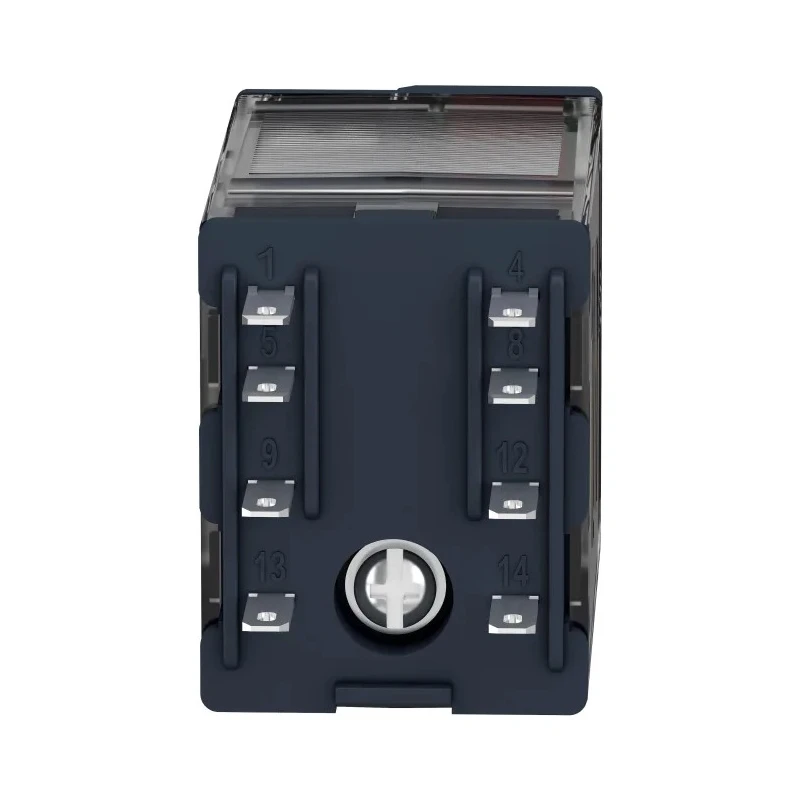

The RXM2AB2E7 is compatible with RXZE sockets using screw clamp, screw connector, or push-in terminals. Additional vibration protection can be provided via optional plastic or metal clamps, with other accessories such as protection modules and marking legends available.

It complies with international norms and certifications like IEC, CE, UL, CSA, EAC, Lloyd's Register, RoHS, and REACH, confirming its safety and environmental standards.

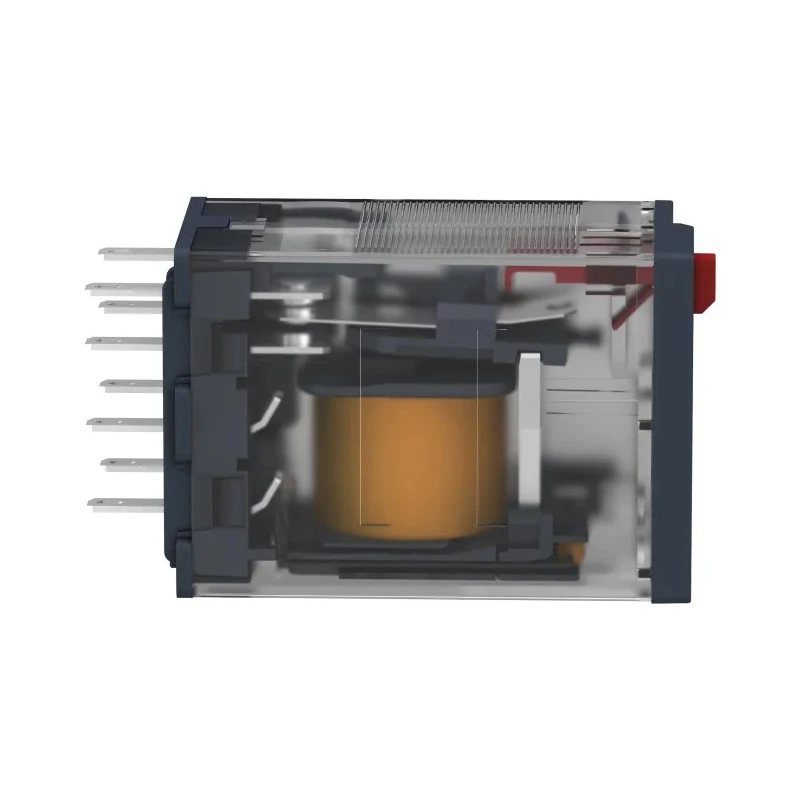

Manufactured with silver alloy contacts, this relay ensures durable and reliable switching. It operates efficiently with a coil power consumption of 1.2W and coil resistance of 710Ω, wide operating temperature range from -40°C to 55°C, and switching AC voltage up to 250V.

Compact plug-in construction with easy installation. Lockable test button for convenient manual status testing. Clear contact status visible via an orange mechanical flag and green LED indicator. Wide industrial applicability including automation, HVAC, motor control, and building equipment.

Designed for RXZE socket compatibility with vibration protection options. Conforms to multiple international standards and environmental certifications. Silver alloy contacts for enhanced switching reliability. Robust operating temperature range from -40°C to 55°C.

Dimensions optimized for compact industrial panels. Low coil power consumption for energy-efficient operation.

This high-quality power relay by Schneider Electric provides reliable and safe switching functions essential for modern industrial and commercial applications. Discover more products in the Power Relays category on EnvMart for your electrical and automation needs.
