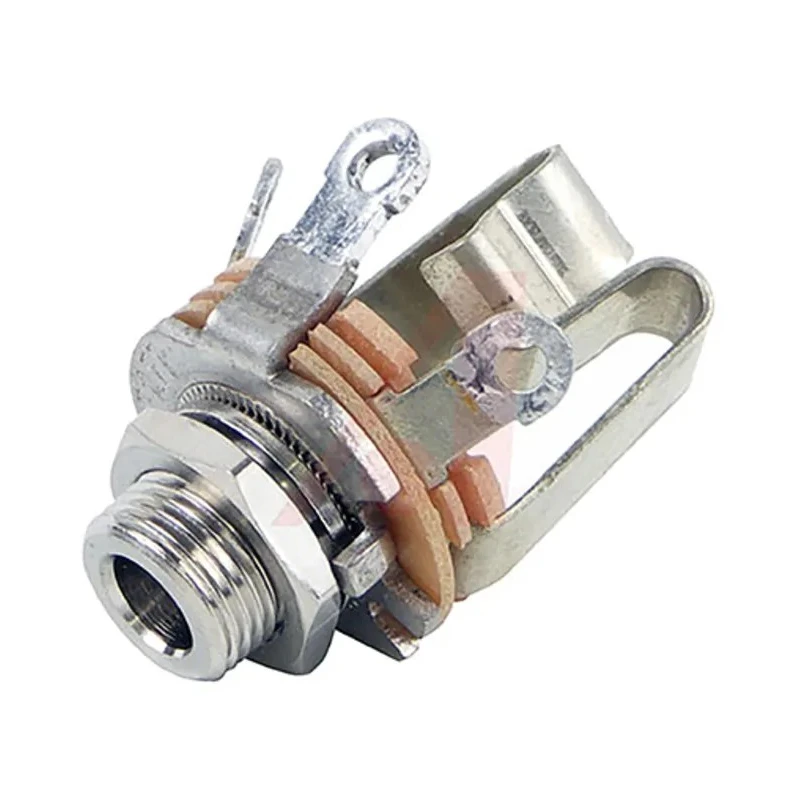

Switchcraft Jack Connector 5.34 mm Chassis Mount Panel Mount Male 3 Pole Stereo 25V dc 1A C12BX

Free Delivery in India | Lowest Global Shipping Charges

Switchcraft Jack Connector 5.34 mm Chassis Mount Panel Mount Male 3 Pole Stereo 25V dc 1A C12BX

Name: Switchcraft Jack Connector 5.34 mm Chassis Mount Panel Mount Male 3 Pole Stereo 25V dc 1A C12BX
Brand: SWITCHCRAFT
SKU: 135376
Price: 18.9 USD
Availability: InStock



Category Jack Connector Brand SWITCHCRAFT Condition New

Specifications

Country of Origin	United States
Voltage	25V dc
Size	5.34 mm
Brand	Switchcraft
Orientation	Straight
Current	1A
Model	C12BX
Number Of Ways	3
Mount Type	Chassis Mount, Panel Mount
Housing Material	Plastic
Contact Material	Copper Alloy
Series	MIL-Little-Jax
Sub Type	Stereo
Contact Plating	Nickel
Contact Gender	Female
Connector Gender	Male
Switchcraft Jack Connector Chassis Mount Open Frame Jack Socket, 3Pole 1ABrand	Switchcraft

Key Features

Features a chassis mount and panel mount design for versatile installation.
Provides 3 poles in a stereo configuration for reliable audio connection.
Constructed with plastic housing and copper alloy contacts for durability.
Nickel-plated contact surface ensures corrosion resistance and improved conductivity.
Designed for straight orientation with female contact gender and male connector gender.
Compatible with panels up to 5/32 inches thick for flexible mounting.
Operates safely at 25 volts DC and 1 amp current rating.
Part of the MIL-Little-Jax series known for ruggedness and high performance.

Product Description

Switchcraft C12BX Jack Connector is a high-performance 5.34 mm chassis and panel mount jack connector designed for reliable audio and signal applications. Featuring a 3-pole stereo male connector with a straight orientation, it supports 25 volts DC and a current rating of 1 amp, ideal for electronic instruments and amplifier interfacing in industrial and commercial settings.

The connector incorporates durable plastic housing combined with copper alloy contacts plated with nickel to ensure excellent conductivity and resistance to corrosion under demanding conditions. Its chassis mount design accepts installation into panels up to 5/32 inches thick, providing sturdy mechanical support and secure electrical connections.

Part of the respected MIL-Little-Jax series, this Switchcraft jack connector is manufactured in the United States, meeting stringent quality and reliability standards. It is specifically tailored for use in audio/video connectors, power connectors, and other electronic and electrical assembly applications requiring rugged and compact interconnect solutions.

Chassis mount and panel mount compatible for flexible installation. 3-pole stereo configuration for high-fidelity signal transmission. Nickel-plated copper alloy contacts for corrosion resistance and optimal performance.

Plastic housing ensures insulation and durability. Rated for 25 V dc and 1 A current, suitable for low-power electronic equipment. Straight orientation male connector with female contact gender. Compatible with panels up to 5/32 inches (4 mm) thick.

Part of the MIL-Little-Jax rugged connector series. Manufactured in the United States for industrial and laboratory use.

This Jack Connector is ideal for industrial tools, audio/video systems, laboratory instruments, and electronic equipment where secure and reliable connector interfaces are critical. Explore the wide selection of Switchcraft connectors available at EnvMart for your assembly and repair needs.
