TDK 100 mH Ferrite Power Line Choke Radial Mount 300mA DC Current 6.6Ω DC Resistance 250V AC B82731T2301A020

Free Delivery in India | Lowest Global Shipping Charges

TDK 100 mH Ferrite Power Line Choke Radial Mount 300mA DC Current 6.6Ω DC Resistance 250V AC B82731T2301A020



Category Inductors Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Height	21.1mm
Length	21.5mm
Model	B82731T2301A020
Depth	13.5mm
Packaging	Box
Mount Type	Radial
Series	B82731T
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Test Frequency	10kHz
Core Material	Ferrite
Maximum Voltage	250V ac
Inductance	100mH
Standards/Approvals	EN, ENEC, RoHS, UL, VDE
Maximum DC Current	300mA
Maximum DC Resistance	6.6Ω
Inductance Tolerance	-30 to 50 %
Termination Style	PC Pin
Maximum Self Resonant Frequency	10kHz
Lead Pitch	10mm
Lead Diameter	0.64mm

Key Features

Constructed with a ferrite core for high performance.
Maximum self-resonant frequency of 10 kHz allows effective noise suppression.
Rated for up to 250V AC voltage operation.
Compact dimensions with 21.5mm length and 21.1mm height.
Termination style is PC pin suitable for wave soldering processes.
Lead pitch measures 10mm with 0.64mm lead diameter.
Inductance tolerance ranges from -30% to +50% for reliable performance.
Operating temperature range from -40°C to 125°C ensures durability under varying conditions.

Product Description

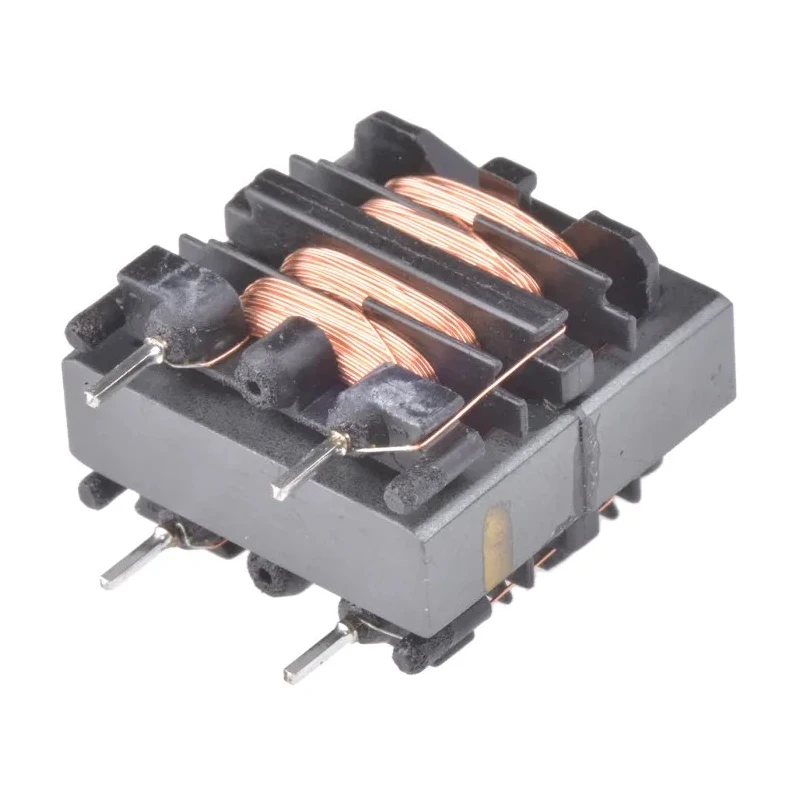

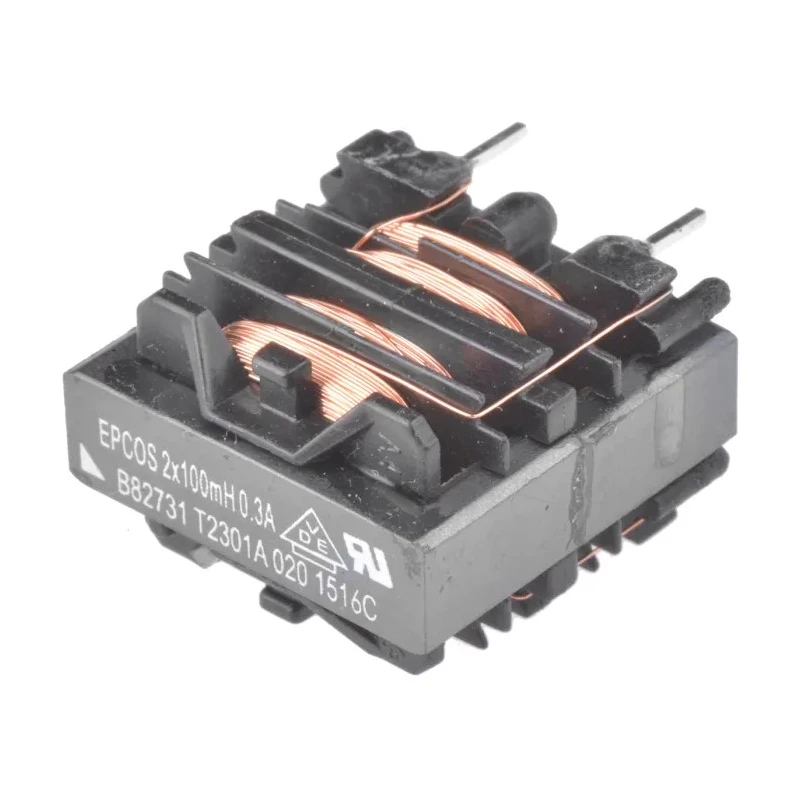

TDK B82731T2301A020 Power Line Choke exhibits a 100 mH inductance and is designed for radial mounting applications, handling maximum DC current of 300 mA with a DC resistance of 6.6Ω. This choke operates efficiently up to 250V AC and features a maximum self-resonant frequency of 10 kHz ensuring effective suppression of EMI noise sources.

Constructed around a ferrite core material with a closed E ferrite core and a 4-section winding on a PET coil former without encapsulation, this component offers excellent pulse strength and low acoustic noise, ideal for power line filtering applications in industrial and electronic environments.

Mechanical dimensions include a length of 21.5 mm, height of 21.1 mm, and depth of 13.5 mm, with PC pin termination style suited for wave soldering. Lead diameter is 0.64 mm with a 10 mm lead pitch facilitating reliable PCB insertion and mounting.

The inductance tolerance ranges from -30% to +50%, accommodating variations in manufacturing and operating conditions. It supports operation between -40°C and 125°C, making it robust for varied operational environments.

Certified to meet industry standards including EN, ENEC, RoHS, UL, and VDE, this power line choke is ideal for use in industrial power supply filtering, electronic equipment noise reduction, and other power management applications.

Ferrite core construction for high-frequency noise suppression. High resonance frequency with low stray inductance for symmetrical interference suppression. Designed for wave soldering and industrial PCB assembly processes.

Compliant with international safety and environmental standards. Packaged in boxes ensuring protection during transit and storage.

This TDK B82731T2301A020 Power Line Choke offers reliable electromagnetic interference filtering essential for power electronics, automotive electrical systems, and industrial machinery. Its robust electrical and mechanical characteristics ensure stable performance in demanding electronic designs.
