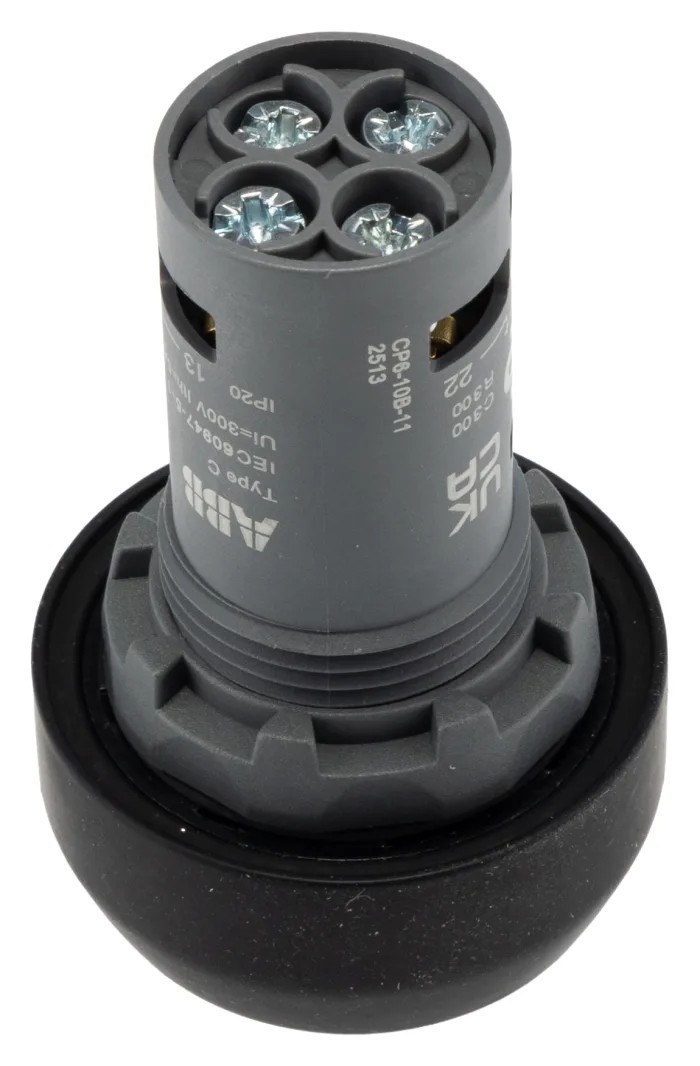

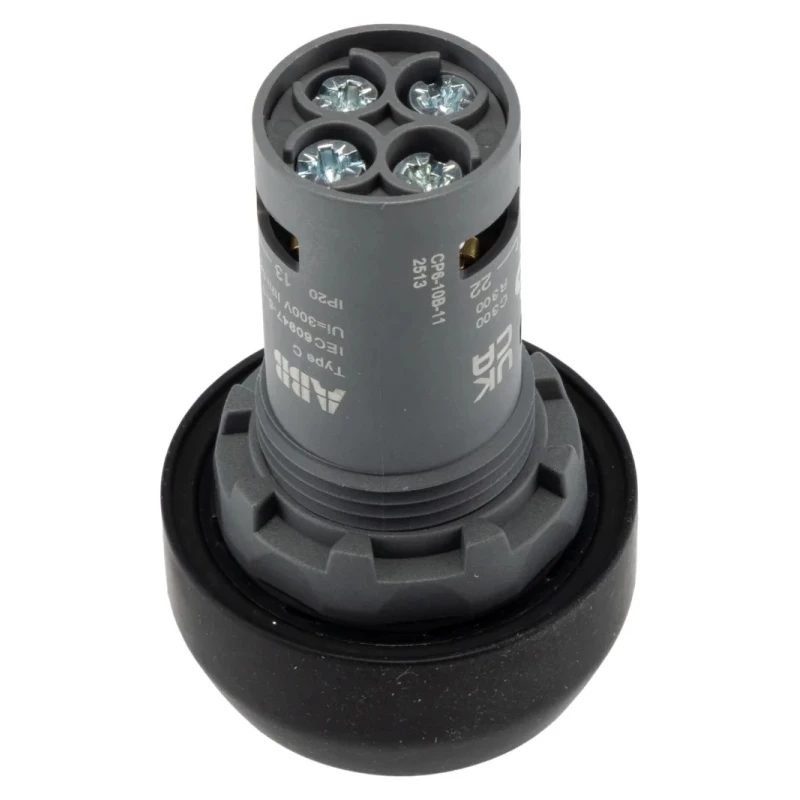

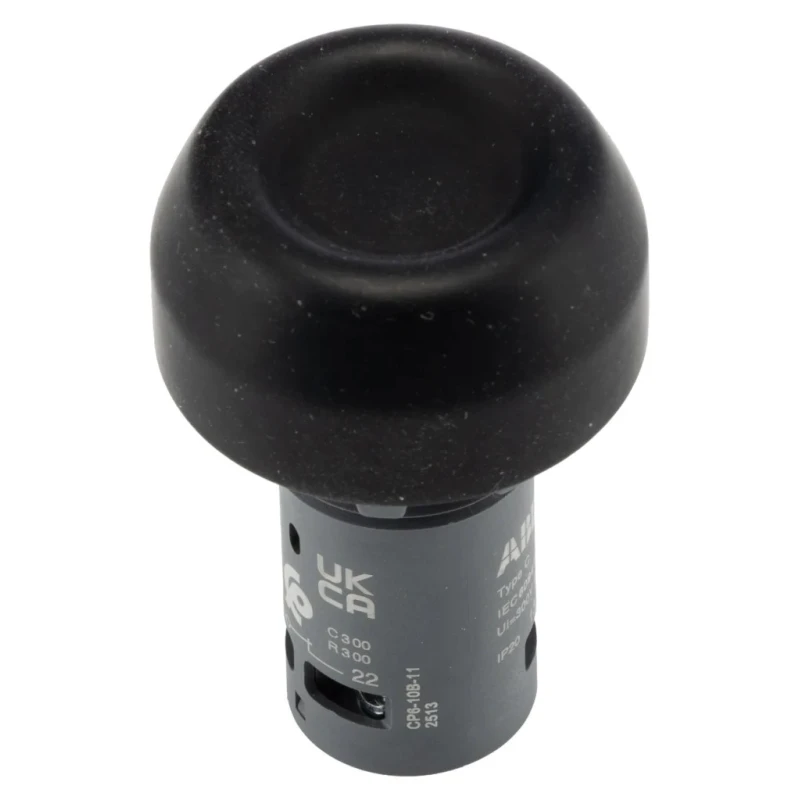

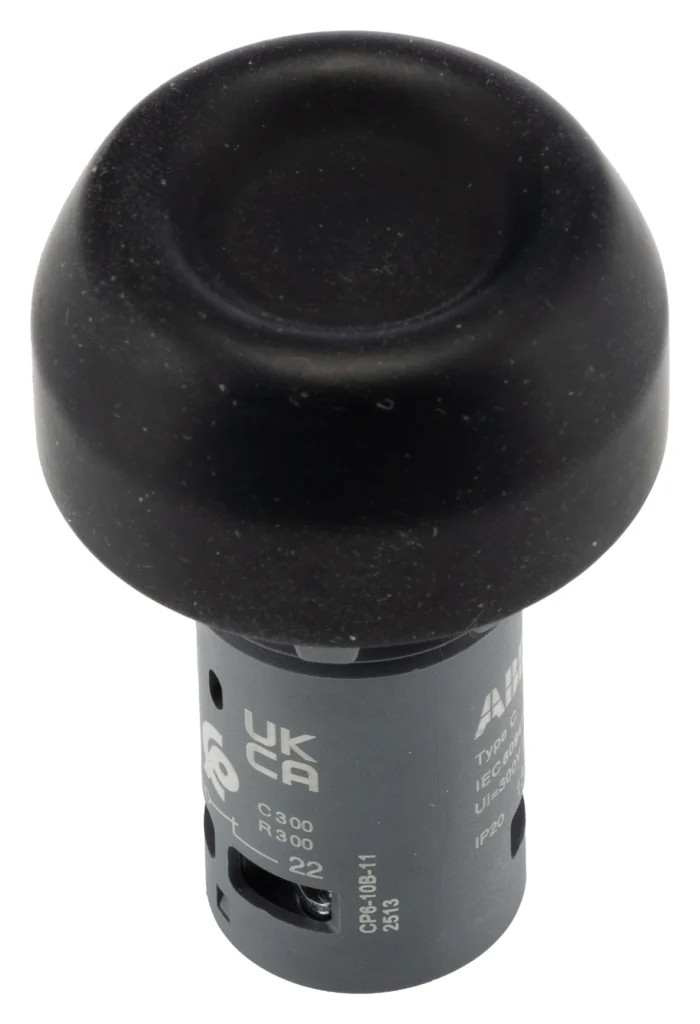

ABB Compact Series Momentary Push Button Switch, Panel Mount, 22 mm Cutout, 1 NO/1 NC Contact 1SFA619105R1076 CP6-10B-11

ABB 1SFA619105R1076 CP6-10B-11 Compact Series Push Button Switch is a heavy duty momentary switch designed for panel installation with a 22 mm cutout. It features 1 normally open and 1 normally closed contact configuration with cable terminal connections suited for reliable electrical control.

This switch supports DC voltage of 125 V and AC voltage up to 240 V with 2A maximum contact current, making it ideal for automotive, heavy industrial equipment, manufacturing plants, and electrical automation systems.

Its black round actuator is ergonomic and durable, mounted on a panel providing robust control functionality. The switch is extensively sealed, rated IP20, IP66, IP67, and IP69K, to withstand dust, water jets, and high-pressure wash downs encountered in industrial environments.

Designed to operate between -25°C and 70°C, this push button switch assures performance in demanding temperature conditions. The compact dimensions of 61 mm length by 37 mm width and height enable easy fitting in limited spaces.

Certified to IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60073, IEC/EN 60529, EN 50013, DIN 40050-9, UL 508, and CSA C22.2 No 14 standards, this ABB switch meets stringent safety and reliability requirements prevalent in industrial, commercial, and automotive sectors.

The switch operates momentarily to control electrical circuits reliably. Rated for 2A switch contact current suitable for various control circuits. Compact round actuator in black color for ergonomic and durable use. Robust protection with IP20, IP66, IP67, and IP69K for harsh environments.

Operating temperature range from -25°C to 70°C ensures versatile deployment. Panel mounting facilitates easy integration into control panels. Complies with international standards including IEC/EN 60947 series and UL 508.

Cable terminal type connection for straightforward wiring. Dimensions are 61 mm length, 37 mm width and height for compact installation. Suitable for automotive, heavy industry, manufacturing, and electrical automation uses.

Explore the ABB range in Push Button Switches for similarly robust and industrial-grade control components suited to a wide array of applications on EnvMart.
