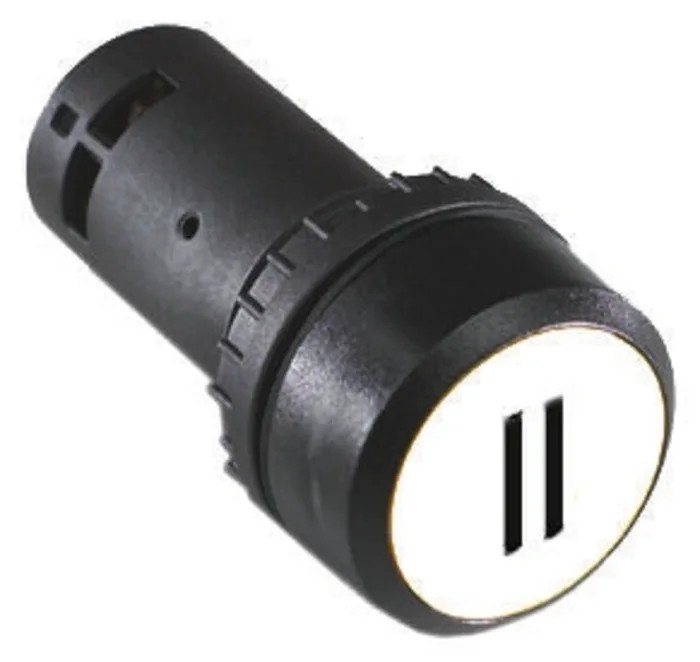

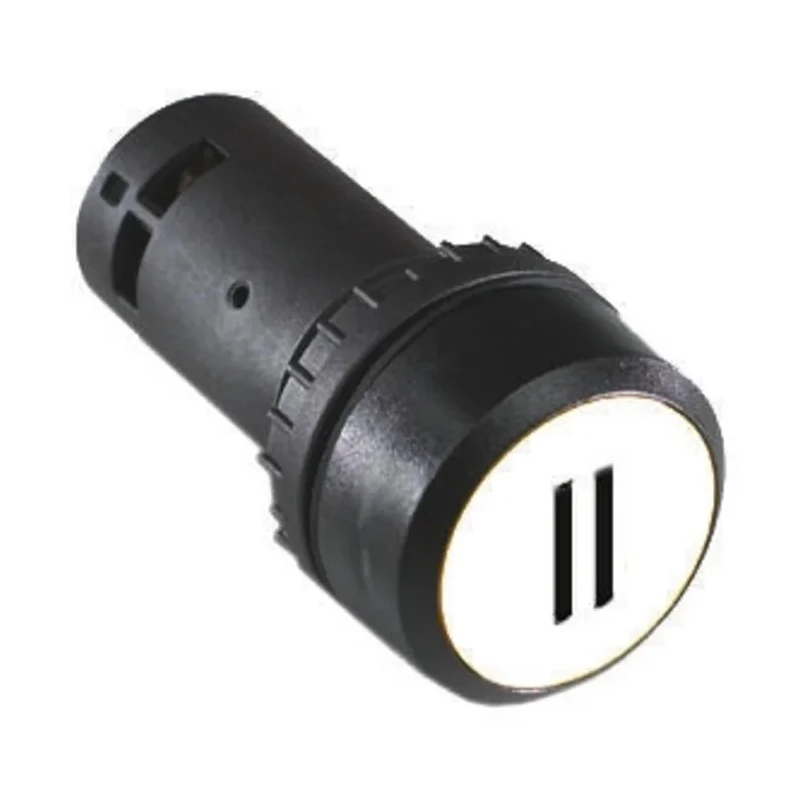

ABB Compact Series Illuminated Push Button Switch, Momentary, Panel Mount, 22 mm Cutout, SPST 1SFA619120R1015 CP12-10W-10



Category Push Button Switch Brand ABB Condition New

Specifications

Country of Origin	Sweden
Brand	ABB
Height	30mm
Length	55mm
Model	1SFA619120R1015 CP12-10W-10
IP Rating	IP69K
Width	30mm
Mount Type	Panel
Series	Compact
Maximum Operating Temperature	70°C
Contact Configuration	SPST
Minimum Operating Temperature	-25°C
Panel Cutout Size	22 mm
Terminal type	Screw
Switch Operation	Momentary
Actuator Colour	White
Actuator Style	Round

Key Features

The actuator is white and round in style for easy operation.
This switch is illuminated to provide visual status indication.
It has an IP69K rating, offering protection against dust and high-pressure water jets.
The switch supports a temperature range from -25°C up to 70°C.
Mounting is via a 22.5 mm hole compatible with the ABB Compact range.
Terminal connections use screw type to ensure secure wiring.
Complies with IEC 947-5-5, IEC 60 947-5-5, and EN 60204 standards.
Manufactured in Sweden ensuring high quality and reliability.

Product Description

ABB 1SFA619120R1015 CP12-10W-10 Compact Series Illuminated Push Button Switch is engineered for industrial and automation applications requiring reliable momentary control inputs. Designed with a white, round, illuminated actuator, this panel-mounted switch fits a 22 mm cutout, providing clear user feedback via its illumination feature.

This SPST (Single Pole Single Throw) switch delivers dependable switching with secure screw terminal connections. Its robust IP69K ingress protection rating guarantees resistance to dust and water jets, making it suitable for harsh environments, including industrial automation, manufacturing plants, and electrical control panels.

Operating within a temperature range of -25°C to 70°C, the switch suits diverse climatic and operational conditions. The compact dimensions (55 mm length, 30 mm width, 30 mm height) ensure ease of integration within confined panel spaces. Compliance with IEC 947-5-5, IEC 60 947-5-5, and EN 60204 certifications confirm its adherence to stringent safety and performance standards.

This switch is part of the ABB 22.5 mm Compact range, offering a comprehensive and cost-effective solution for users seeking reliability and versatility in push button components. Its illuminated feature aids operators in visually monitoring control panel states.

The actuator is white and round in style for easy operation. This switch is illuminated to provide visual status indication. It has an IP69K rating, offering protection against dust and high-pressure water jets. The switch supports a temperature range from -25°C up to 70°C.

Mounting is via a 22.5 mm hole compatible with the ABB Compact range. Terminal connections use screw type to ensure secure wiring. Complies with IEC 947-5-5, IEC 60 947-5-5, and EN 60204 standards. Dimensions are 55 mm length, 30 mm width, and 30 mm height for compact installation.

Manufactured in Sweden ensuring high quality and reliability. Users can explore the extensive ABB Compact Series for compatible components and accessories on EnvMart.
