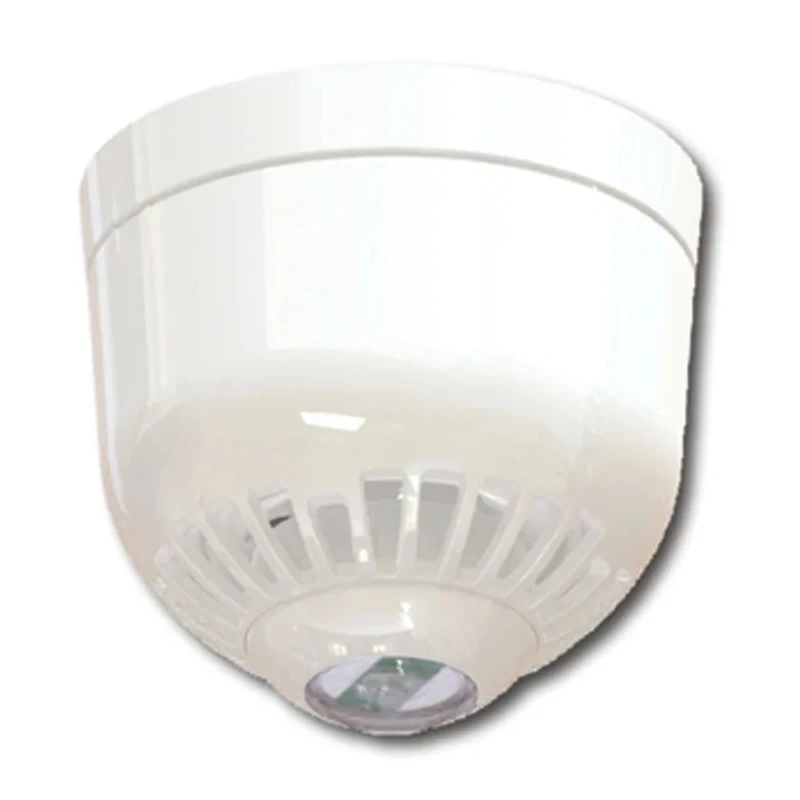

Klaxon Sonos Pulse Series White Sounder-Beacon Combination IP65 IP21 60V DC 97dB Electronic ESC-5005

Klaxon ESC-5005 Sonos Pulse Series White Sounder-Beacon Combination is a high-performance visual alarm device designed for industrial, commercial, and institutional alarm signaling applications. It combines audible and visual alarm functions meeting the stringent requirements of EN54-3 and EN54-23 standards. Equipped with patented Pulse Alert Technology, this device maximizes system efficiency by minimizing power consumption while maintaining a powerful 97dB(A) sound output at one meter.

The beacon produces a synchronized white flashing LED light that enhances safety by protecting individuals susceptible to photosensitive epilepsy. Its robust flame retardant polycarbonate housing provides weatherproof capabilities with IP65 rating for deep base and IP21 for shallow base, making it suitable for harsh environments. It can be mounted on walls or ceilings and is compatible with both shallow and deep bases.

Powering the unit is a 60V DC supply with low current consumption of 20mA, ensuring economical operation. The device supports simple upgrades through wire-to-base technology and emits no surge current, enhancing system reliability. Operating temperature spans from -10°C to 70°C, suitable for diverse installation scenarios including factories, offices, hotels, and machine shops.

The compact design features cable entries with 2 x 20mm cable glands on the deep base. With coverage areas of up to 11.3 meters for wall mount and 15 meters for ceiling mount, the Sonos Pulse minimizes the number of beacons needed for effective alarm signaling. Available in white housing and white flashing lens, this sounder-beacon combination is an industry-trusted alarm signalling solution built to provide consistent and effective performance.

Incorporates patented Pulse Alert Technology for optimum system efficiency and low power consumption. EN54-3 and EN54-23 compliant visual and audible alarm signaling device. Weatherproof IP65 (deep base) and IP21 (shallow base) rated polycarbonate housing.

Synchronised flashing white LED beacon protects people prone to photosensitive epilepsy. Wall or ceiling mount options with white lens and housing. Low current consumption of 20mA at 60V DC supply voltage. Coverage up to 11.3m on walls, 15m on ceilings reduces device count.

Operating temperature range from -10°C to 70°C suits industrial environments.

Klaxon Sonos Pulse Series Sounder-Beacon Combinations are suitable for use in industrial, laboratory, commercial, manufacturing, and HVAC safety systems. They provide robust alarm signalling in safety-critical environments requiring reliable audible and visual warnings. Browse more Sounder Beacons and automation signalling devices at EnvMart for complementary industrial safety solutions.
