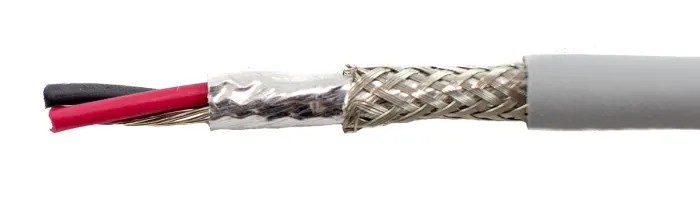

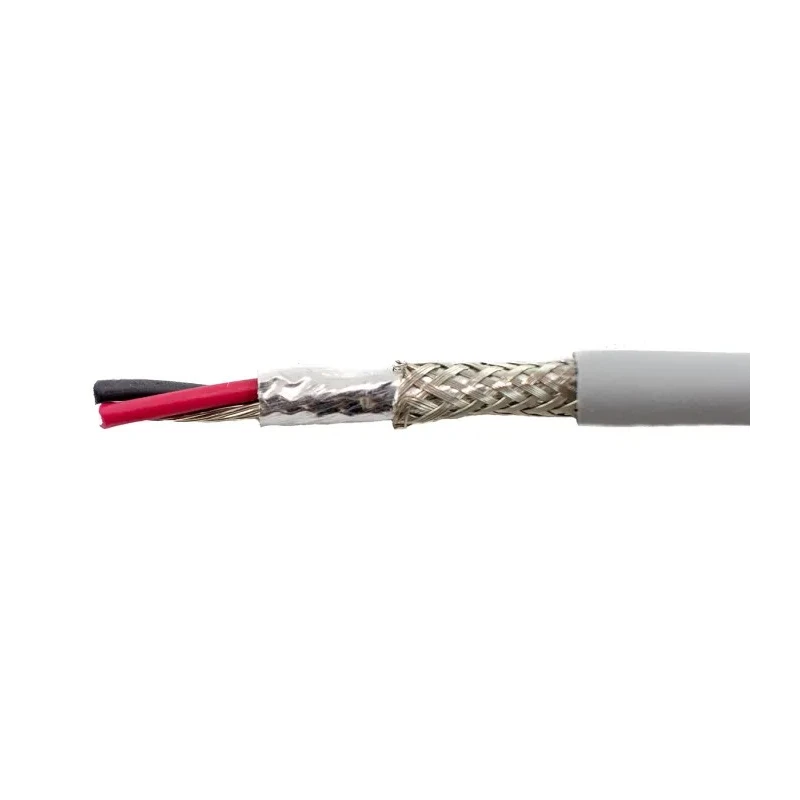

Alpha Wire Ecogen Ecocable Mini Screened Control Cable 2 Cores 0.38mm² 22 AWG 300 V 30 m mPPE Jacket 78332 SL005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Model | 78332 SL005 |
| Cable Length | 30m |
| Series | Ecogen Ecocable Mini |
| Outside diameter | 3.99mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 2 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.007 (0.18 mm) |
| Nominal Diameter | 0.157 inch (3.99 mm) |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Modified Polyphenylene Ether |
| Standards/Approvals | UL, CE, CSA |
| Jacket Colour | Grey |
| Fire Behaviour | Halogen Free |
| American Wire Gauge | 22AWG |
| Screened/Unscreened | Screened |
| Number of Strands | 19 |
| Core Strands | 19 x 0.16mm |
| Size of Strands | 0.16mm |
| Cable CSA | 0.38mm² |
| Conductors | 2, Black, Brown |
| Jacket Thickness | 0.015 inch (0.38 mm) |
| Stranding | 19/34 |
Key Features
- The cable has 2 cores with tinned copper wire conductor ensuring durability.
- The grey mPPE jacket offers excellent chemical and temperature resistance.
- Screened with Supra-Shield foil and braid for superior EMI protection.
- Rated for operation in temperatures from -40°C to 80°C.
- Halogen-free and fully recyclable for environmentally friendly use.
- Complies with UL, CE, and CSA standards ensuring high safety and quality.
- The cable length is 30 meters and nominal diameter is 3.99 mm.
- Stranding of 19 strands per core with 0.16 mm strand size enhances flexibility.
Product Description
Alpha Wire 78332 SL005 Ecogen Ecocable Mini screened control cable is designed for industrial, automation, and communication control applications requiring reliable signal transmission and EMI protection. Featuring 2 cores of 0.38mm² (22 AWG) tinned copper conductors, this cable delivers excellent electrical performance.
The cable is sheathed in a grey modified polyphenylene ether (mPPE) jacket that provides superior chemical resistance, mechanical strength, and a smaller, lighter form factor compared to conventional cables. This eco-friendly cable is halogen free and fully recyclable, making it suitable for environmentally sensitive projects.
The Supra-Shield foil and braid shielding construction combines triple layer aluminium/polyester/aluminium foil with a tinned copper braid shield for superior noise rejection, ensuring clean and interference-free data or signal transmission. The cable is rated for 300 V and operates reliably between -40°C and +80°C, making it adaptable to a wide range of industrial environments.
The cable has 2 cores, color-coded black and brown for easy identification. Tinned copper wire conductors improve corrosion resistance and durability. The mPPE jacket and insulation allow for a lightweight, thin cable design with reduced diameter.
Its halogen-free and low outgassing properties boost safety in industrial settings. UL AWM 21460, UL VW-1, CSA I A/B FT1, CE, and RoHS certified for compliance to high safety standards. Nominal cable diameter is 3.99 mm, with jacket thickness of 0.38 mm and insulation thickness of 0.18 mm.
Stranding consists of 19 strands of 0.16 mm diameter per conductor ensuring excellent flexibility. Designed for communication cables, radio transmitters, telecommunication networks, electronic circuits, and industrial automation systems.
Suitable for NFPA 79 applications protecting operators and equipment from electrical hazards and fire risks.
Alpha Wire's Ecogen Ecocable Mini 78332 SL005 is a versatile and high-quality screened control cable tailored for demanding electrical and automation environments requiring performance, durability, and environmental sustainability. Discover this and other high-grade Control Cables at EnvMart to optimize your industrial and electrical installations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this control cable is 80°C.
This model is rated for a voltage of 300 V.
The cable length is 30 meters, and its nominal diameter is 3.99 mm.
The conductors are made of tinned copper wire, and the jacket is made of modified polyphenylene ether (mPPE).
This cable has 2 cores, which are color-coded black and brown for easy identification.
It features Supra-Shield foil and braid shielding for superior EMI protection and noise rejection.
Yes, this cable is halogen-free, enhancing safety in industrial environments.
The cable complies with UL, CE, and CSA standards, ensuring high safety and quality.
The conductors consist of 19 strands of 0.16 mm diameter per core, enhancing flexibility.
The insulation thickness is 0.18 mm, and the jacket thickness is 0.38 mm.
This cable is manufactured in India.
This control cable is designed for industrial, automation, and communication control applications requiring reliable signal transmission.
