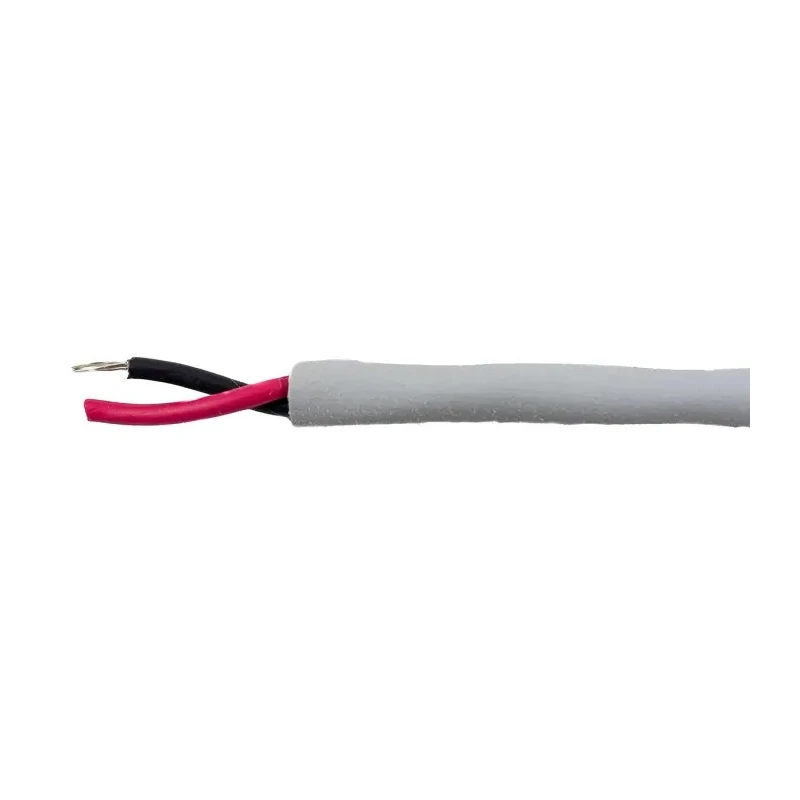

Alpha Wire EcoCable Mini 300 V Unshielded Control Cable, 2 Cores, 0.15mm² 26 AWG, 30 m, Grey Modified 78012 SL005

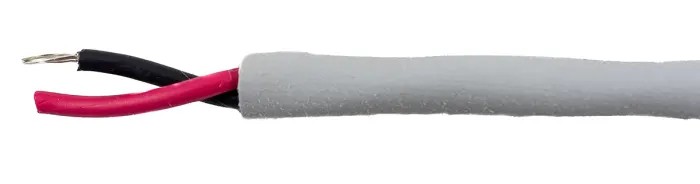

Alpha Wire 78012 SL005 EcoCable Mini Control Cable is a 2 core, 0.15mm² (26 AWG) unshielded multiconductor cable designed for 300 V operation and supplied in 30 meter reels. It features tin copper conductors and a jacket made of grey modified polyphenylene ether (mPPE) that offers excellent dielectric properties, thermal stability, and environmental resistance.

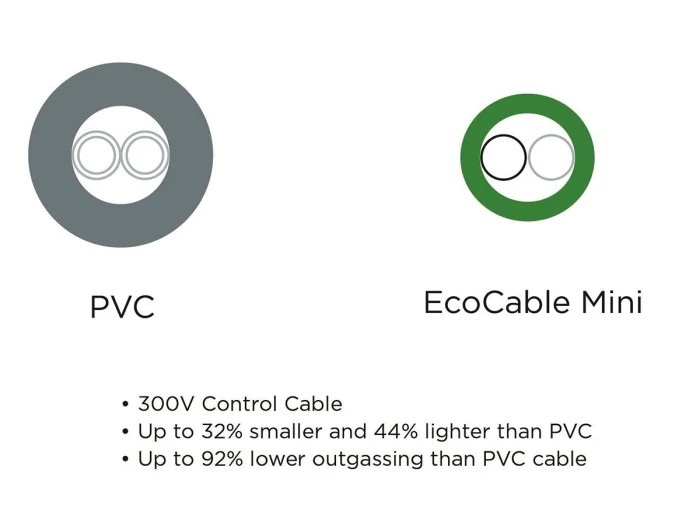

The EcoCable Mini cable jacket and insulation are halogen free and have a specific gravity of 1.03, contributing to a cable up to 65% lighter and thinner than traditional PVC counterparts. The temperature rating ranges from -40°C minimum to +80°C maximum, making it suitable for use in harsh industrial environments.

The cable is constructed with 19 strands per conductor, each strand 0.102 mm in diameter, creating a flexible yet durable conductor core. The overall nominal diameter of the cable is 2.59 mm, with jacket thickness of 0.38 mm and insulation thickness of 0.18 mm.

Alpha Wire EcoCable Mini is certified under multiple standards including CE, CSA, and UL, meeting industry requirements for reliability and safety in control and communication cable applications. It is compliant with environmental directives such as RoHS, REACH, and WEEE, and designed for applications in industrial automation systems, telecom, radio transmitters, and electronic circuits.

This environmentally responsible cable offers zero halogens and low outgassing, ensuring safe usage in equipment where fire and contamination risks must be minimized. The reel length of 30 meters is suitable for custom installations and wiring tasks.

This control cable features tinned copper wire conductors for enhanced corrosion resistance. The grey modified polyphenylene ether (mPPE) jacket provides excellent thermal and dielectric properties. Cable is halogen free and suitable for temperatures ranging from -40°C to +80°C.

The 19 strand conductor construction offers flexibility and durability for industrial applications. EcoCable Mini design ensures the cable is up to 65% lighter and thinner than conventional equivalents. The cable is unscreened for general control and communication use.

Nominal diameter is 2.59 mm with a jacket thickness of 0.38 mm. Certified to CE, CSA, and UL standards for safety and performance. Suitable for industrial automation, telecommunications, and electronic circuit applications.

The cable is fully recyclable and complies with RoHS, REACH, and WEEE environmental standards.

This Alpha Wire control cable is an excellent choice for industrial, laboratory, manufacturing, automation, and communication system applications that demand lightweight, durable, and environmentally safe cable solutions. Browse our selection of Control Cables and related industrial electrical products at EnvMart.
