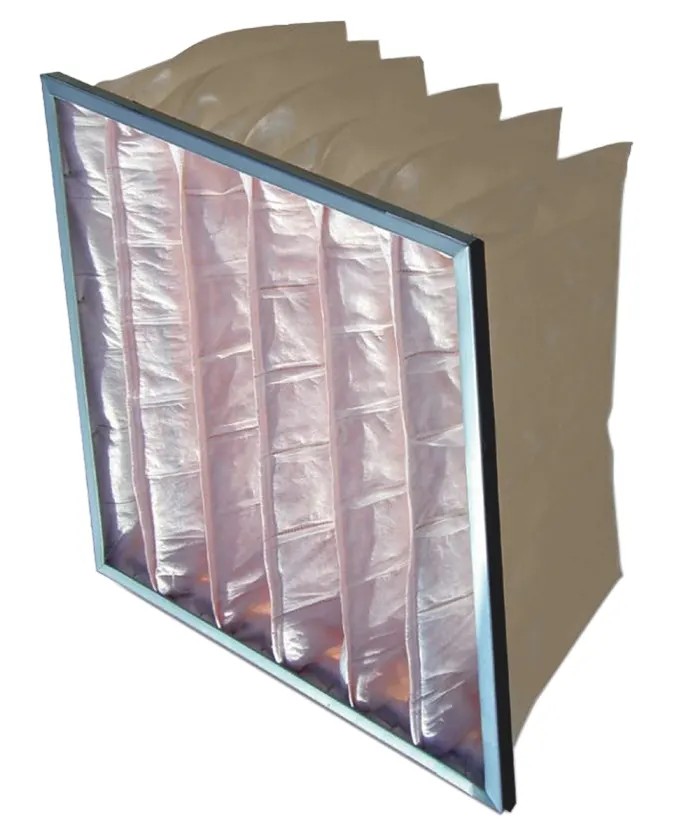

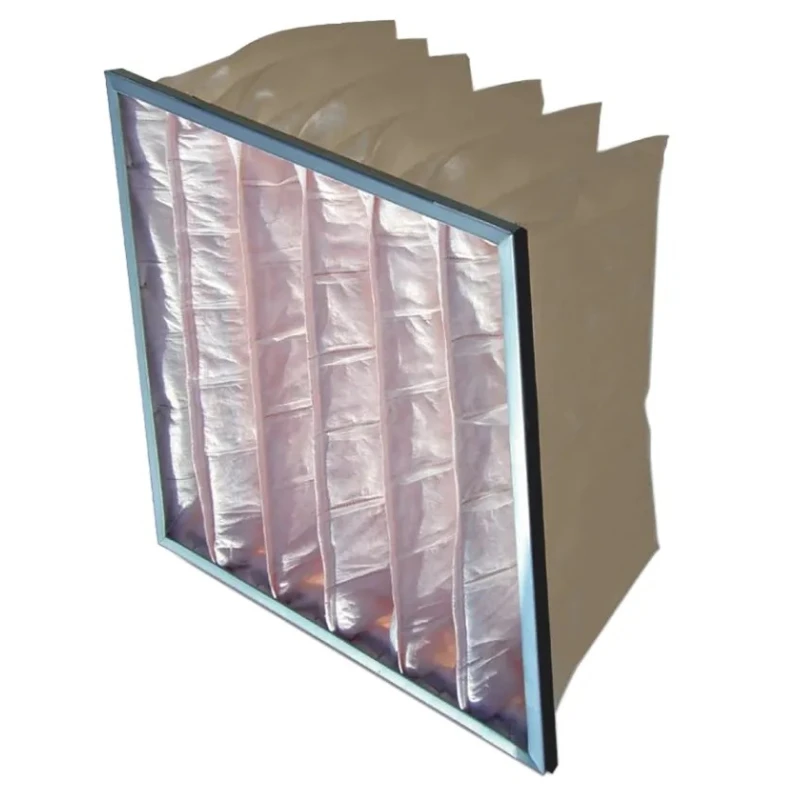

RS PRO Ultraseal Series Polypropylene Bag Filter F5 Grade 11 MERV Rating 592x592x500mm 827-9633

RS PRO 827-9633 Ultraseal Series Polypropylene Bag Filter is a high-quality HVAC air filter designed to provide medium efficiency filtration with F5 grade and MERV 11 rating. Manufactured in the United Kingdom, this filter is ideal for a variety of sensitive and commercial indoor environments including administrative buildings, hospitals, theatres, computer rooms, and spray booths.

The filter features 100% polypropylene synthetic media mounted securely into a galvanised steel header frame. The media is hydrophobic, allowing it to perform efficiently in damp atmospheres. Safety is enhanced with rolled safety edges on the frame that prevent damage to the filter material and ensure safe handling during installation.

Six ultrasonically welded pockets provide leak-free seams, promoting reliable air filtration performance. An extra built-in pre-filter layer extends the filter's life span by capturing larger particles before they reach the main filtration media. The triple layered polypropylene media is totally non-toxic and non-irritant, making it safe for indoor air environments.

Technical specifications include a maximum air flow rate of 71.51 cubic meters per hour and an initial pressure drop of 63 Pa with a final pressure drop of 250 Pa. The filter dimensions are 592 mm width, 592 mm height, and 500 mm depth, with nominal measurements slightly larger at 609.6 mm by 609.6 mm by 508 mm. The header size measures 20 mm. The unit comes in a grey color and complies with standards including BS EN, ISO, RoHS, and Eurovent certification. It carries an energy rating G greater than 1300 kWh, reflecting its energy efficiency at maintaining indoor air quality.

This Ultraseal series bag filter is highly versatile and suitable for HVAC air filtration systems requiring medium efficiency to improve air quality in commercial and institutional settings. Its robust construction and material choice ensure long-lasting durability and consistent performance.

Constructed with polypropylene filter media for durability and performance. Features 6 ultrasonically welded pockets ensuring leak-free seams. Galvanised steel header frame with rolled safety edges for protection and easy installation.

Hydrophobic media suitable for damp environments. Provides medium efficiency filtration suitable for offices, hospitals, computer rooms, and spray booths. Dimensions are 592 mm width, 592 mm height, and 500 mm depth. Meets BS EN 779:2012 standard with F5 grade and rated MERV 11 to ASHRAE 52.2.

Maximum air flow of 71.51 cubic meters per hour with initial pressure drop of 63 Pa. Eurovent energy rating of G greater than 1300 kWh for energy efficiency. Color is grey with a nominal header size of 20 mm and nominal dimensions of 609.6x609.6x508 mm.

For industrial, commercial, and institutional HVAC applications demanding reliable medium efficiency air filtration, the RS PRO Ultraseal Polypropylene Bag Filter provides superior performance. Explore the EnvMart HVAC Air Filter category for compatible filtration systems and related accessories.
