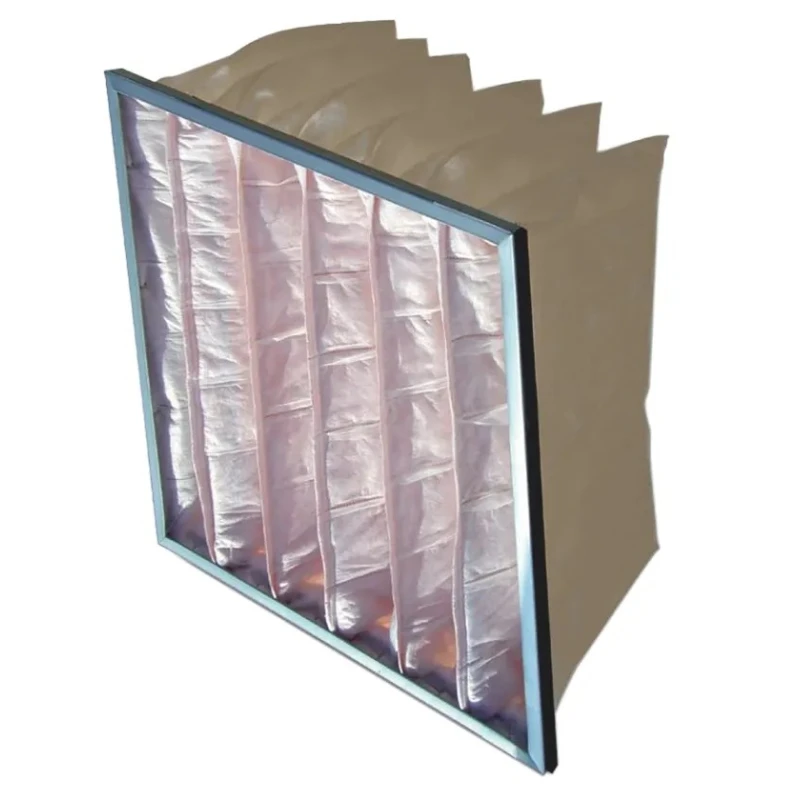

RS PRO Ultraseal Series Polypropylene Bag HVAC Air Filter, F5 Grade, 11 MERV Rating, 287 mm x 592 mm x 350 mm 827-9649

RS PRO 827-9649 Ultraseal Series Polypropylene Bag HVAC Air Filter is a high-efficiency filter designed for HVAC air filtration systems. This F5 grade filter features a 11 MERV rating and is constructed with 100% polypropylene synthetic media mounted in a galvanised steel header frame, giving it robust durability and excellent filtration performance.

The ultraseal polypropylene filter media is hydrophobic, which enhances its performance in damp environments, making it suitable for varied industrial and commercial applications such as administrative departments, hospitals, offices, theatres, computer rooms, and spray booths.

This HVAC air filter is designed with three ultrasonically welded polypropylene pockets ensuring leak-free seams and durability. The filter is equipped with rolled safety edges in the frame to prevent media damage and ensure safe installation. An additional pre-filter layer extends the filter life, providing effective triple-layer filtration to maintain indoor air quality.

With a maximum air flow rate of 58.37 m³/h, initial pressure drop of 63 Pa, and final pressure drop of 250 Pa, this filter balances high filtration efficiency with maintaining system airflow. The nominal dimensions of 304.8 mm width, 609.6 mm height, and 381 mm depth allow easy integration into standard HVAC systems.

This product complies with multiple international standards including ISO, RoHS, and BS EN, guaranteeing reliability and compliance for professional HVAC system applications. It carries the Eurovent energy rating of G>1300kWh, demonstrating its energy efficiency in operation.

Features three polypropylene media pockets for effective air filtration. Constructed with a galvanised steel frame ensuring durability and strength. Designed for optimal air flow with a maximum capacity of 58.37 m³/h. Grey colored filter with hydrophobic media to perform well in damp environments.

Initial and final pressure drops are 63 Pa and 250 Pa respectively, ensuring efficient airflow resistance. Complies with ISO, RoHS, and BS EN standards for quality and safety. Suitable for use in administrative buildings, hospitals, offices, theatres, computer rooms, and spray booths.

Eurovent energy rating of G>1300kWh, highlighting energy efficiency. Nominal size dimensions: 304.8 mm width, 609.6 mm height, and 381 mm depth for standard fitting. Bag filters feature ultrasonically welded pockets for leak-free seams and extended filter life with a built-in pre-filter layer.

This polypropylene bag filter from RS PRO is ideal for industrial, commercial, and institutional HVAC air filtration to improve air quality and system longevity. Explore our range of HVAC Air Filters for precise specifications on EnvMart.
