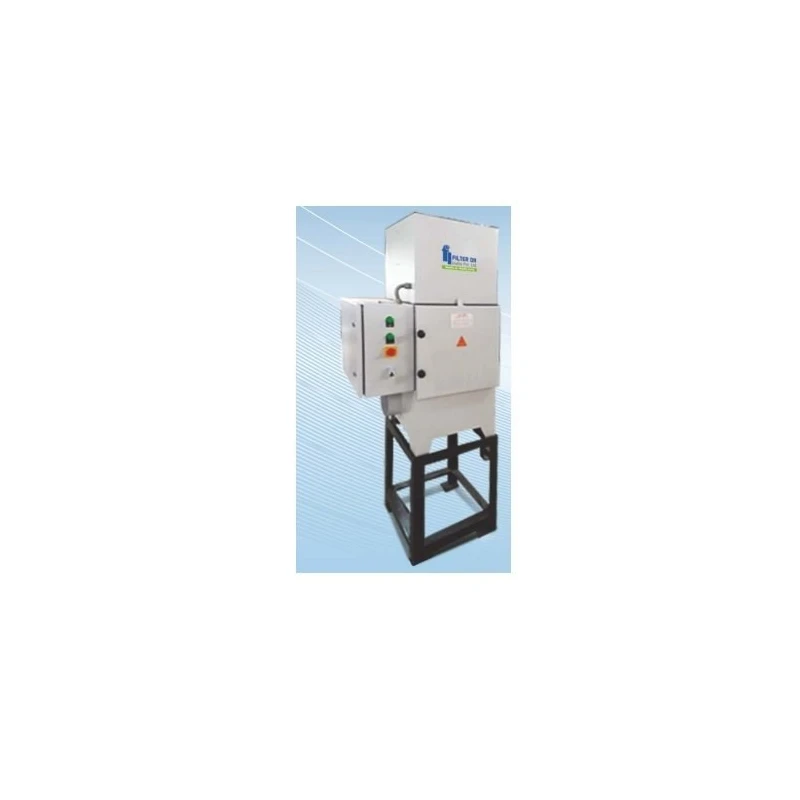

Filter On Oil Mist Fume Extraction M-02/01K-V
Specifications
| Power Consumption | 360 W (max) |
|---|---|
| Sound Level | 60-65 dB (@1M from unit) |
| Air Flow | 1000 CMH (600 CFM) |
| Model | M-02/1K-V |
| Weight | 70 KG |
| Overall size | 420 (L) X 675 (W) X 1360 (H) |
| Input Supply | 230V 50Hz AC 1 PH |
| Inlet Pipe | Dia 150 1 No |
| After Filter | GI Wire Mesh media in MS powder coated channel frame |
| Fan / Blower | SISW centrifugal backward curved impeller with external rotor type motor. (2600 RPM) |
| Main Cabinet | 16G CRCA powder coated sheets |
| Pre-filter | GI Wire Mesh media in MS powder coated channel frame |
| High Voltage Power Supply for ESP | I/P 230 V AC| O/P 6KV DC (collector) & 12KV DC (ionizer) |
| Indications | ESP ON| Blower ON |
Key Features
- Short Circuit & Arcing Protection
Product Description
Oil Mist Fume Extraction: Oil Mist and Fumes Extraction for Grinding Application, Gear Cutting Machines, Hobbing Machines, CNC Lathes, Tool & Cutting Grinders, 5 Axis Grinding Machines, HMC & VMC, Oil Spraying Application, Induction Heating Machines, Nut Formers Etc.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum power consumption of this model is 360 W.
It has an airflow capacity of 1000 CMH (600 CFM).
The sound level of this unit is between 60-65 dB when measured at 1 meter from the unit.
This model features an inlet pipe with a diameter of 150 mm and includes one pipe.
The weight of this extractor is 70 KG.
The overall size of the M-02/01K-V is 420 mm (L) x 675 mm (W) x 1360 mm (H).
It is equipped with a SISW centrifugal backward curved impeller fan with an external rotor type motor operating at 2600 RPM.
The input supply requirement for this unit is 230V 50Hz AC single phase.
Both the pre-filter and after filter use GI wire mesh media in a mild steel powder coated channel frame.
The high voltage power supply provides an output of 6KV DC for the collector and 12KV DC for the ionizer.
It provides indications for ESP ON and Blower ON.
