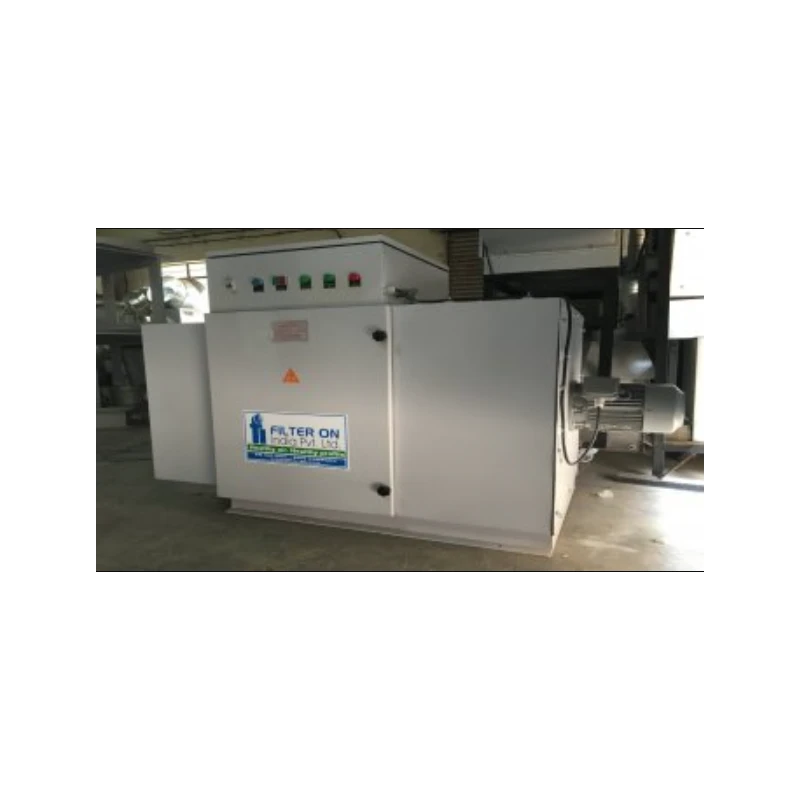

Filter On Oil Mist Fume Extraction M-02/01K-DP-V
Specifications
| Power Consumption | 360 W (max) |
|---|---|
| Sound Level | 60-65 dB (@1M from unit) |
| Air Flow | 1000 CMH (600 CFM) |
| Model | M-02/1K-DP-V |
| Weight | 70 KG |
| Safety | All access doors fitted with Safety Limit switches |
| Overall size | 420 (L) X 675 (W) X 1620 (H) |
| Input Supply | 230V 50Hz AC 1 PH |
| Inlet Pipe | Dia 150 1 No |
| After Filter | GI Wire Mesh media in MS powder coated channel frame |
| Fan / Blower | SISW centrifugal backward curved impeller with external rotor type motor. (2600 RPM) |
| Switches | ESP ON (MCB)| BLOWER ON (Rotary Switch) |
| Main Cabinet | 16G CRCA powder coated sheets |
| Pre-filter | GI Wire Mesh media in MS powder coated channel frame |
| High Voltage Power Supply for ESP | I/P 230 V AC| O/P 6KV DC (collector) & 12KV DC (ionizer) |
| Indications | ESP ON| Blower ON |
Key Features
- Bulk Quantities Available
Product Description
Oil Mist Fume Extraction: Suitable for Oil Mist and Fumes Extraction for Grinding Application, Gear Cutting Machines, Hobbing Machines, CNC Lathes, Tool & Cutting Grinders, 5 Axis Grinding Machines, HMC & VMC, Oil Spraying Application, Induction Heating Machines, Nut Formers Etc.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power consumption of this model is 360 W (max).
It has an air flow rate of 1000 CMH (600 CFM).
The overall size of the unit is 420 mm (L) x 675 mm (W) x 1620 mm (H).
This model weighs 70 KG.
The sound level is between 60-65 dB when measured 1 meter from the unit.
It features a SISW centrifugal backward curved impeller with an external rotor type motor operating at 2600 RPM.
The input supply requirement is 230V 50Hz AC single phase.
It uses a GI wire mesh media in a MS powder coated channel frame as the pre-filter.
This model is suitable for oil mist and fume extraction in grinding applications, CNC lathes, and other industrial processes.
The inlet pipe diameter is 150 mm with one inlet.
The main cabinet is made of 16G CRCA powder coated sheets.
