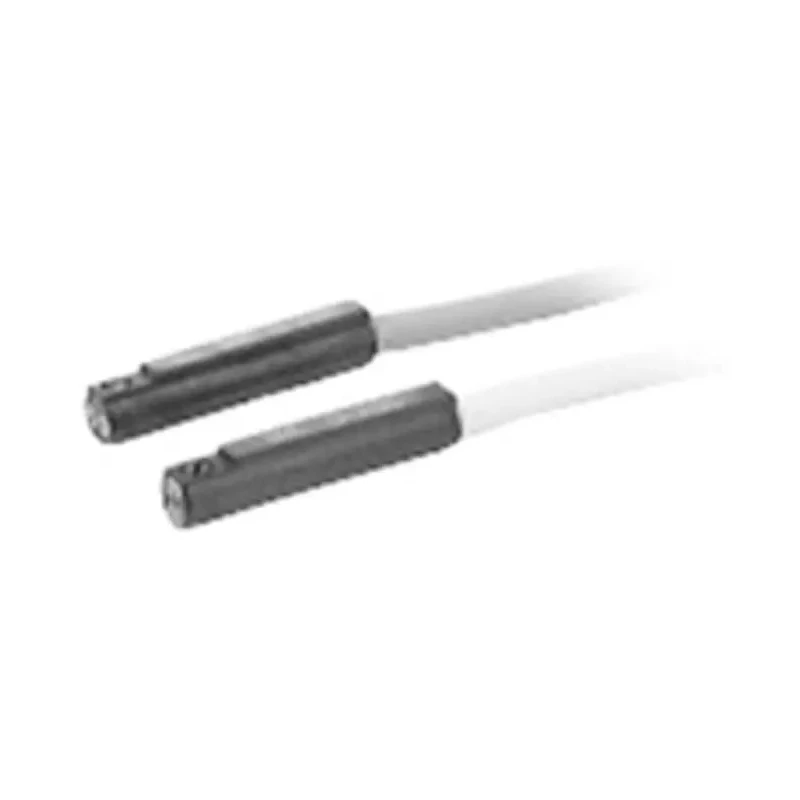

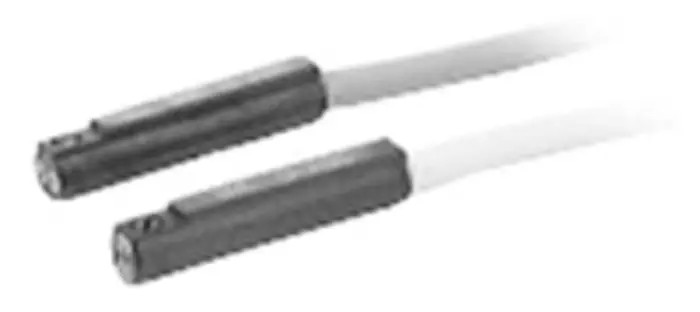

SMC 2-Wire Open End Cable Direct NC Reed Pneumatic Cylinder & Actuator Switch 100 V ac, 100 V dc D-A90Z
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 100, 100V ac |
| Brand | SMC |
| Height | 18mm |
| Model | D-A90Z |
| Depth | 46mm |
| IP Rating | IP67 |
| Enclosure | IEC529 criteria IP67, JISC0920 |
| Width | 15.5mm |
| Operating Time | 1.2ms or less |
| Operation Type | NC |
| Mount Type | Direct |
| Series | D-A9 |
| Load Current | 50mA or less |
| Maximum Operating Temperature | 60°C |
| Sub Type | Reed |
| Minimum Operating Temperature | -10°C |
| Switching Current | 40mA |
| Standards/Approvals | IEC 529 |
| Electrical Connection Type | 2-Wire Open End Cable |
| Applicable Load | IC Circuit/Relay/PLC |
| Ambient temperature rating | -10 to 60 °C |
Key Features
- The switch operates as a normally closed (NC) reed switch for precise actuation.
- Equipped with an open end cable of two wires for simple electrical connection.
- Rated for switching currents up to 40 mA with load current capacity up to 50 mA or less.
- Rated for ambient temperatures from -10°C to 60°C with IP67 protection against dust and water ingress.
- Compact design with dimensions of 18 mm height, 15.5 mm width, and 46 mm depth for efficient mounting.
- Direct mount type suitable for sizes 05, 10 to 200 MSQ Series Rotary Actuators and others.
- Features an IEC 529 enclosure rating and durable oval-shaped vinyl sheath cable for flexibility.
- Operating time is 1.2 ms or less, ensuring responsive switching in automation applications.
Product Description
SMC D-A90Z 2-Wire Open End Cable Direct NC Reed Pneumatic Cylinder & Actuator Switch is designed for pneumatic actuators, providing reliable magnetic sensing with reed switch technology. It operates on 100 V ac and 100 V dc voltage, making it suitable for various pneumatic control applications.
This switch series, D-A9, features a normally closed (NC) operation which is ideal for fail-safe or control circuit use. The 2-wire open end cable connection allows easy wiring and integration with pneumatic cylinder systems.
The product boasts an IP67 rating according to IEC 529 and JISC0920 standards, ensuring protection against dust and water ingress, crucial in industrial and manufacturing environments. The operational ambient temperature range from -10°C to 60°C broadens its usability in harsh conditions.
Dimensionally compact, with a height of 18mm, width of 15.5mm, and depth of 46mm, it fits efficiently in constrained installation spaces. The durable oval vinyl sheath cable enhances flexibility and longevity in wiring setups.
This switch is compatible with several rotary actuator series such as Size 05, Size 10 to 200 MSQ, CDRQ2X, MSZ, MHT2, CRJ, and others, making it versatile for customers needing actuator sensor switches.
The switch operates as a normally closed magnetic reed type for dependable actuation. Includes durable vinyl sheath cable with oval shape for flexibility during installation. IP67 protection rating ensures resistant performance in industrial environments.
Suitable for automation sectors including automotive, food and beverage, chemical, and electronics manufacturing. Quick operating time of 1.2 ms or less enhances response time in control circuits. Meets IEC 529 & JISC0920 standards for enclosure and durability.
Designed and manufactured in Japan for high reliability and quality assurance.
This pneumatic switch is ideal for applications in industrial pneumatic control systems, assembly lines, and robotics. It provides consistent switch signals for accurate cylinder position feedback and control system integration.
Explore similar pneumatic cylinder switches and sensors within EnvMart’s comprehensive industrial automation catalog for varied actuator control solutions.
Explore more products in our Pneumatic Cylinder Sensors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at 100 V ac and 100 V dc, making it suitable for various pneumatic control applications.
The D-A90Z switch has a load current capacity of 50 mA or less, ensuring it can handle appropriate electrical loads in control circuits.
It has a compact design with dimensions of 18 mm in height, 15.5 mm in width, and 46 mm in depth, suitable for efficient mounting in constrained spaces.
The D-A90Z switch has an IP67 rating according to IEC 529 and JISC0920 standards, providing protection against dust and water ingress.
This switch can operate in ambient temperatures ranging from -10°C to 60°C, making it versatile for various environmental conditions.
It features a 2-wire open end cable for simple electrical connection, facilitating easy wiring and integration with pneumatic systems.
The switch operates with a quick response time of 1.2 ms or less, ensuring efficient actuation in automation applications.
This model is compatible with several rotary actuator series, including Size 05, Size 10 to 200 MSQ, CDRQ2X, MSZ, MHT2, and CRJ.
It operates as a normally closed (NC) reed switch, which is ideal for fail-safe or control circuit applications.
The switch meets IEC 529 standards for enclosure protection, ensuring it is suitable for industrial environments.
This product is designed and manufactured in Japan, ensuring high reliability and quality assurance.
It is suitable for automation sectors including automotive, food and beverage, chemical, and electronics manufacturing, providing consistent switch signals for accurate cylinder position feedback.
