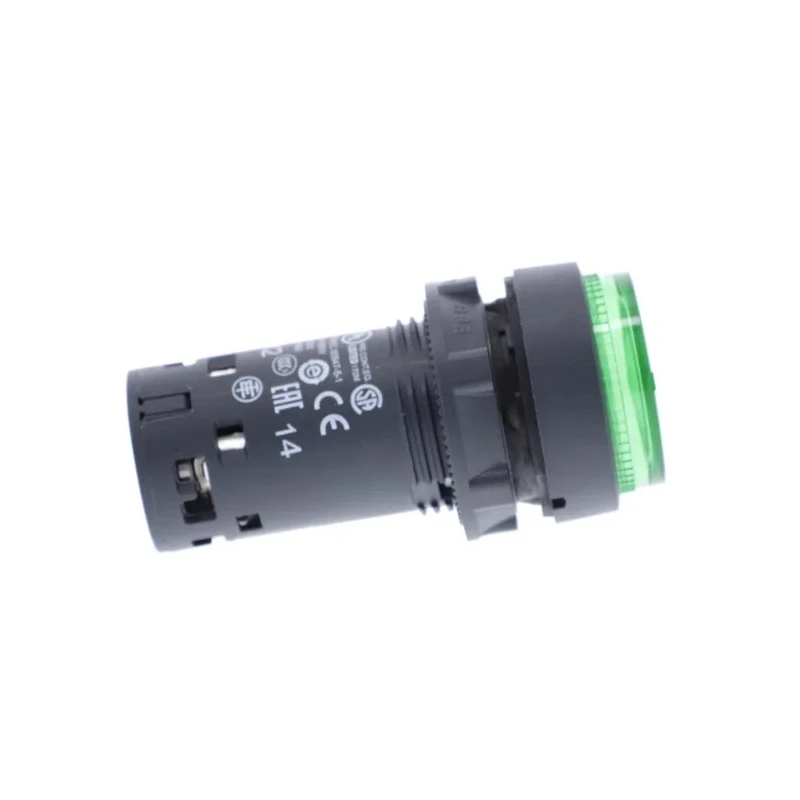

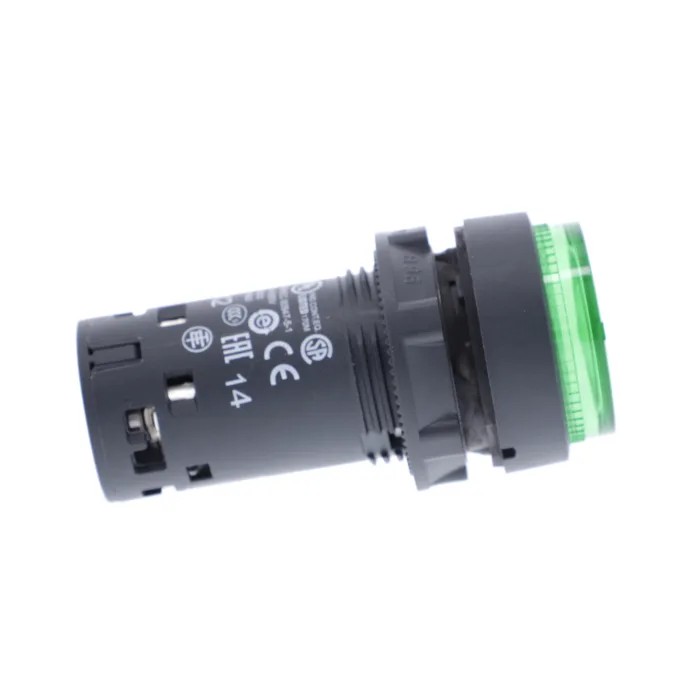

Schneider Electric Harmony XB7 Series Illuminated Push Button Switch, Spring Return, Panel Mount, 22 mm Cutout XB7NW33M1

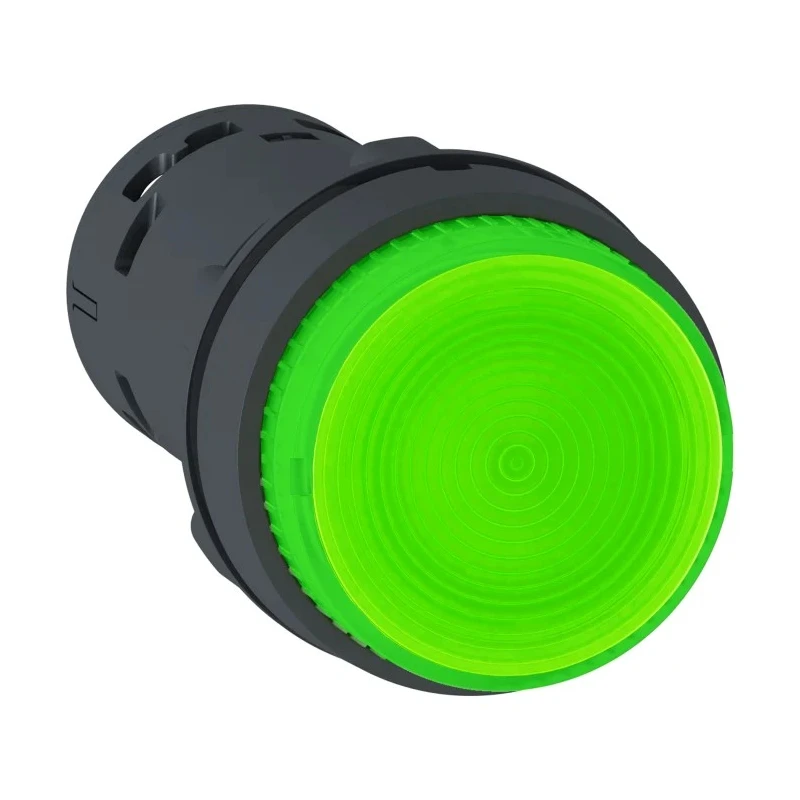

Schneider Electric XB7NW33M1 is an illuminated push button switch from the Harmony XB7 series, featuring a green round actuator with spring return mechanism. This panel mount switch is designed for easy installation in 22 mm diameter cutouts and includes integrated green LED illumination to ensure clear visual identification in control systems.

With a SPST (1 NO) contact configuration and screw clamp terminal connections, this device operates at 230V AC with a switch contact current of 27mA. The switch's robust design boasts IP65 protection, making it resistant to dust, water, impacts, and vibrations, which is ideal for operation in harsh industrial environments.

The compact dimensions (29mm x 29mm x 57.5mm) and lightweight double insulated plastic bezel construction enhance its ergonomic design. Its wide operating temperature range of -25°C to 70°C allows for flexible use in varied environmental conditions.

This Push Button Switch complies with multiple international standards such as CSA C22.2 No. 14, EN/IEC 60947-1, EN/IEC 60947-5-1, JIS C8201-1, and UL 508, ensuring high safety and reliability for industrial and building control applications.

Harmony XB7 series push buttons are suitable for complex machinery control panels, offering durability, ease of installation, and clear machine status indication via their integral LEDs. This product is ideal for electrical, automation, manufacturing, and industrial control systems demanding reliable operator interface components.

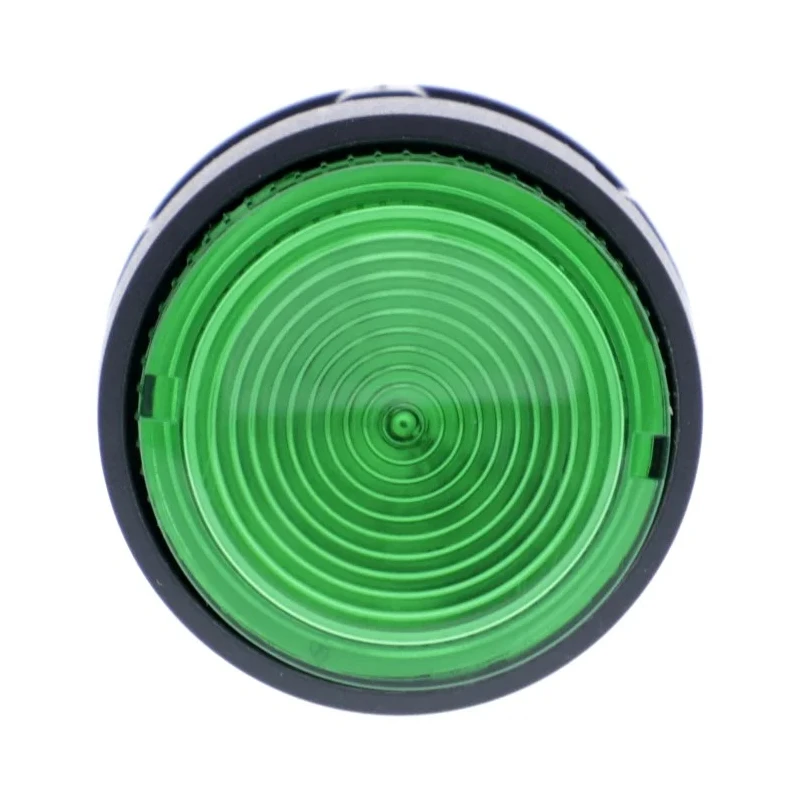

Green round actuator color ensuring high visibility. Spring return operation with a single pole, single throw (SPST) contact configuration. Integral green LED illumination for clear status indication. Panel mount type compatible with standard 22 mm diameter cutouts.

Designed for use with 230V AC contact voltage and a switch contact current of 27mA. Robust construction with IP65 rating providing dust, water, vibration, and impact resistance. Wide operating temperature range from -25°C to 70°C for versatile industrial use.

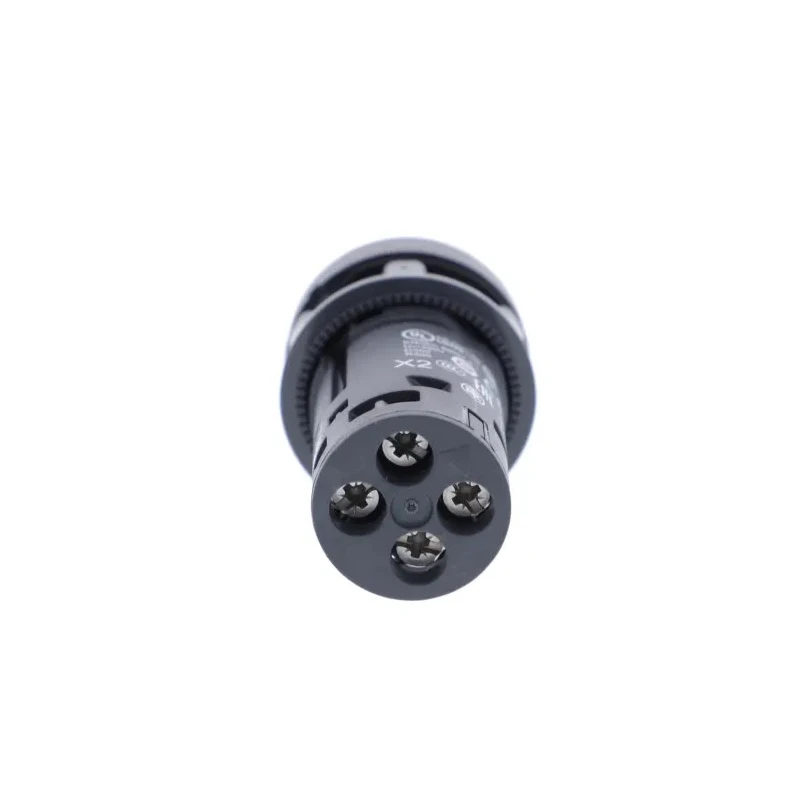

Easy installation using screw clamp terminals. Complies with international safety standards including CSA C22.2 No. 14, EN/IEC 60947-1, UL 508 and JIS standards. Explore more reliable electrical switches and components from Schneider Electric and the Harmony XB7 series in EnvMart.
