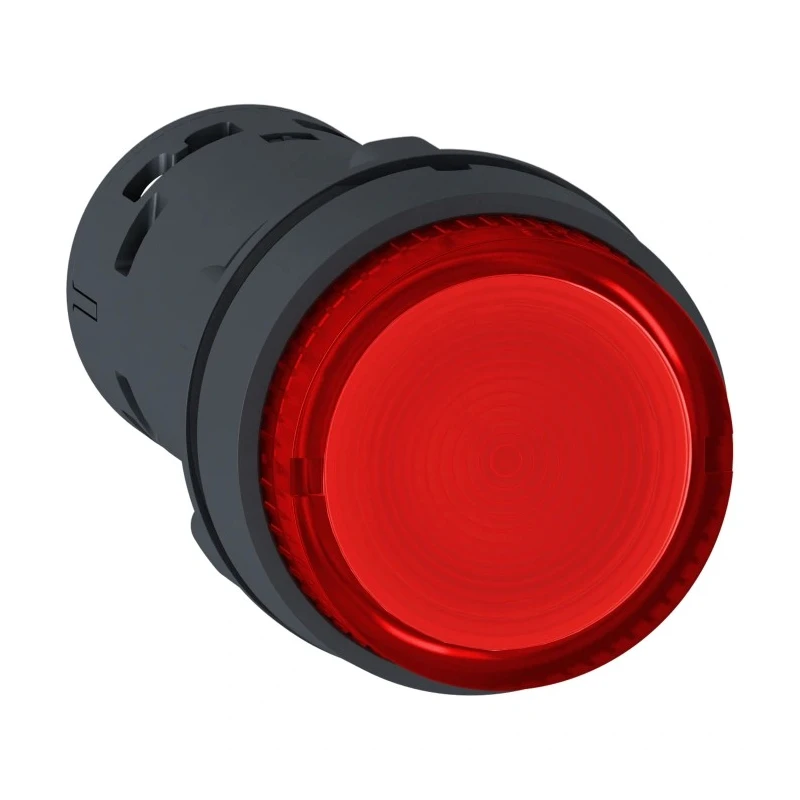

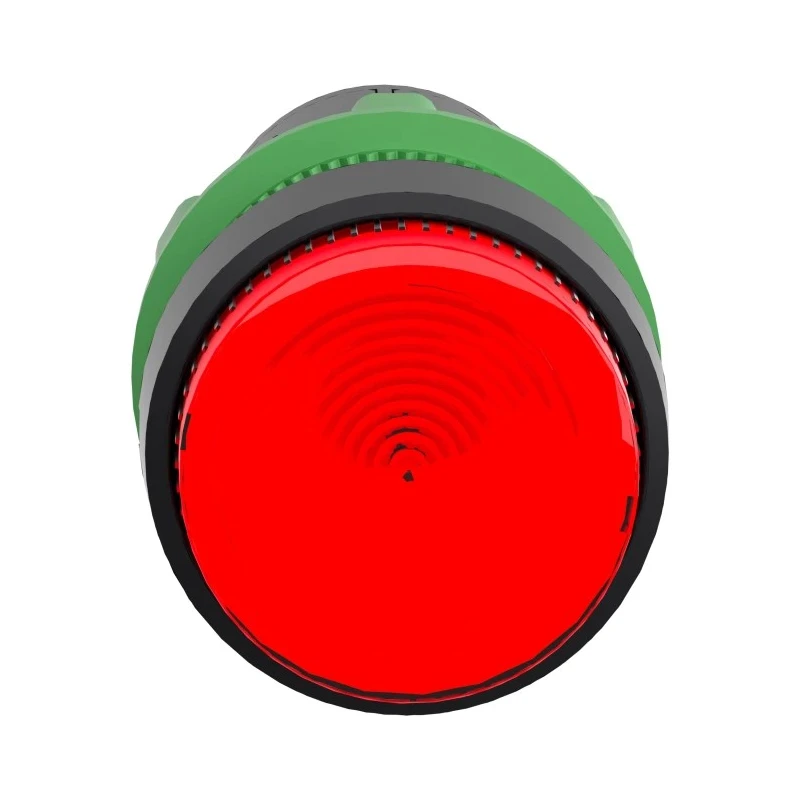

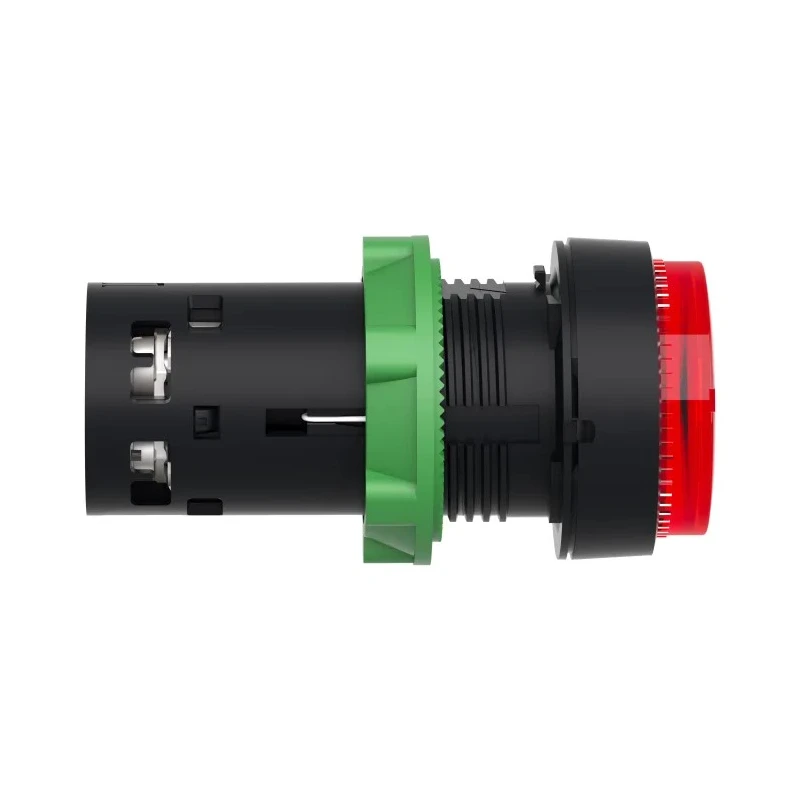

Schneider Electric Harmony XB7 Series Illuminated Push Button Switch, Red Actuator, Spring Return, Panel Mount, 22 XB7NW34B2

Schneider Electric XB7NW34B2 Illuminated Push Button Switch from the Harmony XB7 series is a high-performance control component engineered for demanding industrial environments. This push button features a red round actuator that is illuminated by an integral LED, enhancing visibility for operators even in bright ambient lighting. The spring return operation ensures the button returns to its default position immediately after use, supporting impulse control applications.

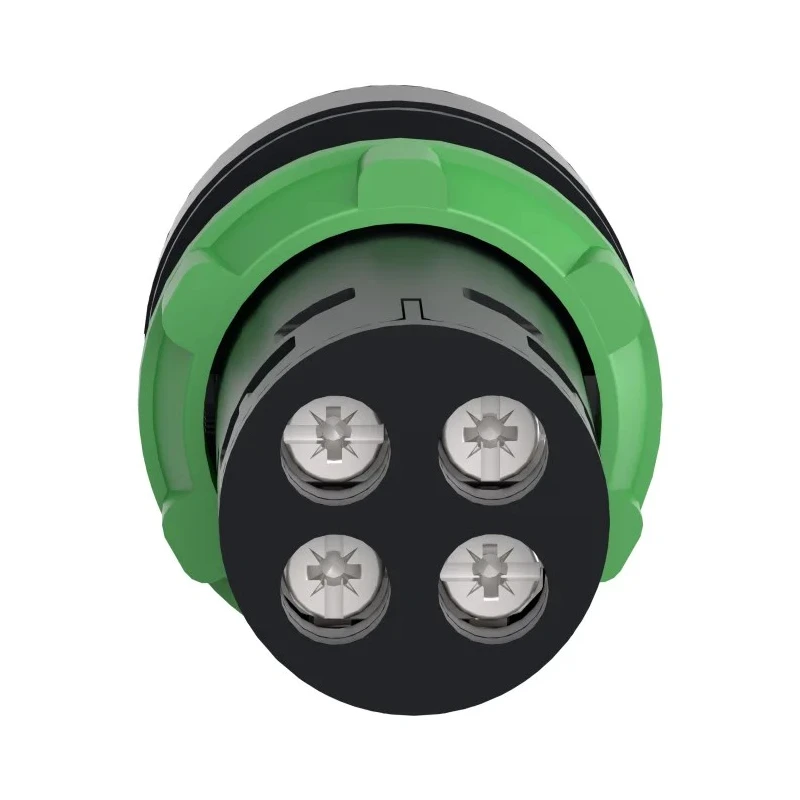

Designed for convenient panel mounting, it fits a 22 mm diameter cutout and connects via classic screw clamp terminals, ensuring reliable electrical connections. The switch configuration includes a single-pole, single-throw (SPST) contact with one normally closed contact, suitable for simple on/off control circuits.

This durable switch is IP65 rated, providing protection against dust ingress, water jets, and mechanical vibrations, making it suitable for harsh commercial and industrial settings such as manufacturing plants, automation systems, HVAC controls, and electrical panels.

The operating temperature range from -25°C to 70°C allows this device to perform reliably across diverse climates and conditions. Its compact physical footprint of 29 mm by 29 mm by 51.5 mm ensures compatibility with a wide range of control panel designs.

This Push Button Switch features a red illuminated round actuator for clear visibility. Designed for panel mounting with a standard 22 mm diameter cutout for easy installation. SPST switch configuration ensures reliable control with 1 normally closed contact.

The switch operates with a spring return mechanism, providing immediate reset after actuation. Integral red LED illumination operates at 24V AC/DC for effective machine status indication. Equipped with screw clamp terminals for secure and straightforward wiring connections.

Constructed with impact, dust, water, and vibration resistance rated at IP65 for harsh environments. Wide operating temperature range from -25°C to 70°C enabling versatile industrial applications. Compact dimensions of 29 mm height, 29 mm width, and 51.5 mm length fit various control panel designs.

This switch is ideal for use in industrial automation, machine control stations, electrical panels, and other control systems requiring reliable illuminated signaling and robust performance.
