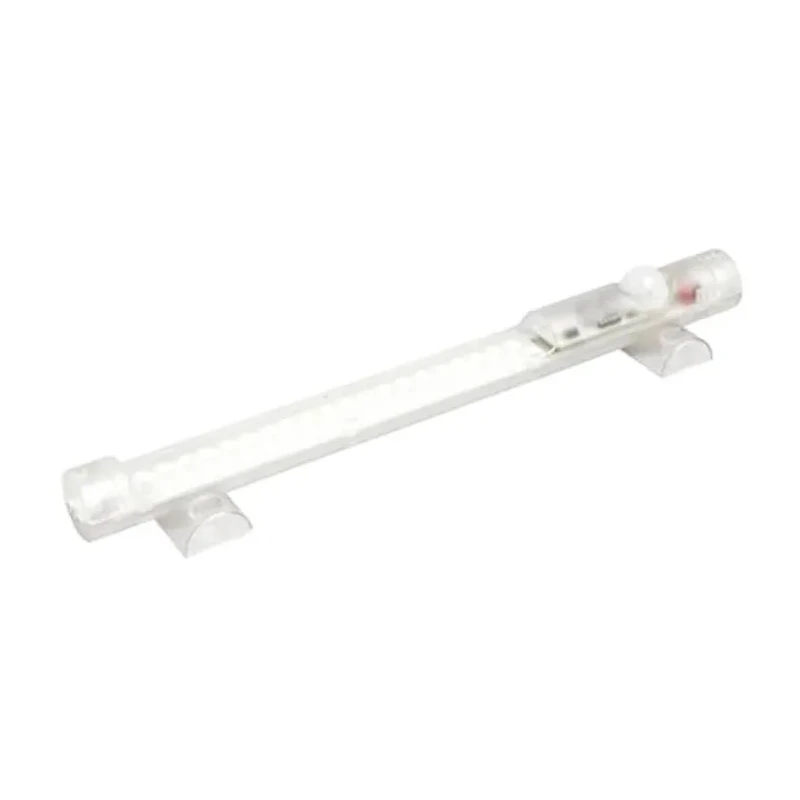

STEGO LED PIR Enclosure Lamp 48V DC 5W 6500K 351mm Length 02541.1-00

Free Delivery in India | Lowest Global Shipping Charges

STEGO LED PIR Enclosure Lamp 48V DC 5W 6500K 351mm Length 02541.1-00

Name: STEGO LED PIR Enclosure Lamp 48V DC 5W 6500K 351mm Length 02541.1-00
Brand: STEGO
SKU: 132796



Category Cabinet Lighting Brand STEGO Condition New

Specifications

Country of Origin	Germany
Voltage	48V dc
Diameter	32mm
Brand	STEGO
Power	5W
Colour	White
Length	351mm
Depth	39mm
IP Rating	IP20
Lamp Type	LED
Width	39mm
Housing Material	Transparent Plastic
Maximum Operating Temperature	60°C
Lifespan	60000h
Luminous Flux	290lm
Sub Type	PIR Enclosure Lamp
Minimum Operating Temperature	-30°C
Standards/Approvals	GOST-R, UL File No. E234324, VDE
Colour Temperature	6500k
STEGO LED Enclosure Light, 24 → 48 V dc, 351 mm Length, 5 WBrand	Stego Elektrotechnik

Key Features

This LED lamp uses motion-activated PIR sensor with approximately 5 minutes switch-on duration.
Magnet fixing allows easy mounting inside steel cabinets or enclosures.
The lamp provides a luminous flux of 290 lumens with energy-efficient LED technology.
Designed for panel and enclosure lighting with a compact size of 351mm length and 39mm diameter.
Operates reliably between -30°C and 60°C in an IP20 rated enclosure.
Has a long lifespan of approximately 60,000 hours for low maintenance.
The lamp supports connection of up to 10 units in series for expanded illumination.
Suitable for industrial and electrical enclosure lighting applications.

Product Description

STEGO 02541.1-00 is a high-performance LED PIR enclosure lamp designed for Cabinet Lighting applications. Operating at 48V DC with a power rating of 5 watts, this lamp delivers a bright 6500K daylight color temperature and a luminous flux of 290 lumens. The lamp length is 351mm, making it suitable for installation in space-constrained panels and enclosures.

The lamp is equipped with a passive infrared (PIR) sensor that activates the light based on movement, providing an automatic switch-on duration of approximately 5 minutes. Installation is facilitated by a magnet fixing feature, allowing easy placement inside steel cabinets without additional mounting hardware.

Manufactured with a transparent plastic housing, the enclosure lamp is rated IP20, suitable for indoor electrical enclosure illumination. It operates safely within a temperature range of -30°C to 60°C, ensuring durability in varied industrial environments. The LED technology affords a lifespan of up to 60,000 hours, reducing the need for frequent replacements and maintenance.

Up to 10 LED enclosure lamps can be connected in series, enhancing lighting coverage for large panels or cabinets. Connectors and cabling are sold separately as accessories. This model complies with GOST-R, UL File No. E234324, and VDE standards, assuring quality and safety. It is manufactured in Germany by STEGO Elektrotechnik.

This LED lamp uses motion-activated PIR sensor with approximately 5 minutes switch-on duration. Magnet fixing allows easy mounting inside steel cabinets or enclosures. The lamp provides a luminous flux of 290 lumens with energy-efficient LED technology.

Designed for panel and enclosure lighting with a compact size of 351mm length and 39mm diameter. Operates reliably between -30°C and 60°C in an IP20 rated enclosure. Has a long lifespan of approximately 60,000 hours for low maintenance.

The lamp supports connection of up to 10 units in series for expanded illumination. Suitable for industrial and electrical enclosure lighting applications. For reliable cabinet and enclosure lighting solutions, explore the extensive STEGO range at EnvMart.
