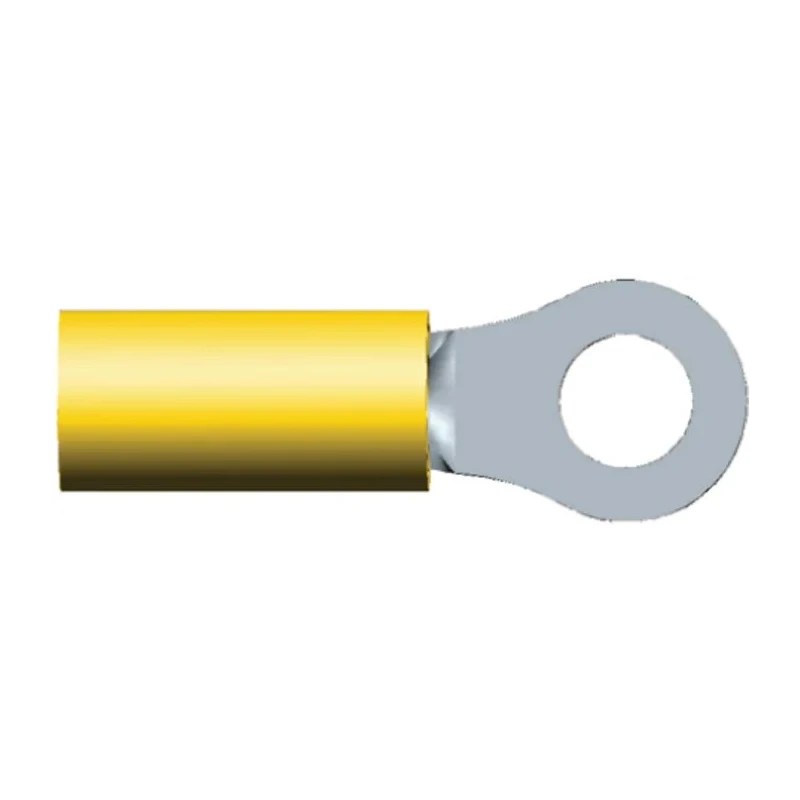

TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size 12 AWG 10 AWG Wire Size Nylon Yellow 35109
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Yellow |
| THICKNESS | 0.99mm |
| Model | 35109 |
| Insulation | Insulated |
| Overall Length | 1.083in |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 2.6mm² |
| Maximum Wire Size mm² | 6.6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Outer Ring Diameter | 0.375in |
| Inner Ring Diameter | 0.197in |
| Stud Size | M5 |
Key Features
- The terminal features a high conductivity copper body for efficient electrical performance.
- A copper sleeve enhances wire insulation support and prevents fraying.
- Serrations in the wire barrel provide maximum contact and tensile strength after crimping.
- Color-coded nylon insulation facilitates easy wire size identification and tooling alignment.
- The funnelled wire entry design allows fast and secure wire insertion during production.
- This terminal supports maximum operating temperatures up to 105°C for reliable use in diverse environments.
- Its construction ensures a uniform and reliable crimp for enhanced electrical connectivity.
- Suitable for applications in instruments, control systems, power supplies, panel boxes, transportation and aerospace industries.
Product Description
TE Connectivity 35109 PIDG Insulated Ring Terminal is engineered to provide reliable electrical connections in demanding circuit environments. Featuring a precision-formed high conductivity copper body and barrel, it ensures excellent conductivity and robustness.
The wire barrel includes internal serrations for maximum contact and tensile strength after crimping, while a copper sleeve supports insulation and prevents wire strand fraying. A color-coded yellow nylon insulation sleeve enables easy identification of wire sizes and improves tooling accuracy.
This terminal supports wire sizes from 12 AWG to 10 AWG (2.6 mm² to 6.6 mm²) and is designed to work with an M5 stud size. Its funnelled wire entry design allows fast, reliable wire insertion, increasing efficiency in high-speed production settings.
Rated for a maximum operating temperature of 105°C, this product is ideal for industrial, manufacturing, instrumentation, aerospace, transportation, control panels, and appliance wiring needs.
High conductivity copper body for superior electrical performance. Copper sleeve enhances insulation support and prevents fraying. Serrated wire barrel ensures strong mechanical and electrical connection. Color-coded nylon insulation for quick wire size identification.
Funnelled wire entry speeds up installation and improves reliability. Suitable for wire sizes 12 AWG to 10 AWG (2.6 mm² to 6.6 mm²). Supports M5 stud size connections with robust design. Ideal for applications in electrical instrumentation, power supplies, panel boxes, and more.
Durable nylon insulation rated for 105°C operating temperature. Ensures uniform and reliable crimp connections in various industrial applications.
Choose TE Connectivity PIDG terminals for consistent, high-quality ring terminal solutions that meet rigorous industrial standards. Explore more Ring Terminals and electrical accessories in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal supports a maximum operating temperature of 105°C, making it suitable for use in diverse environments.
It is designed to accommodate wire sizes from 12 AWG to 10 AWG, which corresponds to 2.6 mm² to 6.6 mm².
This model supports an M5 stud size for secure connections.
The terminal features a high conductivity copper body and a nylon insulation sleeve, with a tin plating on the contact material.
The funnelled wire entry design allows for fast and secure wire insertion, increasing efficiency during production.
The overall length of this terminal is 1.083 inches.
The outer ring diameter is 0.375 inches, and the inner ring diameter is 0.197 inches.
The serrations in the wire barrel provide maximum contact and tensile strength after crimping, ensuring a reliable connection.
Yes, the design, including the funnelled wire entry, is optimized for fast and reliable wire insertion, making it suitable for high-speed production.
This terminal is suitable for applications in electrical instrumentation, control systems, power supplies, panel boxes, and aerospace industries.
The insulation on this terminal is color-coded yellow, facilitating easy identification of wire sizes.
This terminal is manufactured in the United States.
