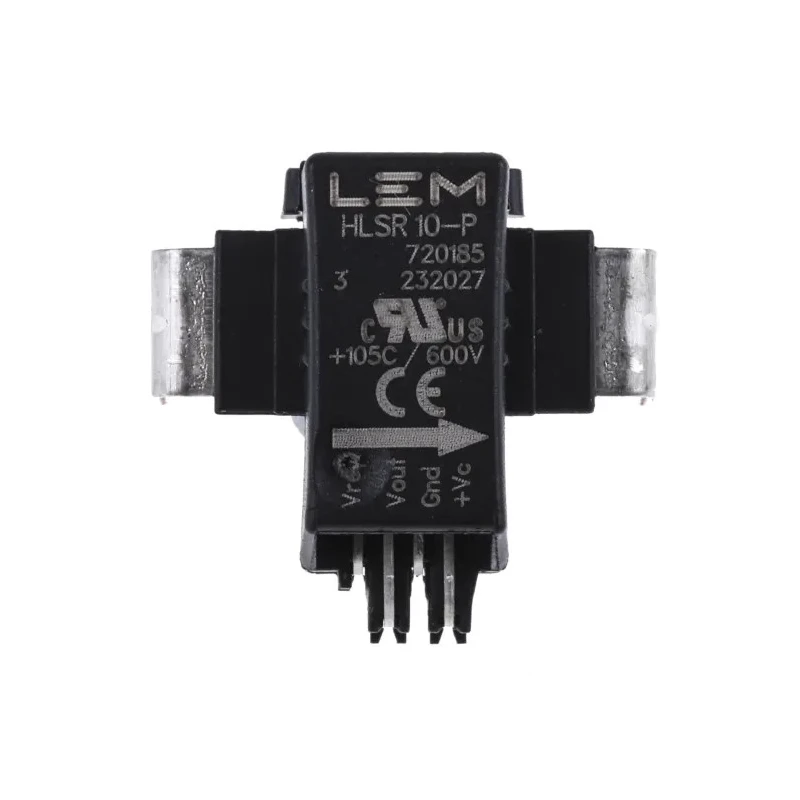

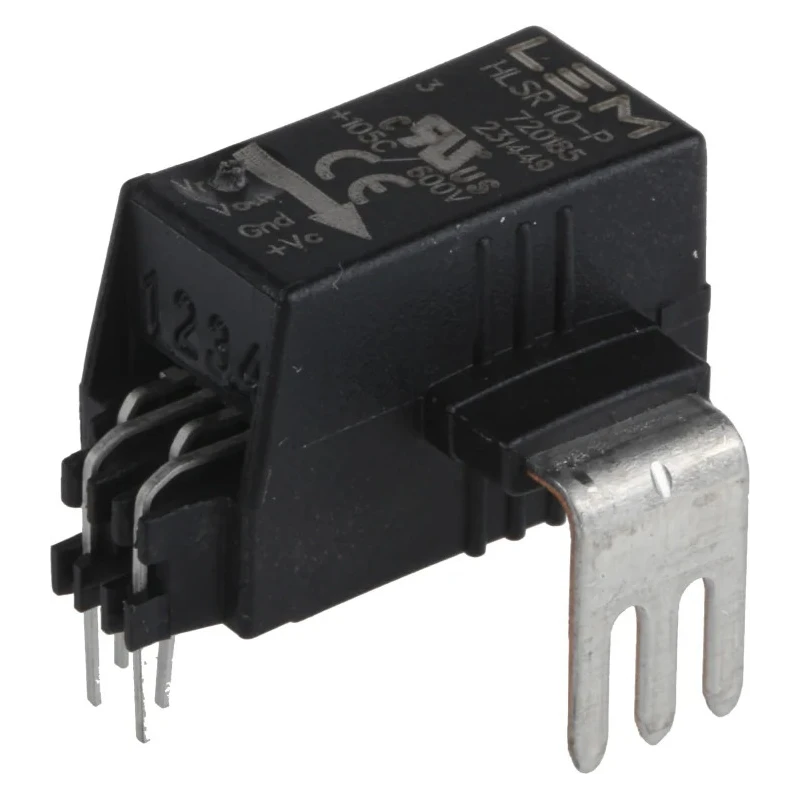

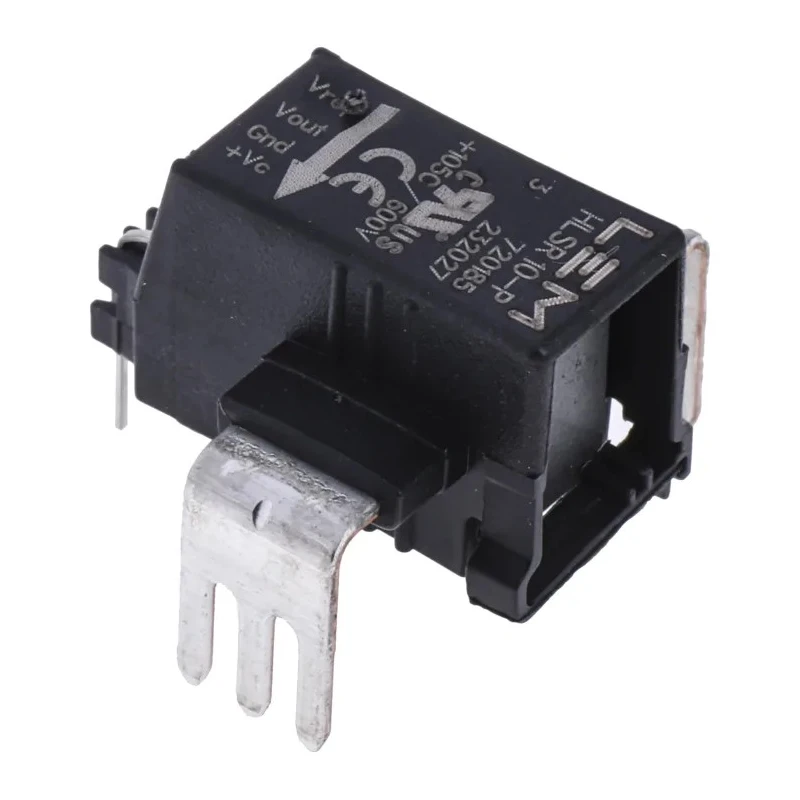

LEM HLSR Series Current Transformer 25 A 4.5V 5.5V Compact PCB Mount HLSR 10-P

LEM HLSR 10-P Current Transformer belongs to the HLSR series, designed for accurate electronic measurement of current with galvanic isolation between the primary and secondary circuits. This device supports a primary current rating of 25 A and a secondary current output of 10 A, operating at a low supply voltage between 4.5 and 5.5 volts to minimize power consumption.

The compact transformer is engineered for through-hole PCB mounting, featuring physical dimensions of 15.5 mm in length, 21.6 mm in width, and 20.2 mm in depth, with a lightweight construction of just 5 grams. It performs reliably in demanding industrial environments with an operating temperature range from -40°C to 105°C.

Factory calibration assures high accuracy and low offset drift, crucial for industrial automation, process control, and electronics applications. Its compliance with multiple international standards (UL 508:2010, IEC 61326-1:2012, IEC 61010-1:2010, EN 50178:1997, CE) guarantees safe and certified performance in diverse operational conditions.

Primary current rating of 25 A. Secondary current output of 10 A. Supply voltage range: 4.5 V to 5.5 V. Compact PCB mounting footprint measuring 15.5 x 21.6 x 20.2 mm. Operating temperature range: -40°C to 105°C. Weight approximately 5 grams.

Conforms to international electrical and safety standards.

The HLSR 10-P is ideal for industrial automation, process control, and electronic measurement purposes requiring reliable and accurate current sensing solutions. It fits seamlessly into control gear assemblies and offers galvanic isolation for electrical safety.
