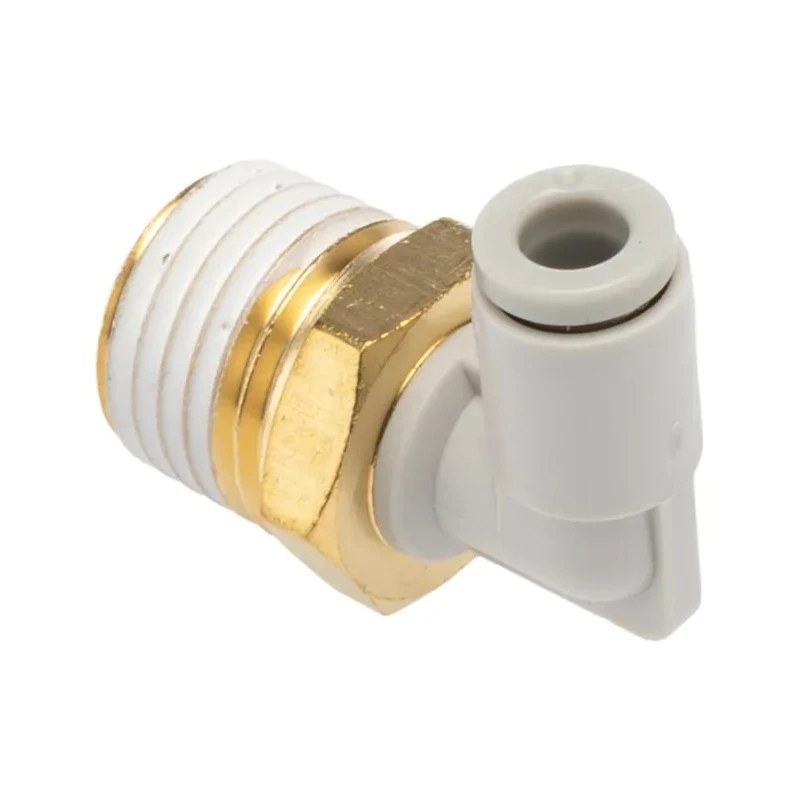

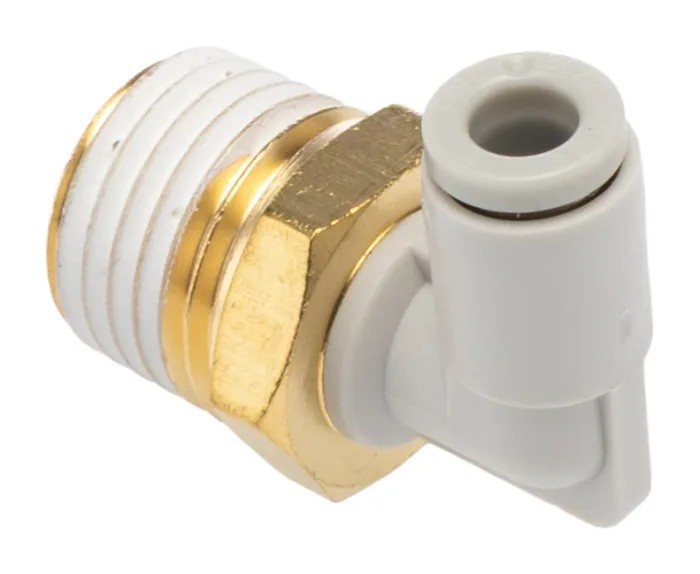

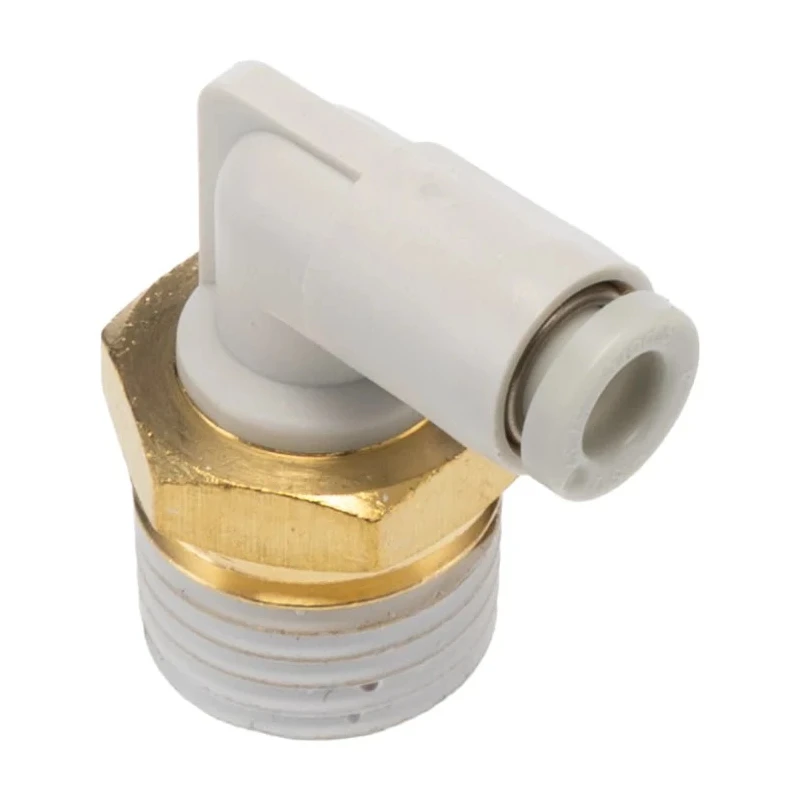

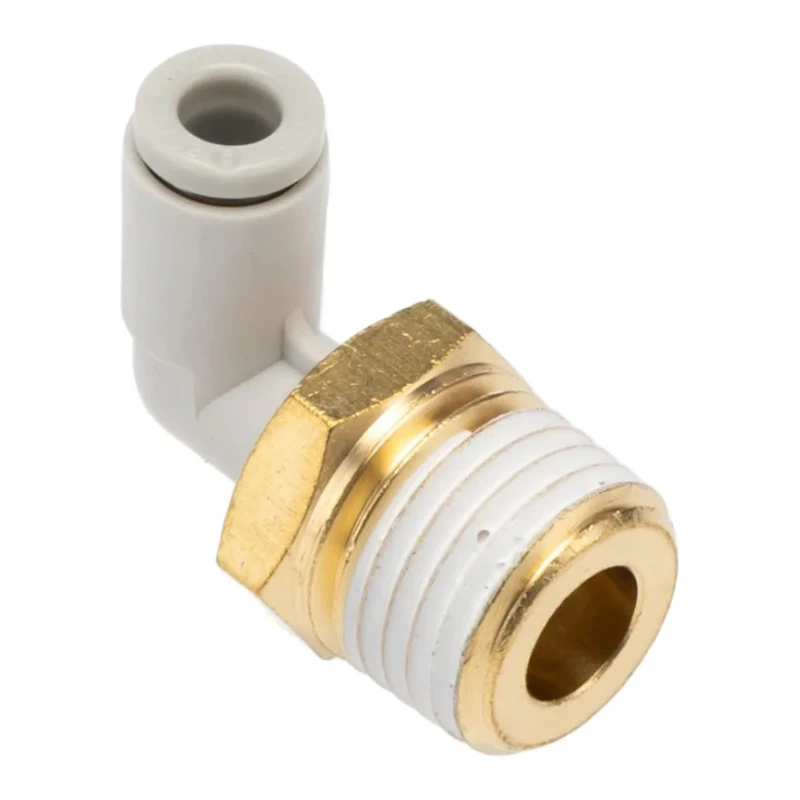

SMC ElectroLess Nickel Plated Brass Pneumatic Fitting, Male Thread R 1/4 in, 4mm Push-in, 90° Elbow KQ2L04-02AS

Free Delivery in India | Lowest Global Shipping Charges

SMC ElectroLess Nickel Plated Brass Pneumatic Fitting, Male Thread R 1/4 in, 4mm Push-in, 90° Elbow KQ2L04-02AS



Category Pneumatic Fitting Brand SMC Condition New

Specifications

Country of Origin	India
Brand	SMC
Material	Electroless Nickel Plated Brass
Model	KQ2L04-02AS
Connection Type	Threaded-to-Tube
Finish	Electroless Nickel Plated Brass
Series	KQ2
Maximum Operating Temperature	60°C
Angle	90°
Standards/Approvals	RoHS
Connection Size A	R 1/4 Male
Connection Thread Standard	R
Connection Thread Size	R 1/4 in
Connection Gender	Male
Connection Size B	Push In 4 mm
Tube Connection Type	Push-in
Tube Connection Size	4mm
SMC KQ2 Series, Threaded-to-Tube Connection StyleBrand	SMC

Key Features

Electroless nickel plating provides corrosion resistance and surface hardness.
Compact 90° elbow reduces hose strain and eases routing in tight spaces.
Push-in tube connection facilitates rapid, tool-free assembly.
Male R 1/4 inch thread ensures secure screw-in coupling.
Compatible with 4mm push-in tubing for pneumatic systems.
Rated for continuous operation up to 60°C for thermal stability.
Constructed from strong brass base material for mechanical durability.
Suitable for pneumatic control manifolds and actuator supply lines.

Product Description

SMC KQ2L04-02AS is a pneumatically optimized fitting engineered from electroless nickel-plated brass, designed to provide a reliable 90° elbow connection for compressed air lines. It integrates a male R 1/4 inch threaded interface with a 4mm push-in tube connection, enabling effective routing and space-saving installations in industrial automation and control panels.

The fitting's electroless nickel plating enhances corrosion resistance and surface hardness, making it suitable for humid and moderate industrial environments. Its push-in connection allows for tool-free, rapid assembly and maintenance without compromising sealing integrity through repeated disconnections.

Rated for operation up to 60°C, this fitting maintains thermal stability and sealing performance. The male R thread has a tapered profile, which ensures a leak-free joint when used with appropriate thread sealants.

Its robust brass construction provides mechanical strength essential for pneumatic manifolds, actuator supply lines, distribution blocks, and compressed air feed lines in testing or prototype setups. Additionally, it complies with RoHS environmental standards.

Electroless nickel plating enhances corrosion resistance and durability. Compact 90° elbow design minimizes hose strain. Push-in connection enables fast, tool-free installation. Reliable male R 1/4 inch threaded connection.

Operating temperature rated up to 60°C for consistent performance. Suitable for pneumatic manifolds, actuator lines, and test rigs. Brass base material ensures mechanical strength. Compatible with 4mm push-in pneumatic tubing.

RoHS compliant for environmental safety. Ideal for industrial automation and compressed air systems. Explore similar Pneumatic Fittings and components at EnvMart for comprehensive solutions in pneumatic and hydraulic tooling.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This fitting is rated for operation up to 60°C, ensuring consistent performance in various applications.

It features a threaded-to-tube connection, specifically a male R 1/4 inch thread and a 4mm push-in tube connection.

The fitting is constructed from electroless nickel plated brass, which enhances its corrosion resistance and surface hardness.

This model provides a 90° elbow connection, which helps in routing and minimizing hose strain in tight spaces.

Yes, it complies with RoHS environmental standards, ensuring it meets safety and environmental regulations.

The push-in connection allows for rapid, tool-free assembly and maintenance, facilitating easy installation and disconnection without compromising sealing integrity.

It is suitable for use in pneumatic control manifolds, actuator supply lines, and compressed air feed lines in industrial automation and testing setups.

The tube connection size is 4mm, designed for compatibility with standard pneumatic tubing.

The male connection features a tapered R thread, which ensures a leak-free joint when used with appropriate thread sealants.

The fitting is manufactured in India, reflecting its origin in industrial production.

This fitting belongs to the SMC KQ2 series, known for its threaded-to-tube connection style.

The electroless nickel plating provides enhanced corrosion resistance and surface hardness, making it suitable for humid and moderate industrial environments.
