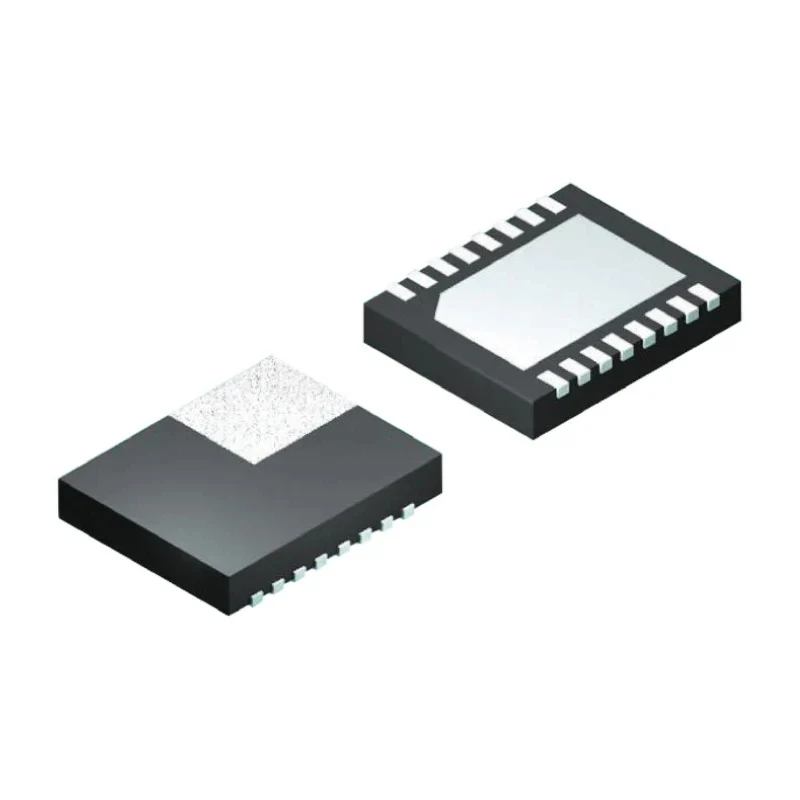

Texas Instruments Adaptive Cable Equaliser 400 m 16-Pin 3.47V LLP LMH0344SQE/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 0.7mm |
| Length | 4mm |
| Model | LMH0344SQE/NOPB |
| Width | 4mm |
| Mount Type | Surface |
| Series | LMH0344 |
| Maximum Operating Temperature | 85°C |
| Sub Type | Adaptive Cable Equaliser |
| Minimum Operating Temperature | -40°C |
| Pin Count | 16 |
| Maximum Supply Voltage | 3.47V |
| Minimum Supply Voltage | 3.14V |
| Supply Current | 100mA |
| Maximum Data Rate | 2.97Gbps |
| Maximum Equalisation Length | 400m |
| Maximum Input Return Loss | 15dB |
| Maximum Jitter | 0.2UI |
Key Features
- Supports maximum data rate of 2.97 Gbps ensuring efficient signal processing.
- Maximum equalisation length is 400 meters for extended cable distances.
- Features 16 pins in a low-profile package with 0.7 mm height and 4 mm length and width.
- Operates within a supply voltage range of 3.14 V to 3.47 V for stable performance.
- Supply current is 100 mA suitable for low power consumption designs.
- Maximum input return loss of 15 dB to minimize signal reflection.
- Maximum jitter is limited to 0.2 UI providing high timing accuracy.
- Designed for surface mount applications with no automotive standards.
Product Description
Texas Instruments LMH0344SQE/NOPB Adaptive Cable Equaliser 400 m 16-Pin 3.47V LLP is engineered to enhance signal quality over long cable distances in industrial and electronic applications. It significantly improves data streaming quality by compensating for signal degradation in cables up to 400 meters in length.
This adaptive cable equaliser supports a maximum data rate of 2.97 Gbps suitable for high-speed digital video and serial digital interface applications. With a 16-pin low-profile LLP package measuring 4 mm by 4 mm by 0.7 mm, it offers space-efficient integration on printed circuit boards.
Operating between supply voltages of 3.14 V and 3.47 V, it maintains low power consumption at 100 mA supply current, ideal for power-sensitive devices. The device ensures minimal signal reflection with a maximum input return loss of 15 dB and limits jitter to 0.2 UI for precise timing.
Designed as a surface mount device without automotive certifications, it offers reliable operation in temperature ranges from -40°C to 85°C, making it suitable for severe industrial conditions.
Supports maximum data rate of 2.97 Gbps ensuring efficient signal processing. Maximum equalisation length is 400 meters for extended cable distances. Features 16 pins in a low-profile package with 0.7 mm height and 4 mm length and width.
Operates within a supply voltage range of 3.14 V to 3.47 V for stable performance. Supply current is 100 mA suitable for low power consumption designs. Maximum input return loss of 15 dB to minimize signal reflection. Maximum jitter is limited to 0.2 UI providing high timing accuracy.
Designed for surface mount applications with no automotive standards. Operating temperature range from -40°C to 85°C for robust environments. Part of the LMH0344 series providing reliable cable equalisation functions.
This product is ideal for electronics manufacturing, communications systems, industrial equipment, and video signal processing. It supports engineers and designers in achieving superior signal integrity in cable-based transmission systems.
Explore more Adaptive Cable Equalisers and related electronics components on EnvMart for your industrial and electronics design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a maximum data rate of 2.97 Gbps, suitable for high-speed digital video and serial digital interface applications.
The maximum equalisation length is 400 meters, allowing it to enhance signal quality over long cable distances.
This model features a low-profile package with dimensions of 4 mm in length, 4 mm in width, and a height of 0.7 mm.
It operates within a supply voltage range of 3.14 V to 3.47 V for stable performance.
The supply current is 100 mA, making it suitable for low power consumption designs.
It has a maximum input return loss of 15 dB, which helps minimize signal reflection.
The maximum jitter is limited to 0.2 UI, providing high timing accuracy for data transmission.
It operates within a temperature range from -40°C to 85°C, suitable for severe industrial conditions.
This model is designed for surface mount applications, facilitating integration on printed circuit boards.
It is part of the LMH0344 series, which provides reliable cable equalisation functions.
It is ideal for electronics manufacturing, communications systems, industrial equipment, and video signal processing.
The country of origin for this adaptive cable equaliser is India.
