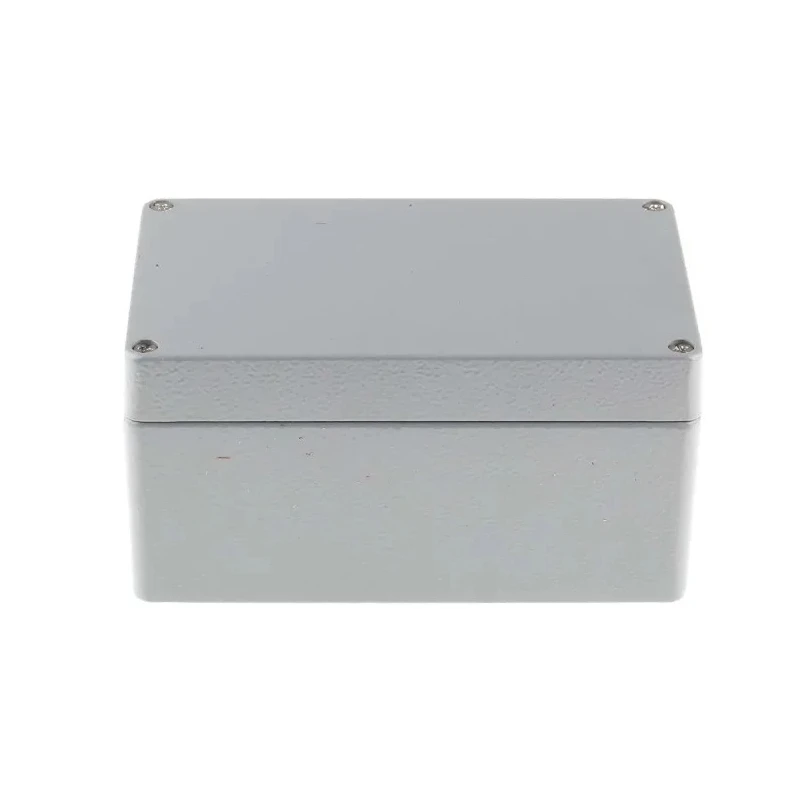

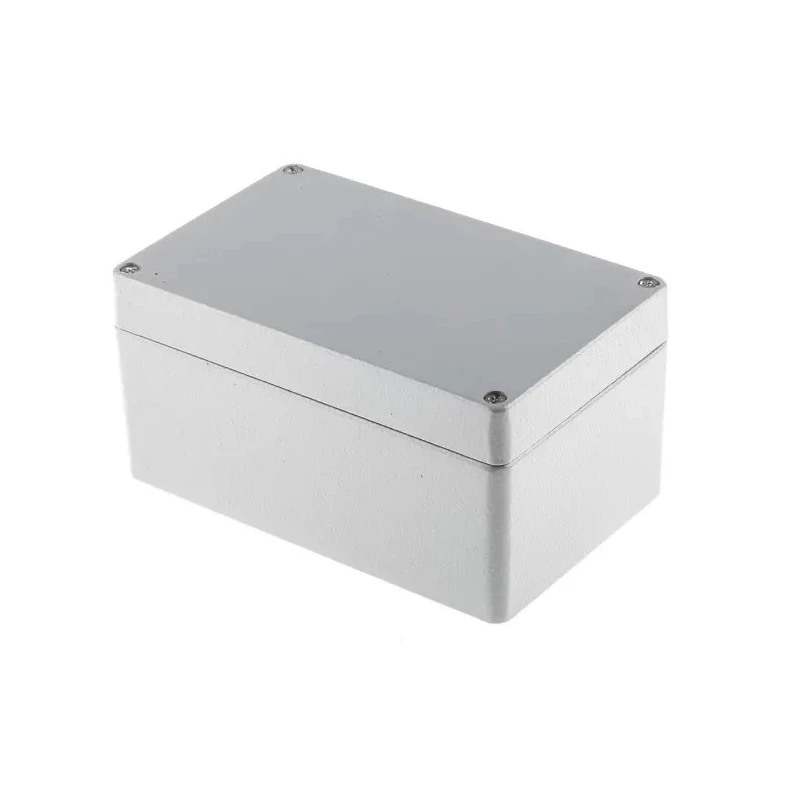

RS PRO Grey Grey Lid Die Cast Aluminium Enclosure IP66 81 mm x 160 mm x 100 mm 760-8989

RS PRO 760-8989 Grey Lid Die Cast Aluminium Enclosure is a premium quality IP66 rated enclosure measuring 81 mm in height, 160 mm in length, and 100 mm in width. Manufactured from die cast aluminium alloy (ALSi12) with a grey powder-coated finish, this enclosure is designed for harsh and demanding industrial and outdoor applications requiring robust protection.

The enclosure provides total ingress protection against dust and water jets, certified to IP66 standards, confirmed through the inclusion of a continuous neoprene O-ring gasket sealing the lid and base. It features 4 stainless steel lid screws and 4 copper-plated earthing screws for effective grounding and mechanical security.

The enclosure has a 3 mm thick wall, enhancing its mechanical resistance and durability in challenging environments. It does not feature flange mounting but supports DIN rail mounting points inside for modular electrical components. This unshielded enclosure effectively protects sensitive electrical and electronic components from environmental hazards.

This product complies with multiple international approvals including RoHS compliance, IEC 60529 ingress protection rating, UL 50, UL 508A, NEMA 4X and 6P, and MIL-STD-810G mechanical vibration and shock standards, ensuring reliable and certified protection for industrial uses.

Construction industries, automation systems, HVAC equipment, manufacturing plants, and water treatment facilities will benefit from the reliable and secure housing offered by this enclosure. Its compact size makes it suitable for tight installation spaces without compromising protection levels.

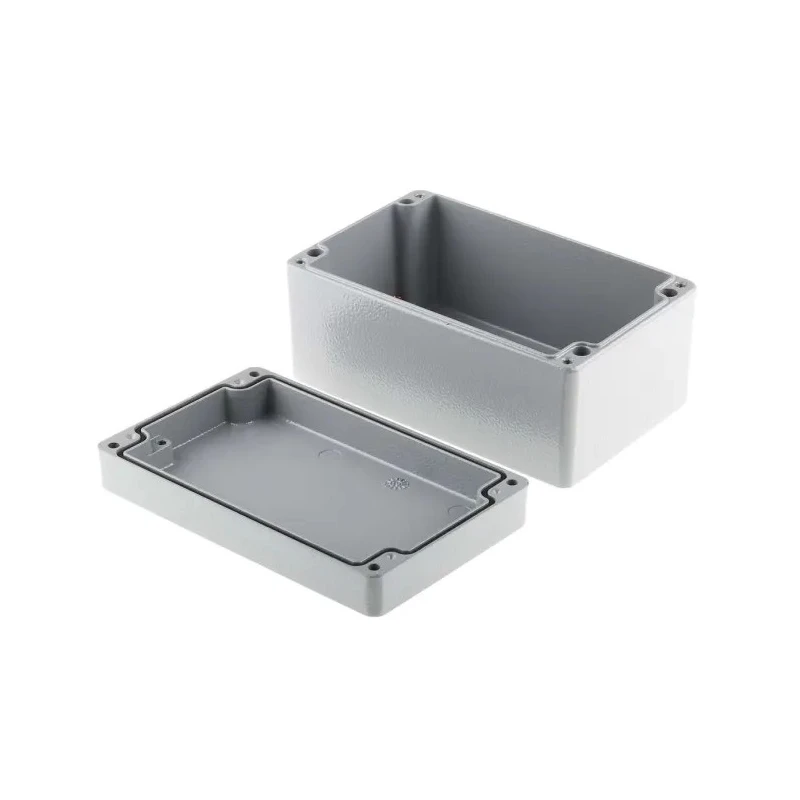

The enclosure includes the lid, base, neoprene gasket, and all necessary screws for installation and grounding. This makes it a comprehensive enclosure solution that meets industry standards and ensures safety and longevity of housed components.

Explore our wide range of electrical enclosures at EnvMart to find the ideal solution for your application and ensure reliable system protection. The enclosure is constructed from durable die cast aluminium alloy with a powder-coated grey finish.

It features a neoprene O-ring gasket ensuring a watertight seal for protection against dust and water. The IP66 rating guarantees protection against powerful water jets and total dust ingress. Includes 4 stainless steel lid screws and 4 copper-plated earthing screws for secure grounding.

Designed with a 3 mm thick wall for robust mechanical protection in harsh environments. Not flanged and unshielded, suitable for general electronic and electrical component housing. Complies with RoHS directives and international standards such as IEC 60529 and UL 50.

Ideal for outdoor electrical installations, automation equipment, and industrial control systems. EnvMart offers a comprehensive selection of high-quality enclosures including the RS PRO range known for reliable industrial-grade protection.
