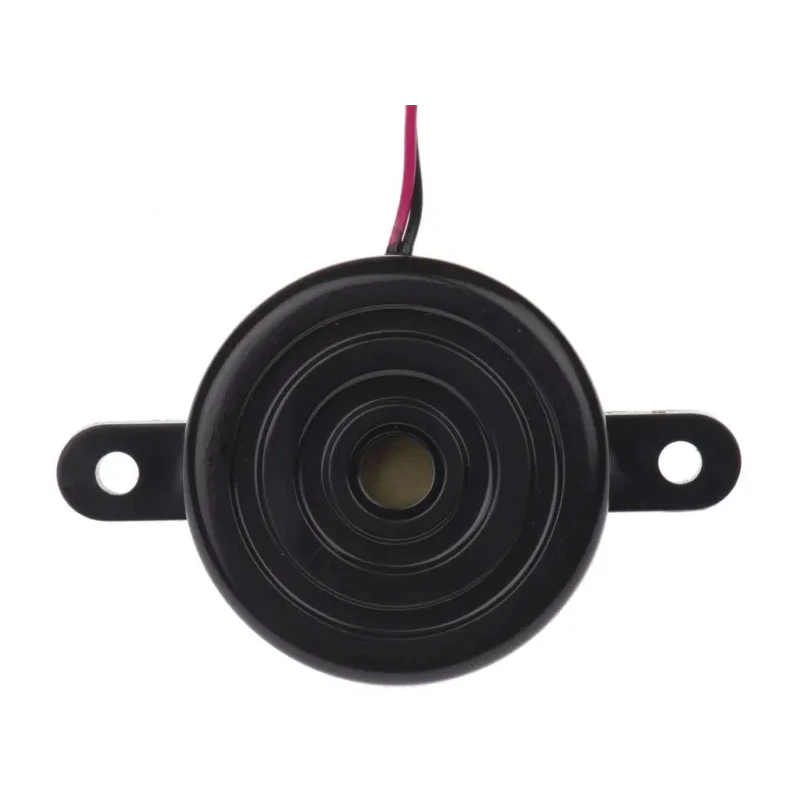

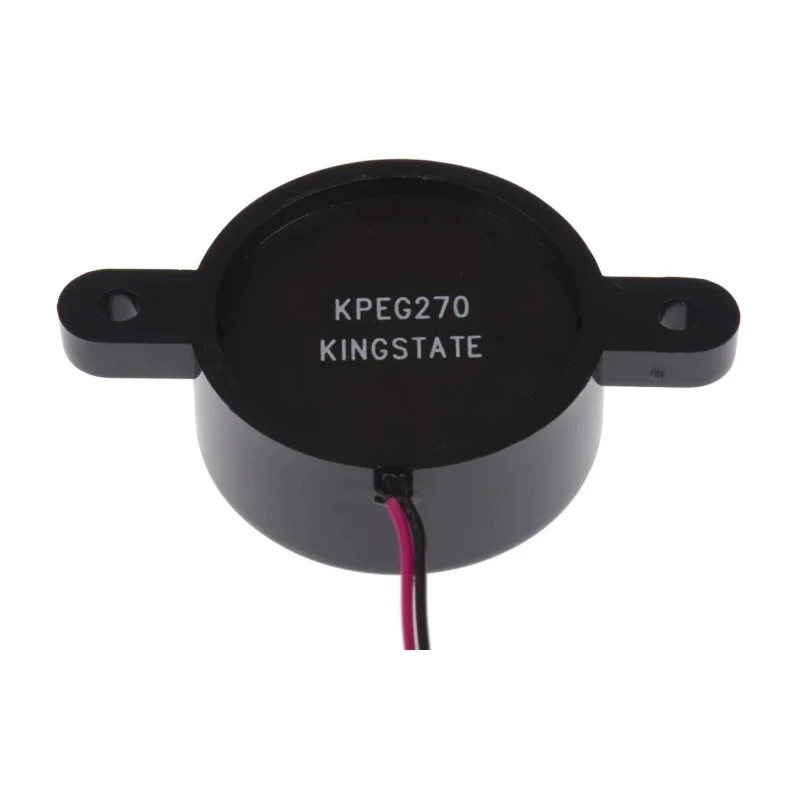

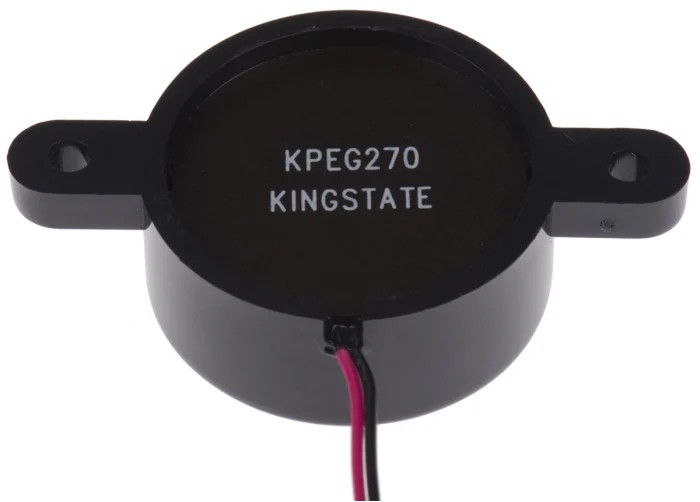

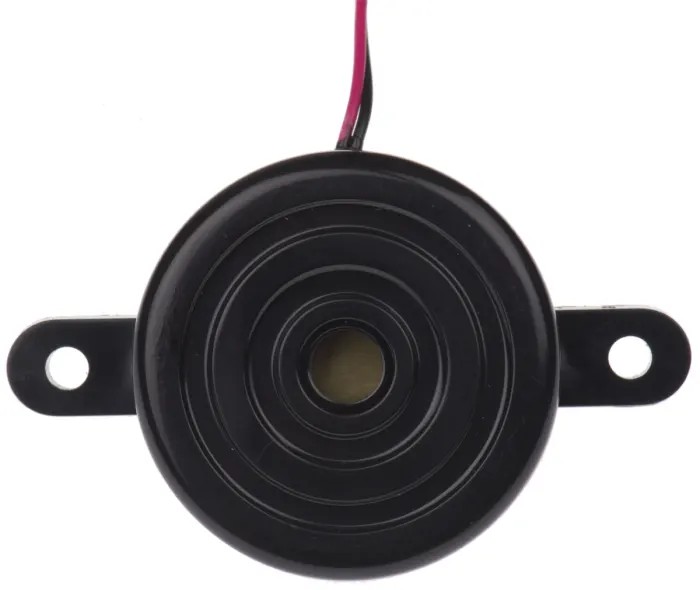

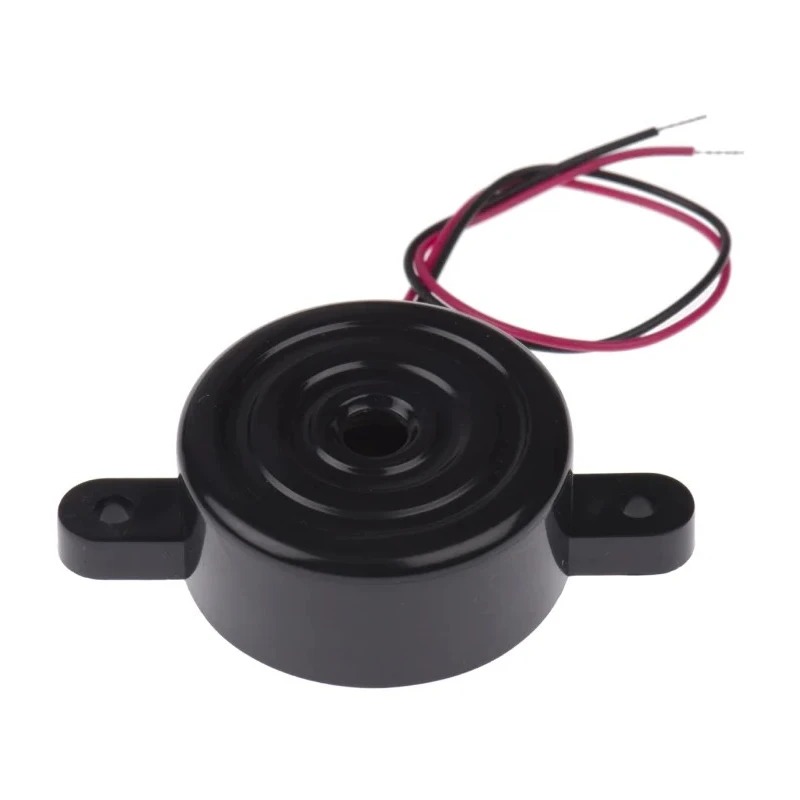

RS PRO 86 dB Panel Mount Continuous Internal 14.5 mm Piezo Buzzer Component 3 V dc Min 28V dc Max 754-2006
Specifications
| Country of Origin | Taiwan |
|---|---|
| Diameter | 33.7mm |
| Brand | RS PRO |
| Sound Level | 86dB |
| Height | 14.5mm |
| Model | 754-2006 |
| Drive Type | Internal |
| Mount Type | Panel Mount |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| Standards/Approvals | RoHS2.0 |
| Maximum Frequency | 4kHz |
| Termination Style | Wire Terminal |
| Maximum Supply Voltage | 28V dc |
| Minimum Supply Voltage | 3V dc |
| Supply Current | 5mA |
| Tone Type | Continuous |
| Minimum Frequency | 3000Hz |
Key Features
- This piezo buzzer features a panel mount type for easy installation.
- It produces a continuous internal tone designed for audible alerts.
- The buzzer has a diameter of 33.7 mm and a height of 14.5 mm.
- It operates within a temperature range of -30°C to +85°C.
- The supply current required is 5 mA for efficient power use.
- It supports a frequency range from 3000 Hz to a maximum of 4 kHz.
- Termination is via wire terminals for secure connections.
- The buzzer complies with RoHS 2.0 standards for environmental safety.
Product Description
RS PRO 754-2006 Piezo Buzzer Component is a panel mount, continuous internal drive type buzzer designed for electronic applications requiring an audible alert with a high sound level of 86 dB. Its robust ABS body provides durability and resistance against wear, abrasion, and impact, making it suitable for challenging industrial and commercial environments.
This component operates reliably with a minimum supply voltage of 3 V dc and a maximum of 28 V dc, drawing a nominal 5 mA current. The buzzer emits a continuous tone frequency ranging from 3000 Hz to 4000 Hz, suitable for alerting and signaling within control panels and electronic devices.
The buzzer's compact dimensions, with a diameter of 33.7 mm and a height of 14.5 mm, allow easy panel mounting and integration into varied electronic assemblies. The wire terminal termination style enables secure and convenient electrical connections.
Operating reliably within a temperature range of -30°C to +85°C, this buzzer is ideal for use in industrial automation, control panel assemblies, and safety equipment requiring an audible signaling device. It conforms to RoHS 2.0 standards, ensuring compliance with environmental and safety regulations.
This product provides an 86 dB sound level for clear audible alerts. Panel mount style allows direct attachment to PCBs or panels. The continuous internal drive ensures steady tone output. Durable ABS body construction for long-term use.
Wide operating voltage of 3 V dc to 28 V dc for versatile applications. Temperature operating window from -30°C to +85°C supports varied environments. Wire terminal termination makes connection straightforward and reliable.
RoHS 2.0 compliant, meeting modern electronic component standards.
This piezo buzzer is used extensively in electronics manufacturing, HVAC systems, industrial machinery, security devices, and automotive applications where reliable, distinct audible signaling is critical.
Explore similar high-quality components in the RS PRO range for comprehensive industrial and electronic solutions available at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sound level of this piezo buzzer is 86 dB, providing clear audible alerts for various applications.
It operates within a voltage range of 3 V dc to 28 V dc, making it versatile for different electronic applications.
The buzzer has a diameter of 33.7 mm and a height of 14.5 mm, allowing for easy panel mounting.
This model supports a frequency range from 3000 Hz to a maximum of 4 kHz, suitable for continuous tone alerts.
It features a wire terminal termination style, which allows for secure and convenient electrical connections.
The buzzer operates reliably within a temperature range of -30°C to +85°C, making it suitable for various environments.
It uses an internal drive type, designed for continuous tone output.
Yes, it complies with RoHS 2.0 standards, ensuring it meets environmental safety regulations.
This buzzer is suitable for use in industrial automation, control panel assemblies, and safety equipment requiring audible alerts.
The supply current required is 5 mA, which aids in efficient power use during operation.
The country of origin for this buzzer is Taiwan.
The panel mount style allows for direct attachment to PCBs or panels, facilitating easy integration into electronic assemblies.
