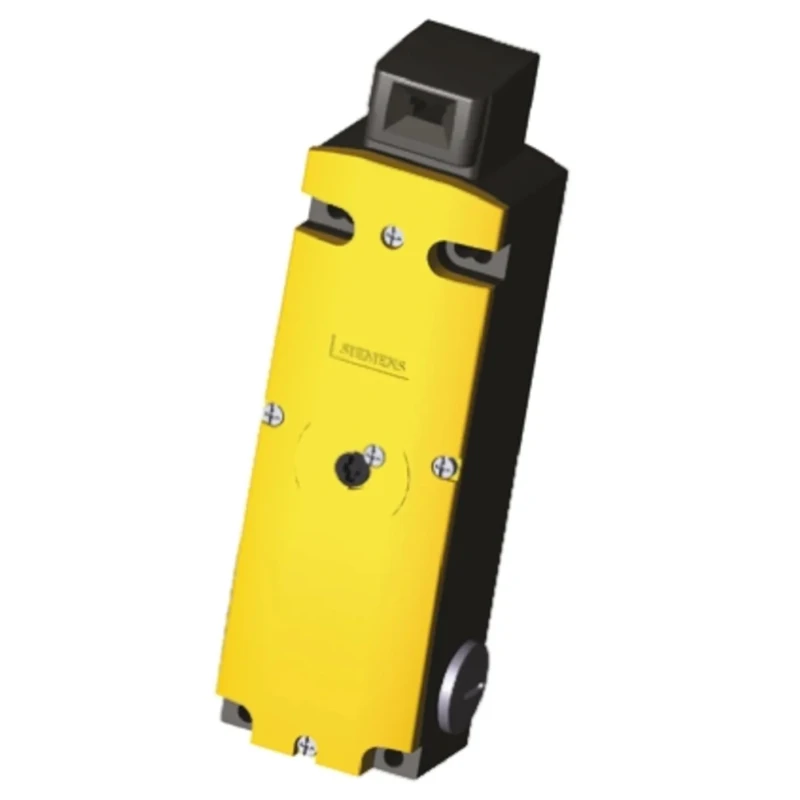

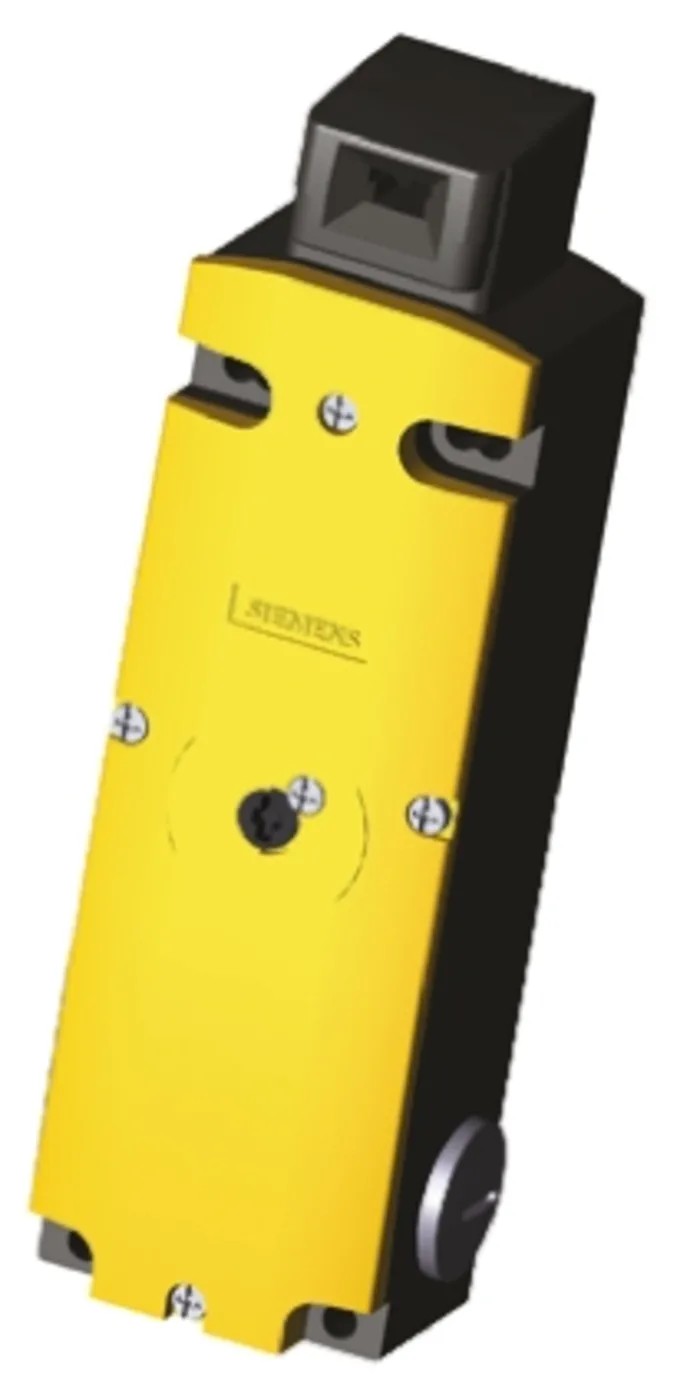

Siemens 3SE5 Series Solenoid Interlock Switch Power to Unlock 230V AC 3.5W 3SE5312-0SD13
Specifications
| Country of Origin | Germany |
|---|---|
| Power Consumption | 3.5W |
| Brand | Siemens |
| Length | 184.1mm |
| Model | 3SE5312-0SD13 |
| Depth | 55.7mm |
| IP Rating | IP67, IP66 |
| Width | 54mm |
| Housing Material | Metal |
| Series | 3SE5 |
| Actuator Type | Standard Coded |
| Terminal type | Screw |
| Supply Voltage | 230V ac |
| Standards/Approvals | VDE, UL, CSA |
| Contact AC Voltage | 230V ac |
| Contact Current | 1.5A |
| Safety Contacts | 1 NO |
| Conduit Entry | M20 |
| A number of additional release mechanisms to handle any application | auxiliary release mechanism, lock release, escape release and emergency release |
Key Features
- This switch features 1 normally open safety contact (1 NO) with 1.5A contact current rating.
- Constructed with metal housing and rated IP66 and IP67 for protection against dust and water ingress.
- Includes a separate actuator and electromagnetic tumbler designed to keep protective doors secured during machinery shutdown.
- The actuator can be rotated in four 90-degree increments to allow multiple approaches for mounting.
- Features LED status display and cable entry via three M20 conduit entries for easy installation.
- Incorporates auxiliary release mechanisms for manual unlocking during power failure or installation.
- Complies with VDE, UL, CSA standards and is certified for safety and reliability.
- Designed for industrial automation applications requiring secure interlocking and monitored door locking systems.
Product Description
Siemens 3SE5312-0SD13 3SE5 Series Solenoid Interlock Switch Power to Unlock operates at a supply voltage of 230V AC with a power consumption of 3.5W, engineered for securing protective doors on industrial machinery.
The switch is equipped with a metal housing capable of withstanding harsh industrial environments, with IP66 and IP67 ingress protection ratings ensuring resistance to dust and water. It includes a single normally open safety contact (1 NO) rated at 1.5A for reliable contact current and uses screw-type terminals for secure electrical connections.
A separate actuator and an electromagnetic tumbler mechanism keep doors locked until the control system sends the release signal. The actuator heads are versatile, allowing rotation in four increments of 90 degrees and supporting five directions of approach to suit various installation layouts.
The device integrates contact and magnet monitoring with low current draw (≤170mA) and a thermal current capacity of 10A, providing enhanced safety and operational monitoring. The LED status indicators facilitate quick visual confirmation of the switch state during operation or maintenance.
Additional features include a range of manual release mechanisms such as auxiliary release, lock release, escape release, and emergency release to accommodate safety and accessibility requirements, especially during power failures or system maintenance.
The switch meets international standards with approvals from VDE, UL, CSA, CCC, EAC, and CE, and a SIL 3 rating for high-level safety integrity in industrial control systems compliant with IEC 62061 and IEC 60068-2-27 standards.
This product is designed for industrial automation, manufacturing, machine safety, and applications requiring reliable door locking and safety interlocking solutions. This set contains the Solenoid Interlock Switch without actuator, which must be purchased separately.
Browse more Siemens industrial automation components and solenoid interlock solutions at EnvMart for enhanced operational safety and efficiency.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power consumption of this model is 3.5W.
It operates at a supply voltage of 230V AC.
This unit has IP66 and IP67 ratings for protection against dust and water ingress.
It features one normally open safety contact (1 NO) rated at 1.5A.
The housing is made of metal, designed to withstand harsh industrial environments.
It includes auxiliary release, lock release, escape release, and emergency release mechanisms.
The dimensions are 184.1mm in length, 54mm in width, and 55.7mm in depth.
It uses screw-type terminals for secure electrical connections.
Yes, it features LED status indicators for quick visual confirmation of the switch state.
It complies with VDE, UL, CSA, CCC, EAC, and CE standards.
Yes, the actuator can be rotated in four 90-degree increments to allow for multiple mounting approaches.
It is designed for industrial automation, manufacturing, machine safety, and applications requiring reliable door locking and safety interlocking solutions.
