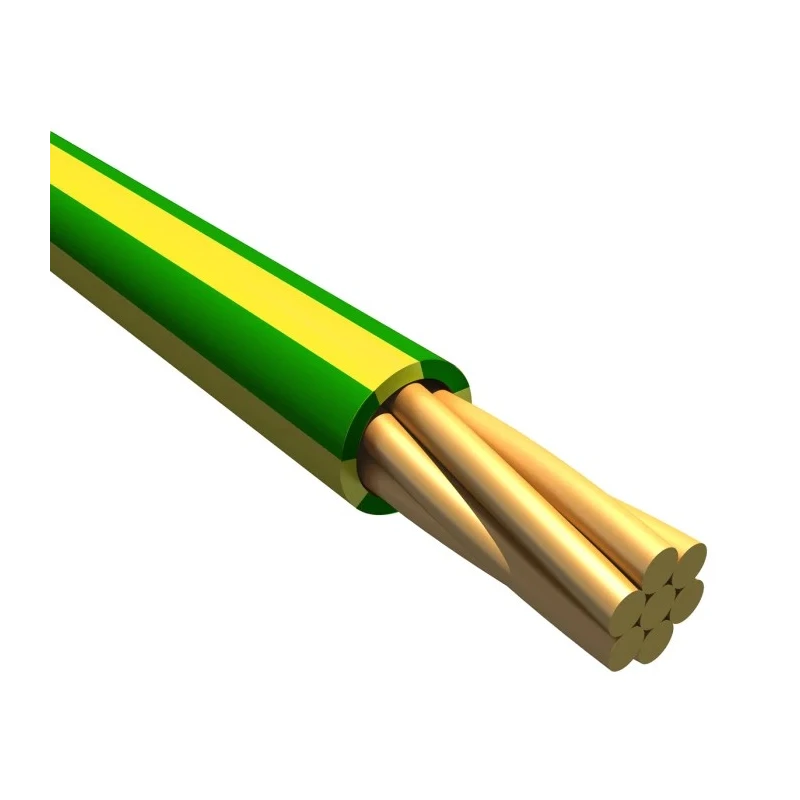

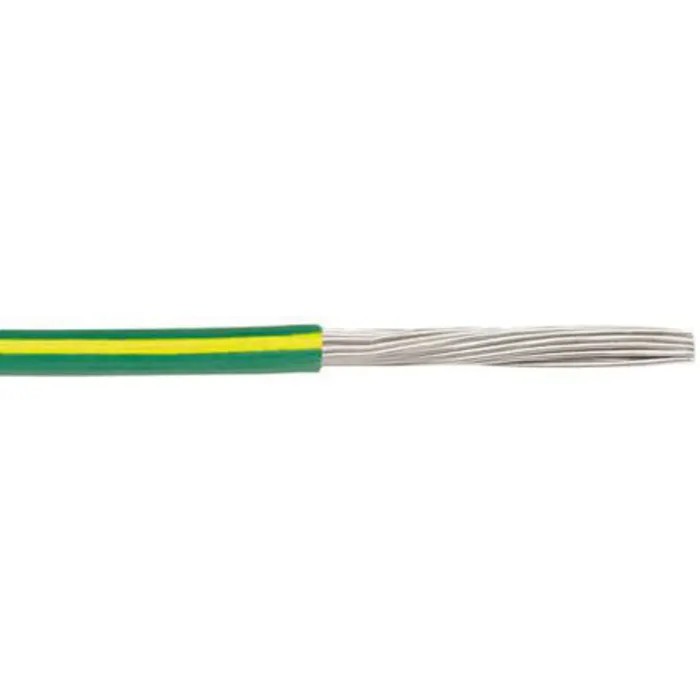

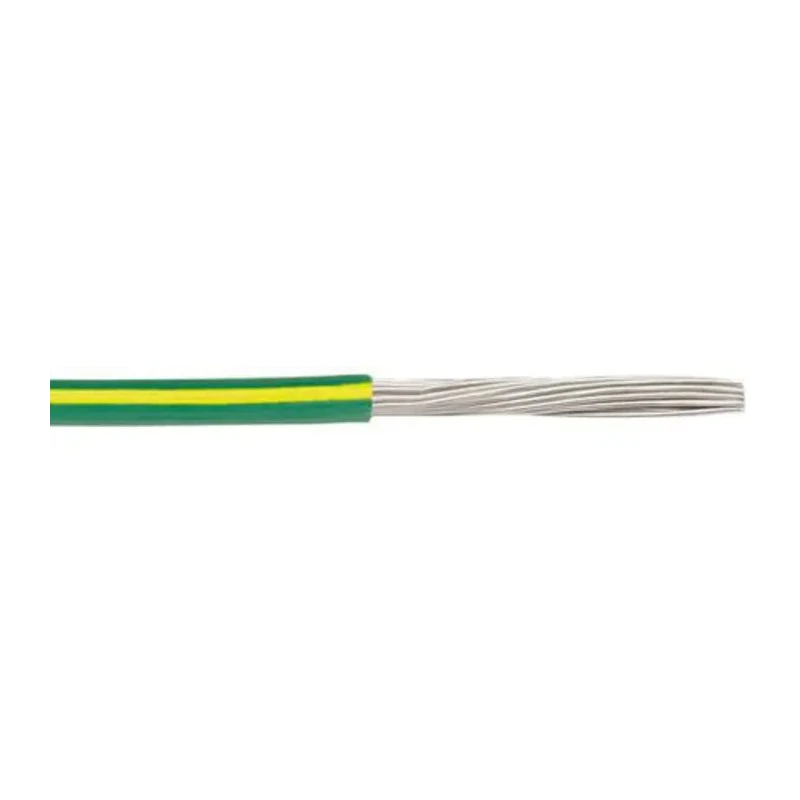

Alpha Wire Ecogen Ecowire Plus Series Green Yellow 1.3 mm² (16 AWG) Hook Up Wire 19/0.29 mm Strands 30m 300V 110°C 6827 GY005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Colour | Green/Yellow |
| Temperature range | - 40°C to +110°C |
| CROSS SECTIONAL AREA | 1.3mm² |
| Model | 6827 GY005 |
| Cable Length | 30m |
| Series | Ecogen Ecowire Plus |
| Outside diameter | 1.96mm |
| Maximum Operating Temperature | 110°C |
| Conductor Material | Copper |
| Insulation Thickness | 0.010 Inch (0.24 mm) |
| Cable Type | Hookup |
| Wire Diameter | 0.077 Inch (1.96 mm) |
| Minimum Operating Temperature | -40°C |
| Conductor Size | 16 AWG (1.23 mm²) |
| Jacket Material | Modified Polyphenylene Ether |
| Standards/Approvals | CE, ISO 6722, Reach compliant, RoHS compliant |
| Jacket Colour | Green, Yellow |
| Fire Behaviour | Flame Retardant, Halogen Free, Low Smoke Halogen Free |
| American Wire Gauge | 16AWG |
| Number of Strands | 19 |
| Core Strands | 19 x 0.29mm |
| Size of Strands | 0.29mm |
| Stranding | 19/29 (19 x 0.29) |
Key Features
- This hook-up wire has a green and yellow modified polyphenylene ether jacket.
- It features 19 strands of 0.29 mm diameter copper conductors for flexibility.
- The cable length is 30 meters with an outside diameter of 1.96 mm.
- Rated for 300 V voltage and operating temperature range from -40°C to 110°C.
- The cable insulation provides excellent resistance to oils, solvents, and hazardous fluids.
- Meets CE, ISO 6722, RoHS, and Reach compliance standards.
- Designed for industrial, solar, transportation, wind power, and medical equipment applications.
- EcoWire Plus insulation is lightweight, recyclable, and provides superior dielectric strength with reduced wall thickness.
Product Description
Alpha Wire 6827 GY005 Ecogen Ecowire Plus Series Hook Up Wire is a high-performance green and yellow electrical cable with a cross-sectional area of 1.3 mm² (16 AWG). It contains 19 strands of 0.29 mm copper wires, stranded for flexibility and conductivity. The wire insulation is made from modified polyphenylene ether (mPPE), providing flame retardant, halogen-free, and low smoke halogen characteristics.
This hook-up wire has an outside diameter of 1.96 mm and a cable length of 30 meters, suitable for applications demanding durable and reliable wiring. It supports a voltage rating of 300 V and can safely operate in temperatures from -40°C up to 110°C, making it ideal for harsh industrial environments.
The EcoWire Plus insulation enhances fluid resistance and electrical performance, making it an excellent choice for solar, transportation, wind power, industrial manufacturing, and medical device wiring. This wire complies with CE, ISO 6722 thin wall and ultra thin wall standards, as well as RoHS and Reach regulations, eliminating hazardous materials like heavy metals and halogens.
This product provides lighter weight and reduced insulation thickness compared to traditional PVC, yet offers superior dielectric strength. The EcoWire Plus is 100% recyclable, contributing to environmentally responsible manufacturing and disposal.
This hook-up wire features 19 strands of 0.29 mm bare copper conductors for flexibility. It uses modified polyphenylene ether (mPPE) insulation that is flame retardant and halogen free. The wire diameter measures 1.96 mm with a length of 30 meters per reel.
It operates at 300 V with a temperature range of -40°C to 110°C. The cable jacket is resistant to oils, solvents, and hazardous fluids. Certifications include CE, ISO 6722, Reach compliant, and RoHS compliant standards. Recommended for industrial, solar, transportation, wind power, and medical applications.
Alpha Wire products are engineered for reliability and industrial performance. Browse Alpha Wire solutions and other hook-up wires to meet your specific electrical wiring needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This hook-up wire is rated for 300V.
It operates within a temperature range of -40°C to +110°C.
The wire contains 19 strands of 0.29 mm diameter copper conductors.
The outside diameter of this wire is 1.96 mm.
The insulation is made from modified polyphenylene ether (mPPE), which is flame retardant and halogen-free.
This wire meets CE, ISO 6722, RoHS, and Reach compliance standards.
The wire has a length of 30 meters.
It is designed for industrial, solar, transportation, wind power, and medical equipment applications.
The cross-sectional area of this wire is 1.3 mm² (16 AWG).
The insulation material is flame retardant, halogen-free, and low smoke halogen free.
The conductor size is 16 AWG, which is equivalent to 1.23 mm².
The weight per unit length is not specified in the provided data.
