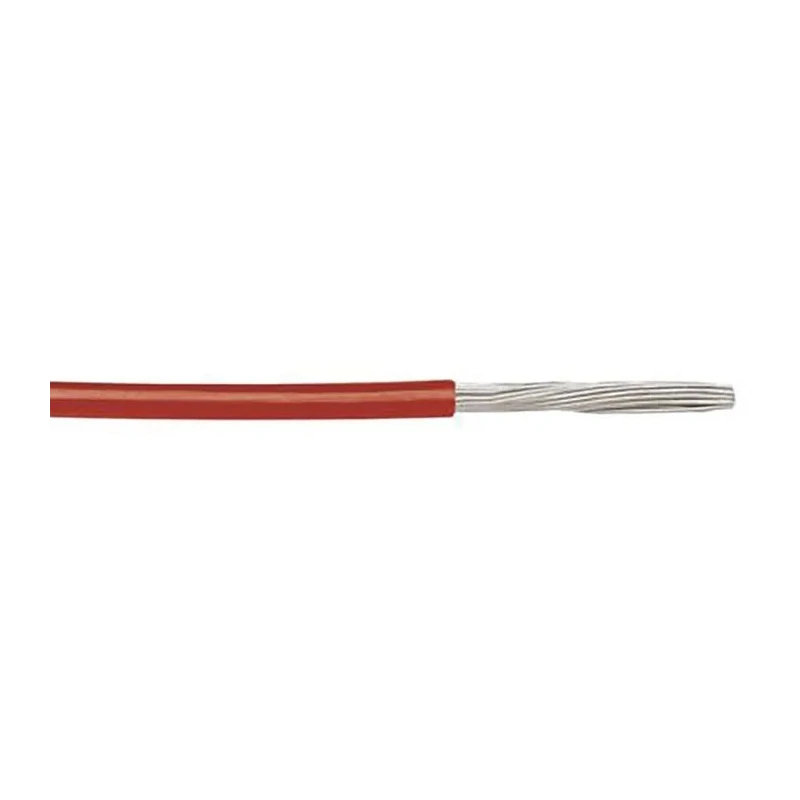

Alpha Wire Ecogen Ecowire Plus Series Red 0.75mm² Hook Up Wire, 18 AWG, 19/0.23 mm Core Strands, 30 m, MPPE 6825 RD005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Temperature range | - 40°C to +110°C |
| CROSS SECTIONAL AREA | 0.75mm² |
| Model | 6825 RD005 |
| Cable Length | 30m |
| Series | Ecogen Ecowire Plus |
| Outside diameter | 1.57mm |
| Maximum Operating Temperature | 110°C |
| Conductor Material | Copper |
| Sub Type | EcoWire Plus |
| Insulation Thickness | 0.008 Inch (0.20 mm) |
| Wire Diameter | 0.062 Inch (1.57 mm) |
| Minimum Operating Temperature | -40°C |
| Conductor Size | 18 AWG (0.81 mm²) |
| Jacket Material | MPPE |
| Standards/Approvals | CE, ISO 6722, Reach compliant, RoHS compliant |
| Jacket Colour | Red |
| Fire Behaviour | Flame Retardant, Halogen Free, Low Smoke Halogen Free |
| American Wire Gauge | 18AWG |
| Number of Strands | 19 |
| Core Strands | 19 x 0.23mm |
| Size of Strands | 0.23mm |
| Stranding | 19/0.0092 (19 x 0.23) |
Key Features

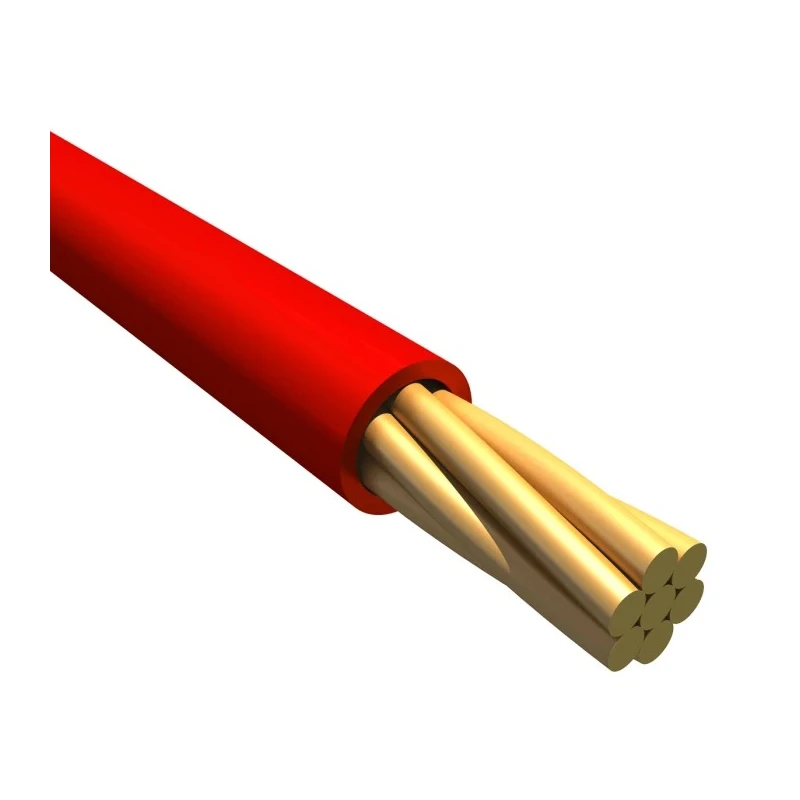

- Constructed with 19 strands of 0.23 mm diameter copper core strands for flexibility and conductivity.
- Red jacket made from flame retardant, halogen free, low smoke halogen free MPPE material.
- Cable length is 30 meters with an outside diameter of 1.57 mm for compact routing and installation.
- Meets CE, ISO 6722, RoHS, and REACH standards for safety and environmental compliance.
- EcoWire Plus insulation offers excellent resistance to hazardous fluids and is easily recyclable.
- Designed for use in solar, transportation, wind power, industrial, and medical sectors.
Product Description
Alpha Wire 6825 RD005 Ecogen Ecowire Plus Series Red 0.75mm² Hook Up Wire, 18 AWG, with 19/0.23 mm core strands, features MPPE insulation rated for 300 V and operating temperatures from -40°C up to 110°C. This product is engineered for demanding factory and industrial applications where durability and compliance with strict environmental standards are needed.
The wire's conductor is made from stranded bare copper, providing excellent electrical conductivity. The modified polyphenylene ether (MPPE) insulation offers superior fluid resistance, reduced wall thickness, and higher dielectric strength compared to standard PVC insulation. The red jacket is flame retardant, halogen free, and low smoke halogen free, ensuring safety and compliance with international certifications including CE, ISO 6722, RoHS, and REACH.

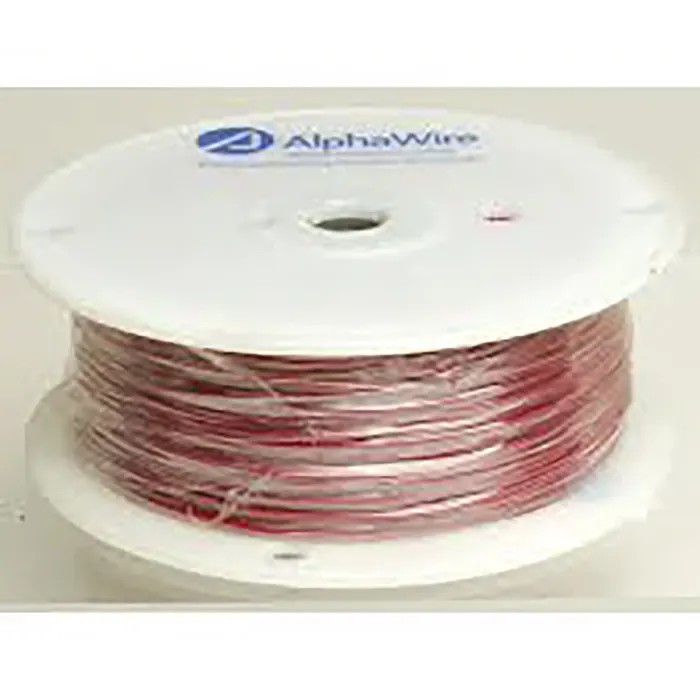

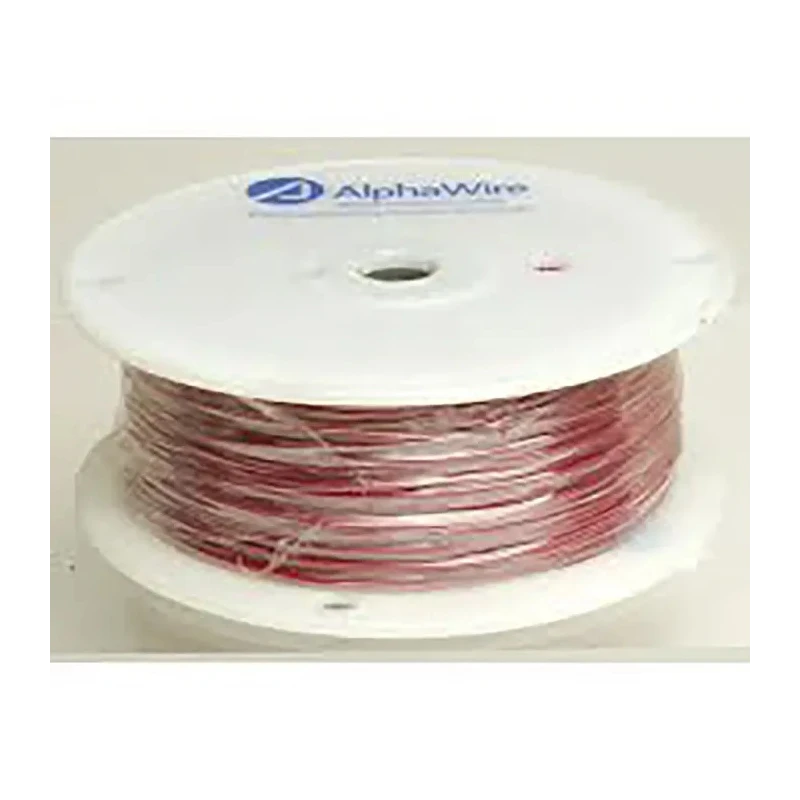

Each reel measures 30 meters in length and the wire has an outside diameter of 1.57 mm. The 18 AWG (0.81 mm²) conductor size, with 19 strands of 0.23 mm diameter, ensures flexibility without compromising mechanical strength. The EcoWire Plus series is a 100% recyclable alternative to XLPE insulated equipment wire, helping manufacturers meet Waste Electrical and Electronic Equipment (WEEE) directives.
This hook up wire is widely used in solar power installations, transportation systems, industrial machinery, wind power projects, and medical equipment, owing to its robustness and fluid resistance.
Constructed with 19 strands of 0.23 mm copper for superior flexibility. Flame retardant and halogen free MPPE jacket reduces environmental impact. Rated for 300 V and temperature range from -40°C to 110°C. Complies with CE, ISO 6722 thin wall, RoHS, and REACH standards.
30-meter cable length ideal for varied industrial applications. EcoWire Plus insulation offers excellent resistance against oils, solvents, and fuels. Suitable for solar, transportation, wind power, industrial, and medical uses.
Explore more Hook Up Wires and advanced wiring solutions with Alpha Wire in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The conductor size of this model is 18 AWG, which is equivalent to 0.81 mm².
It is rated for a maximum operating temperature of 110°C.
This hook up wire features MPPE insulation, which is flame retardant, halogen free, and low smoke halogen free.
The cable length is 30 meters.
The outside diameter of this wire is 1.57 mm.
The conductor is constructed with 19 strands of 0.23 mm diameter copper.
This model is rated for a voltage of 300 V.
It complies with CE, ISO 6722, RoHS, and REACH standards.
The minimum operating temperature is -40°C, while the maximum is 110°C.
It is suitable for use in solar power installations, transportation systems, industrial machinery, wind power projects, and medical equipment.
The conductor is made from stranded bare copper, providing excellent electrical conductivity.
The insulation thickness is 0.008 inches (0.20 mm).
