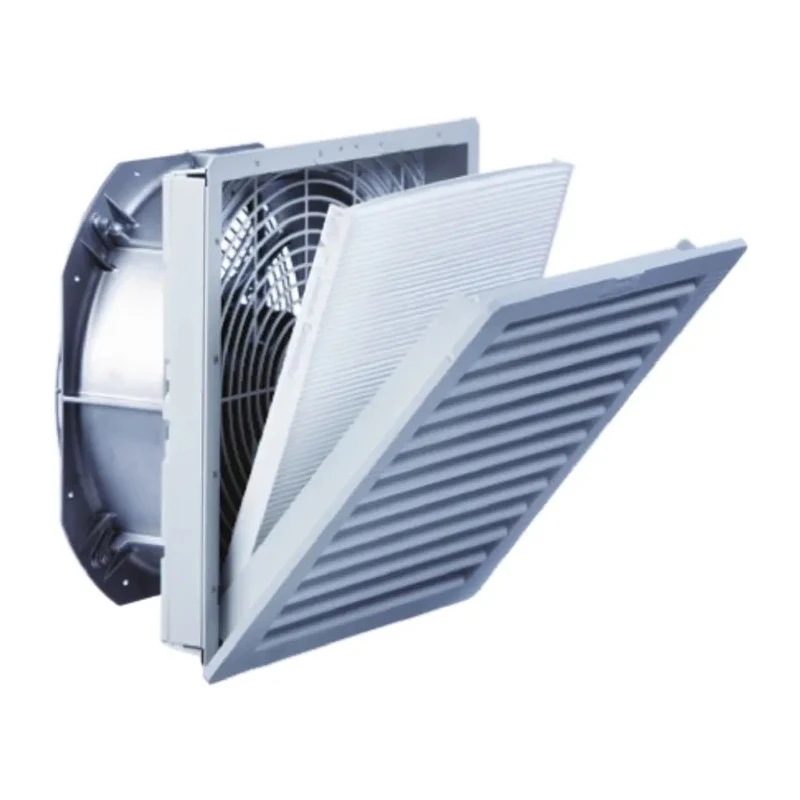

Pfannenberg PF 67.000 SL Series Filter Fan 230V AC 180W 705 m³/h Filtered Airflow 2125 m³/h Unimpeded Airflow 320 mm x IP55

Pfannenberg PF 67.000 SL Series Filter Fan is a high air flow filter fan designed for industrial and commercial HVAC and thermal management applications. Operating at 230V AC with 180W input power, this filter fan delivers a high filtered airflow of 705 m³/h and an unimpeded airflow of 2125 m³/h, ensuring efficient cooling and protection of electrical enclosures against dust and moisture.

The fan features an IP55 ingress protection rating, making it suitable for use in harsh environments including outdoor installations. Its face dimensions are 320 mm by 320 mm with an installation depth of 150 mm, providing a compact footprint for various panel sizes. The unit incorporates patented water and dust pre-separation technology within the lamellas, significantly extending filter mat life and reducing maintenance requirements.

This fourth-generation filter fan utilizes a "Click and Fit" design with hardware-free installation and easy filter mat replacement. The ball bearing mechanism promotes durable, reliable operation with low noise levels around 69 dB. The terminal is a cage clamp design that can be rotated in 90° steps to accommodate different wiring orientations.

The filter fan is fully certified with RoHS, UL, CE, EN, and cULus standards, suitable for industrial, laboratory, manufacturing, and construction environments requiring robust air filtration. Its reversible airflow and flatpack configuration add versatility, allowing for intake or exhaust operation as needed.

Colour is typically RAL 7035, with some variants in RAL 9011 black. Manufactured in Germany, this Filter Fan is a proven solution for optimizing enclosure thermal management and prolonging equipment life.

Provides filtered airflow of 705 cubic meters per hour for optimal enclosure ventilation. Features unimpeded airflow capacity of 2125 cubic meters per hour for maximum air exchange. Constructed with IP55 rating for protection against dust and water ingress.

Compact design with face dimensions of 320 mm by 320 mm and installation depth of 150 mm. Incorporates ball bearing type for reliable and durable operation. Equipped with spring terminal type for convenient electrical connections.

Designed for flatpack configuration with reversible airflow. Meets industry standards including RoHS, UL, CE, EN, and cULus approvals. Explore the industrial fans category for more solutions on air cooling and filtration at EnvMart.
