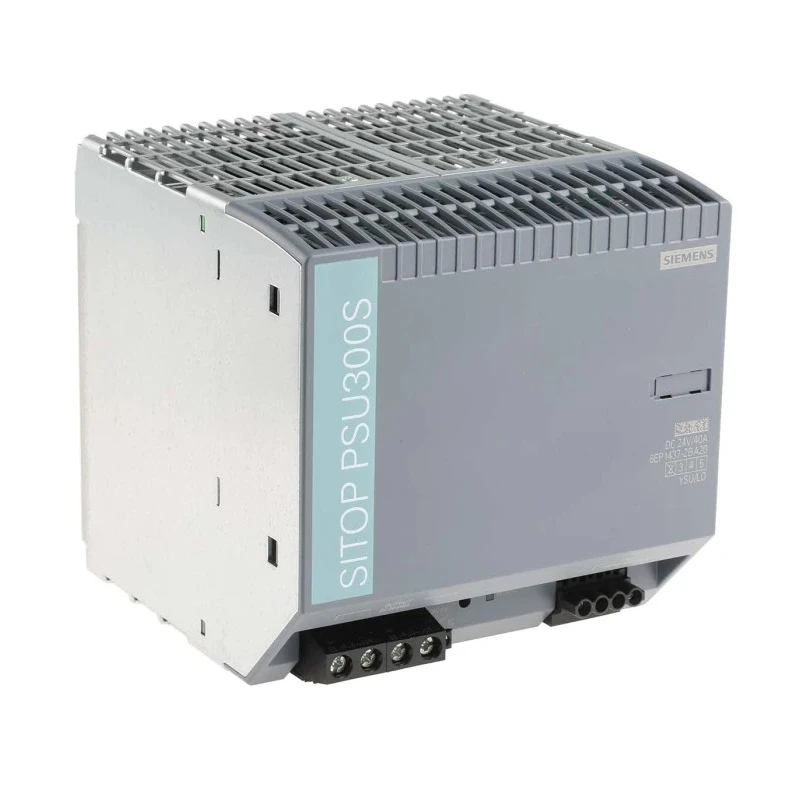

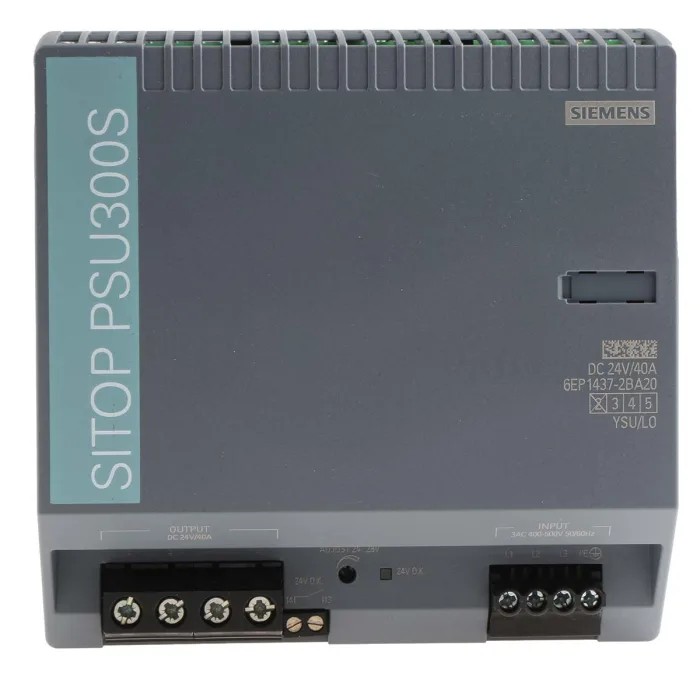

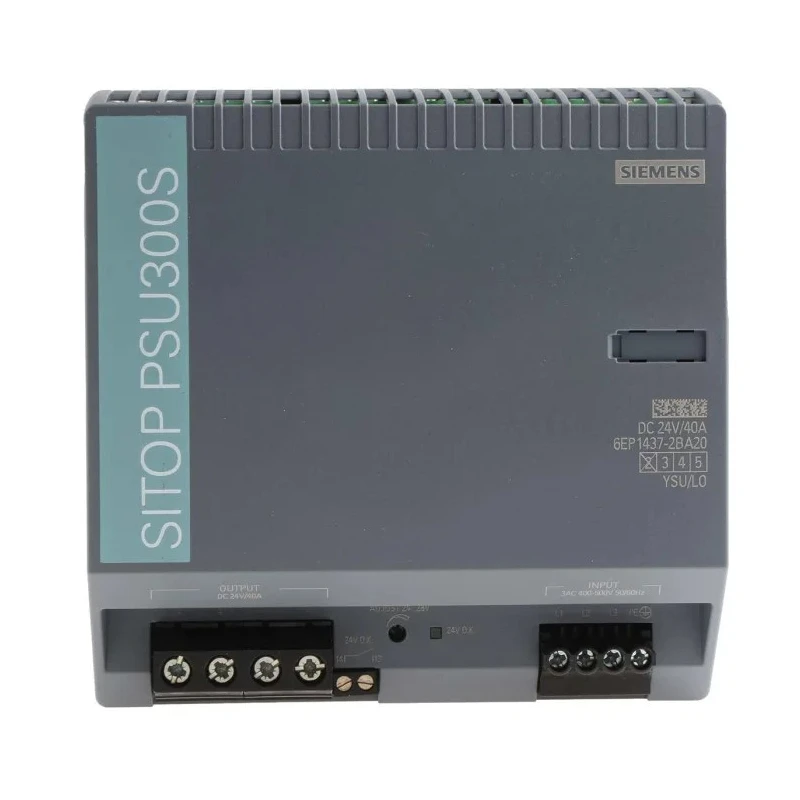

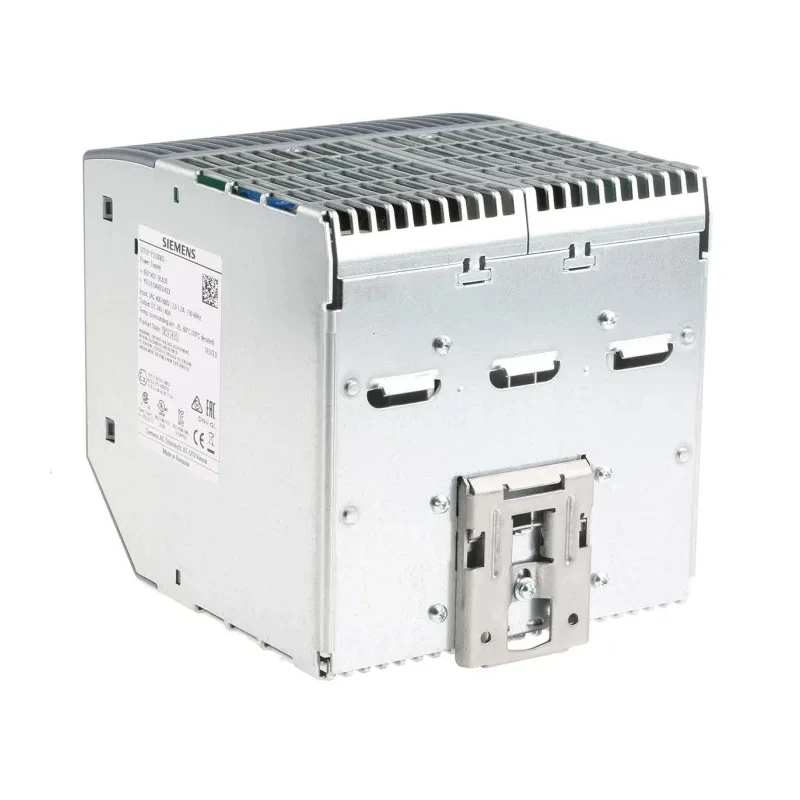

Siemens SITOP PSU300S Switched Mode DIN Rail Power Supply 24V DC, 40A Output, 960W Power, 550V AC Input PSU300S

Siemens PSU300S DIN Rail Power Supply is a switched mode device designed for industrial power distribution systems. It accepts a 3-phase AC input voltage ranging from 340 to 550V and converts it to a stable 24V DC output at 40A, delivering 960W of power.

The unit is compact with dimensions of 150mm width, 150mm depth, and 145mm height, making it ideal for streamlined DIN rail mounting in control panels and automation setups.

It boasts high efficiency at 91.5%, which reduces heat dissipation and improves energy utilization. The IP20 rating allows use in controlled indoor environments, while the ATEX hazardous area certification ensures safe operation near flammable gases and combustible dust.

Operating temperature range extends from -25°C minimum to 70°C maximum, enabling reliability in various harsh industrial settings.

The output voltage can be finely adjusted from 24V to 28V to compensate for voltage drops over long cable runs. The power supply withstands brief functional overloads at 1.5 times its rated current, providing solid protection for connected equipment.

It integrates with buffer, DC UPS, redundancy, and selectivity modules to enhance 24V system availability and resilience. Compliance with multiple standards like CE, UL 508, CSA C22.2 No. 60950-1, and EN 61000 series certifies its suitability for global industrial installations.

Operates with an AC input voltage range from 340V to 550V. Features a high efficiency of 91.5% to minimize energy loss and heat generation. Designed for 3-phase electrical systems with IP20 protection rating. Certified for hazardous areas with ATEX approval for safe use around flammable gases and dust.

Compact dimensions of 150mm width, 150mm depth, and 145mm height for space-saving DIN rail installation. Wide operating temperature range from -25°C to 70°C suitable for harsh environments. Includes advanced overload protection with brief withstand of 1.5 times rated current.

Output voltage adjustable between 24V and 28V to compensate voltage drops. Compatible with buffer, DC UPS, redundancy, and selectivity modules for increased availability. Conforms to multiple international standards including CE, UL, CSA, EN, and cULus.

This Power Supply is broadly used in industrial automation, manufacturing plants, electrical panels, and process control systems to provide reliable DC voltage powering critical electronics. Its robust construction and certifications make it suitable for demanding environments including hazardous locations requiring ATEX compliance.
