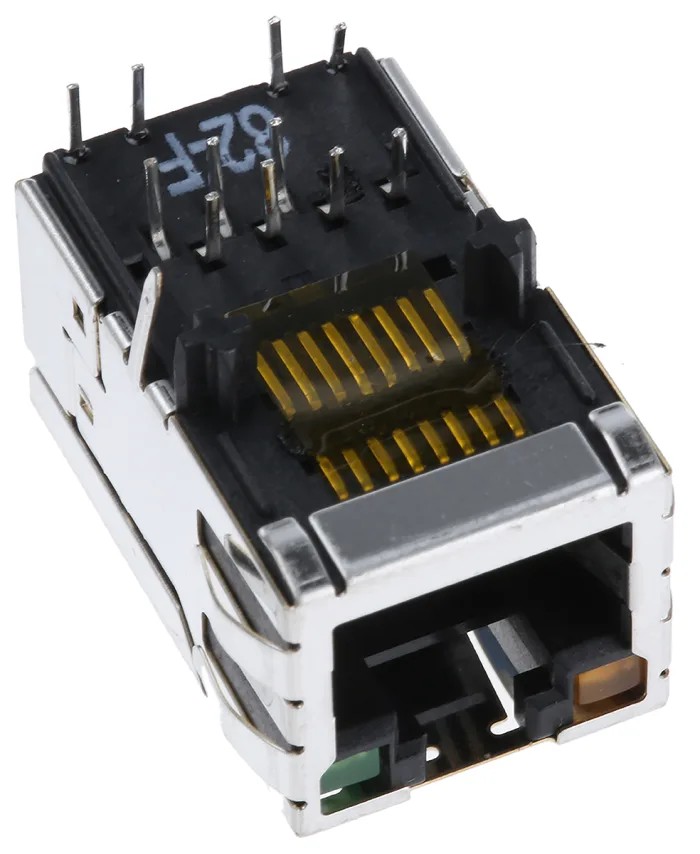

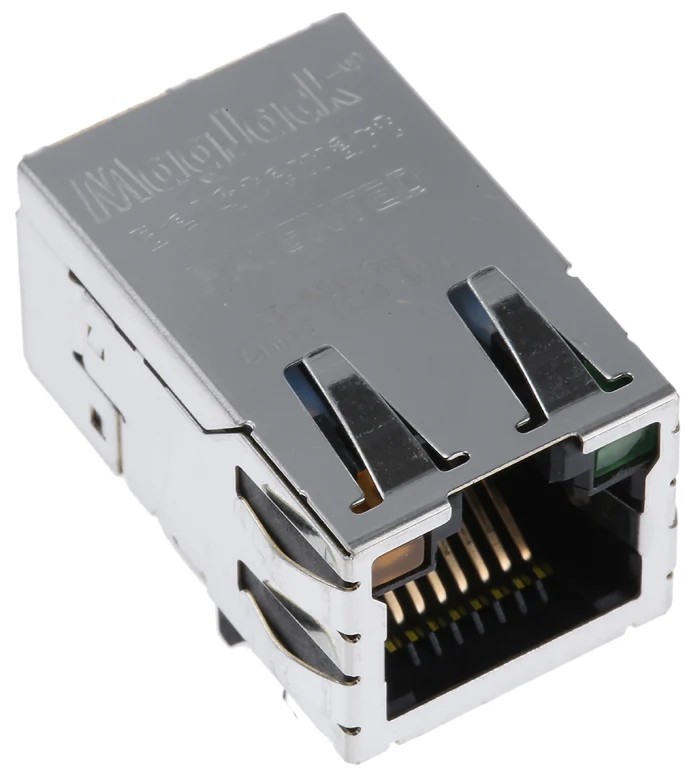

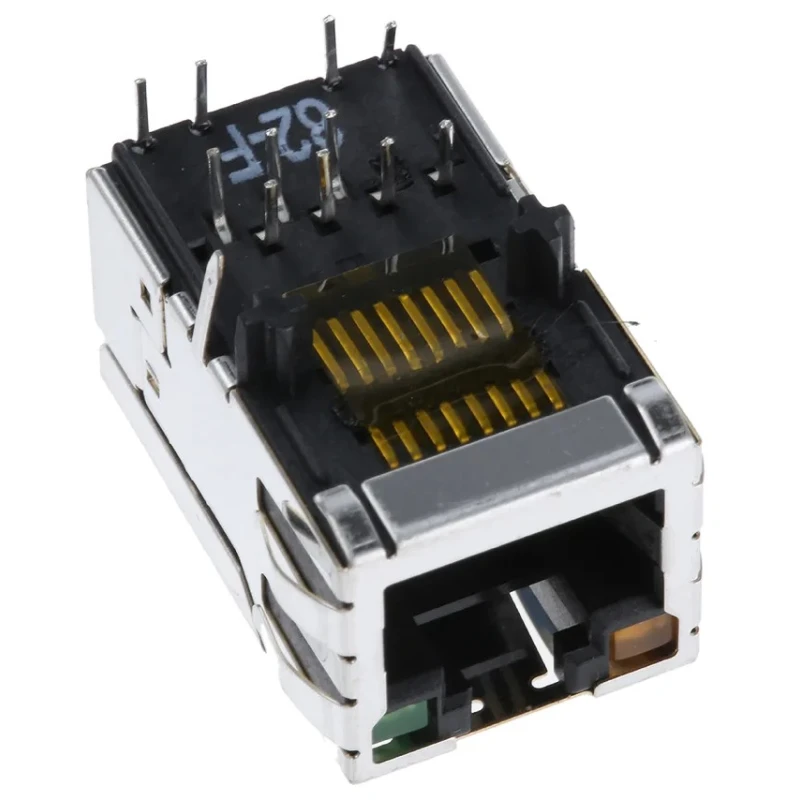

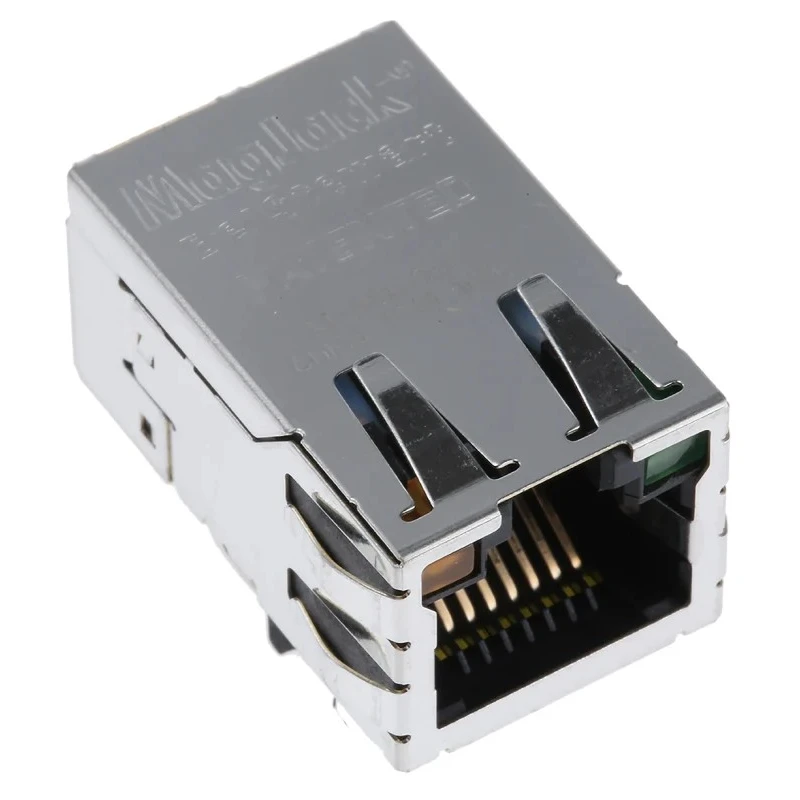

Bel-Stewart MagJack Series RJ45 Connector Female, Through Hole STP Shield Straight 1 Port 8 Way

Bel-Stewart SI-50158-F is a high-quality MagJack Series RJ45 Connector featuring a female modular jack design with through-hole mounting. This Ethernet connector provides a straight orientation with shielding using STP technology for robust signal isolation and EMI suppression. It includes a single port with 8 ways suitable for networking equipment and embedded telecommunications devices.

The connector operates reliably within a temperature range of 0°C to 70°C, making it suitable for industrial and commercial applications requiring stable performance under varied environmental conditions. The contact material is copper alloy with gold plating to ensure conductivity and corrosion resistance over extended use.

The compact dimensions (25.4mm depth, 17.98mm width, and 15.21mm length) optimize PCB space utilization. Featuring an LED indicator, it supports monitoring and diagnostics for network status. This MagJack Series product integrates both the connector and magnetics, reducing the number of discrete components needed on the printed circuit board by more than 50% per RJ port, facilitating efficient PCB layout and assembly.

It is designed for a through-hole solder termination type, ensuring a secure electrical and mechanical connection. The product carries no hazardous area certification but meets typical electronic component standards required in network connector applications.

This RJ45 connector is intended for industrial, telecommunications, networking hardware, and electronic component manufacturing applications. The MagJack series is recognized for its integrated design combining connectors and magnetics for space savings and EMI reduction.

The sturdy construction and reliable materials make it suitable for demanding operational environments. With its single port and 8 ways modular jack design, it is adaptable for a variety of Ethernet networking uses. Easy PCB integration through through-hole mount and solder termination supports robust device assembly.
